Commercial / Industrial Reactive 3 phase energy meter , KWH Meters with LCD display

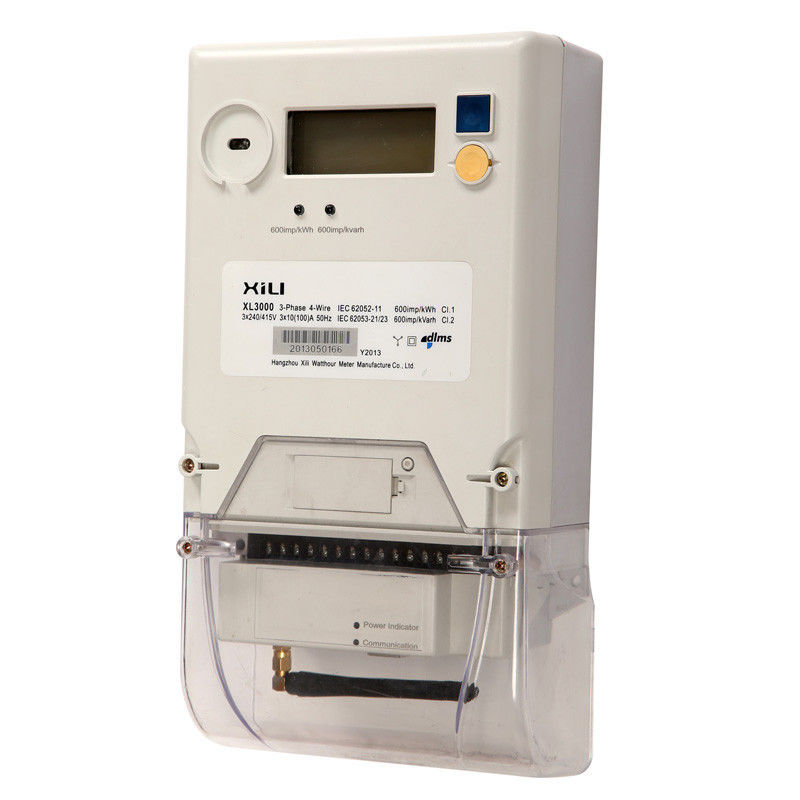

Large Image :  Commercial / Industrial Reactive 3 phase energy meter , KWH Meters with LCD display

Product Details:

Place of Origin: China
Brand Name: Xili
Certification: IEC, MID
Model Number: XLE34 Type 110

Payment & Shipping Terms:

Minimum Order Quantity: 500 PCS
Price: Negotiation
Packaging Details: Export carton
Delivery Time: 50 days
Payment Terms: L/C
Supply Ability: 2 million per year
Detailed Product Description
High Light:

three phase electricity meter

,

three phase kwh meter





Commercial / Industrial Reactive 3 phase energy meter , KWH Meters with LCD display





Quick Detail:




• 3-phase, 4-wire network types
• 3x220/380V and 3x230/400V, 50 or 60Hz
• In 5A to Imax 100A direct connection
• Class 1 or 2 (IEC), Class A or B (MID) active accuracy
• Class 2 or 3 (IEC), Class A or B (MID) reactive accuracy
• 8 digits LCD Energy Register







Description:




The XLE34 Type110 is a poly-phase meter with reactive energy measurement for industrial and commercial applications. It can be used for single rate billing for either Symmetrical (BS, UTE) or asymmetrical (DIN) connection standards. Proven measurement technology and top quality manufacturing processes guarantee accuracy and reliability for its entire lifespan, so the meter is supplied closed and no inspection is necessar y.




Applications:



Three-phase direct or indirect connected 3 wires or 4 wires energy meter for commercial & Industrial applications.






Specifications:




Type

Three-phase direct or indirect connected energy meter

Reference voltage (Un)

3 x 230/400 Volts AC (other voltages available on request)

Reference Frequency (Fr)

50 Hz or 60 Hz

Extended Operating voltage range

80%-115% Un

Basic Current (Ib)

5A, 10A

Maximum Current (Imax)

Up to 100A

Short-circuit ≤ 10 ms

30 Imax

Measuring Accuracy

Class 1

Starting current

0.4% Ib

Burden

≤10VA,1.8W

Protective Class

Class II (double insulated) IEC 62052-11

Burden

≤10VA,1.8W

Operation temperature rage

-20℃~+55℃

Storage temperature rage

-25℃~+60℃

Life span

10 years

Reference standard

IEC 62052-11; IEC 62053-21

Dimension

186.25x126x56mm






Competitive Advantage:





Features



• 3-phase, 4-wire network types
• Class 1 or 2 (IEC), Class A or B (MID) active accuracy
• Class 2 or 3 (IEC), Class A or B (MID) reactive accuracy
• 3x220/380V and 3x230/400V, 50 or 60Hz
• In 5A to Imax 100A direct connection
• Class 1 or 2 (IEC), Class A or B (MID) accuracy
• 8 digits LCD Energy Register





User Benefits





• Compact, extremely low weight
• Clearly structured LCD
• SO pulse output programmable for energy pulses or as serial data output for integration in a data collection or load management system
• Long service lifetime without inspection
