RGB TFT LCD panels

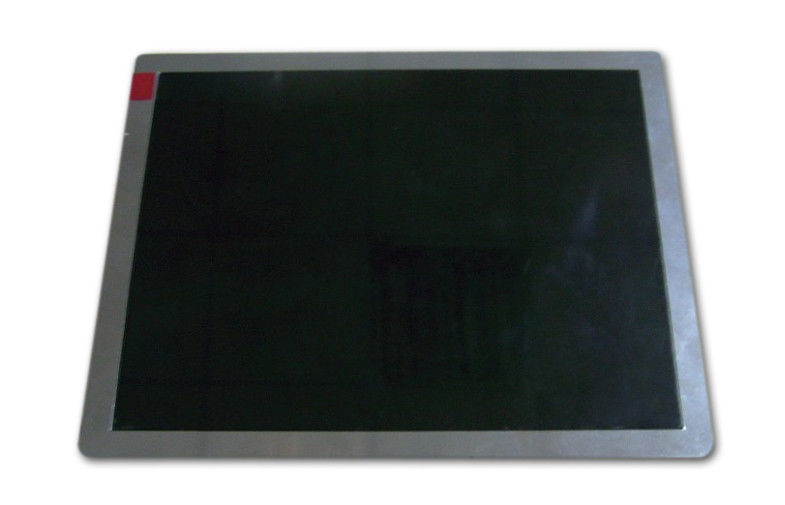

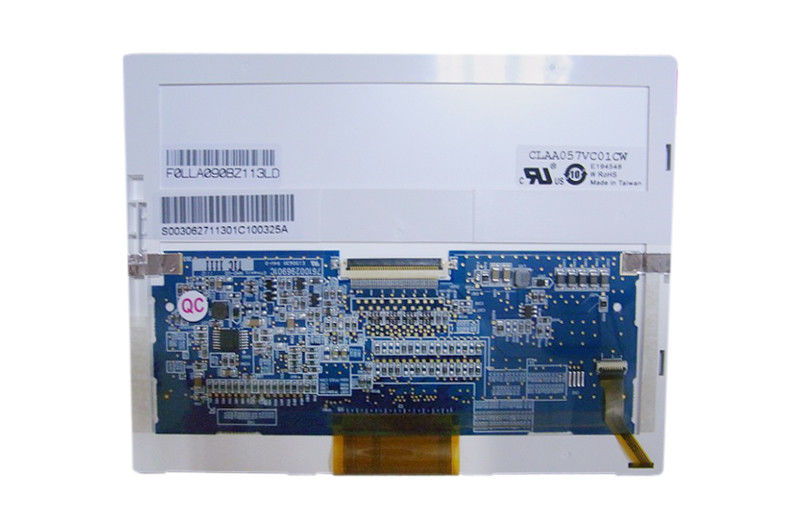

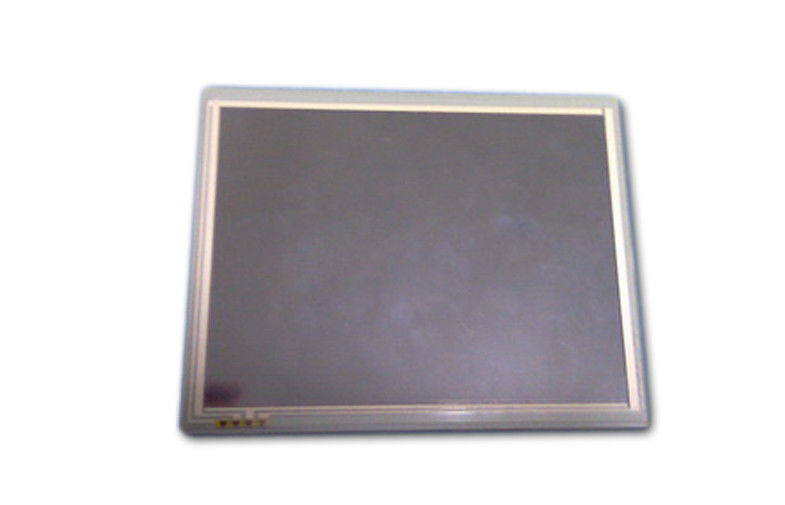

Large Image :  RGB TFT LCD panels

Product Details:

Place of Origin: TaiWai
Brand Name: CPT
Certification: CE ,ROHS
Model Number: CLAA057VC01 CW

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: Get the latest price
Packaging Details: Original packing
Delivery Time: 2-3 weeks
Payment Terms: T/T in advace .western union
Supply Ability: 200,000pcs/month
Detailed Product Description
Brand Name: AUO Application: Visual Doorbell, Digital Camera, Tablet Pc, DVD Player
Backlight: LED Brightness: 220nits
Color Pixel Arrangement: RGB Vertical Stripe Interface: TTL
Lcd Size: 5.7 Product Name: LCD Panel
High Light:

tft lcd display module

,

small lcd module





Quick Detail:



1. Lcd size:5.7”

2. Resolution: 640×3(H)×480(V)

3. Brightness: 220nits

4. Weight: 110g

5. Interface:TTL

6. Backlight:LED





Applications:



industrial control and car application lcd panel.besides,we have different size lcd panel apply to different fileds. such as tablet pc ,health care, Digital video cameras, digital cameras, portable DVD player, visual doorbell,.





Specifications:



Item

Specification

Display Area (mm)

116.16(H) × 87.12(V)

Resolution

640(H) × 3(RGB) × 480(V)

Pixel Pitch (mm)

0.1815(H) × 0.1815(V)

Pixel Arrangement

R,G,B vertical stripe

Display Mode

Normally White

Number of Color

262K

Viewing Direction

6 o’clock

Response Time (Tr+Tf)

30ms(typ)

Contrast Ratio

300:01:00

Luminance (cd/㎡)

220nit(typ)

NTSC

50%(typ)

Viewing Angle

140 degree (Horizontal),100 degree(Vertical)

Electrical Interface

TTL

Power Consumption (W)

1.4W(typ)

Outline Dimension(mm)

127(W) × 100(H) × 6.6(D)

Module Weight(g)

110g(typ)





Competitive Advantage:



+ we are the agent of AUO/CPT/Innolux in ShenZhen China
+ Secure Ordering
+ Delivery Date Guarantee
+ 100% Low Price Guaranteed

HK SEBO Electronics Co., Ltd. was founded in 2007. Our main products are all kinds of lcd panels. As the agent of AUO/CPT/Innolux,in Shenzhen, China, we have supplied our lcd panels to many lcd monitor, lcd TV, notebook pc, digital photo frame, DVD player, industrial display and car display factories from at home and abroad

With the advantage of our lcd panels, we have been engaged in the R&D of led backlight for lcd panel since the year of 2010 to satisfy customer;s different demand of lcd panel's brightness.
