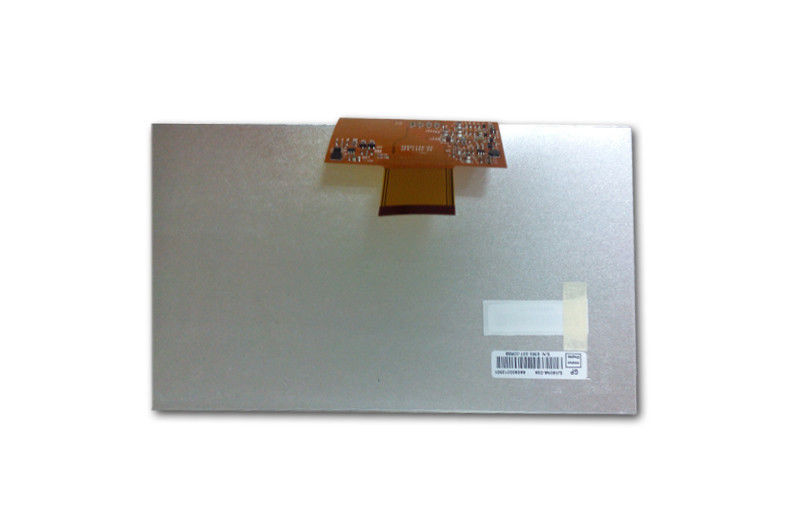

Wide 450nits LCD Panel / LCD Screen For Exhibition CLAA090LB01CW 9 Inch

Large Image :  Wide 450nits LCD Panel / LCD Screen For Exhibition CLAA090LB01CW 9 Inch

Product Details:

Place of Origin: TaiWai
Brand Name: CPT
Certification: CE ,ROHS
Model Number: CLAA090LB01CW

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: Get the latest price
Packaging Details: Original packing
Delivery Time: 2-3 weeks
Payment Terms: T/T in advace .western union
Supply Ability: 200,000pcs/month
Detailed Product Description
Lcd Size: 9 Application: Visual Doorbell, Digital Camera, Tablet Pc, DVD Player
Backlight: CCFL Brand Name: CPT
Brightness: 450nits Color Pixel Arrangement: RGB Vertical Stripe
Interface: TTL Product Name: LCD Panel, LCD Screen
High Light:

industrial lcd displays

,

high resolution LCD panel





Wide 450nits LCD Panel / LCD Screen For Exhibition CLAA090LB01CW 9 Inch




Quick Detail:


1. Lcd size:9"
2. Resolution: 800(H) × 3(RGB)× 480(V)
3. Brightness:450nits
4. Weight: 285g
5. Interface TTL
6. Backlight:CCFL





Applications:


industrial control and car application lcd panel.besides,we have different size lcd panel apply to different fileds. such as tablet pc ,health care, Digital video cameras, digital cameras, portable DVD player, visual doorbell,.






Specifications:



ITEM

Specifications

Display Area (mm)

198 (H) × 112.08 (V)

Number of Pixels

800(H) × 3(RGB)× 480(V)

Pixel Pitch (mm)

0.2475 (H) × 0.2335 (V)

Color Pixel Arrangement

RGB vertical stripe

Display Mode

Normally white,TN

Number of color

16.7M

Viewing Direction

6 o'clock

Response Time (Tr+Tf)

25 ms

Viewing Angle (CR≧10)

140/120

Electrical Interface

TTL

Power Consumption (W)

4.8W (Typ.)

Outline Dimension (mm)

210.7(W) × 126.4(H) × 7.2(D)

module weight (g)

285g (typ)

Backlight

CCFL

Surface Treatment

Anti-Glare,Surface hardness: 3H





Competitive Advantage:



+ we are the agent of AUO/CPT/Innolux in ShenZhen China

+ Secure Ordering

+ Delivery Date Guarantee

+ 100% Low Price Guaranteed

HK SEBO Electronics Co., Ltd. was founded in 2007. Our main products are all kinds of lcd panels. As the agent of AUO/CPT/Innolux,in Shenzhen, China, we have supplied our lcd panels to many lcd monitor, lcd TV, notebook pc, digital photo frame, DVD player, industrial display and car display factories from at home and abroad

With the advantage of our lcd panels, we have been engaged in the R&D of led backlight for lcd panel since the year of 2010 to satisfy customer;s different demand of lcd panel's brightness.
