Wifi 22 Inch Touch Screen Transparent LCD Display TFT for Museum Craft

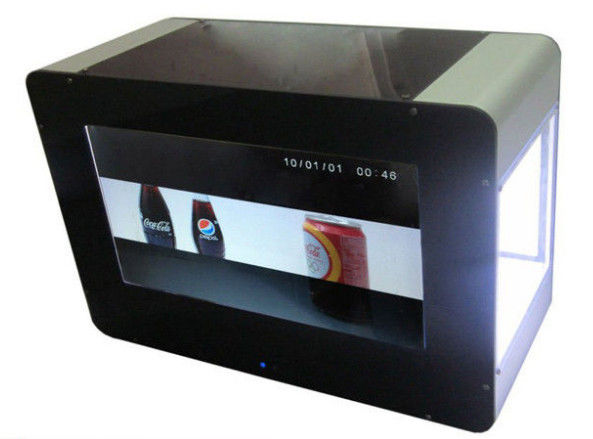

Large Image :  Wifi 22 Inch Touch Screen Transparent LCD Display TFT for Museum Craft

Product Details:

Place of Origin: china
Brand Name: sumward
Certification: ce fcc rohs emc
Model Number: SMW22090TTNB

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: negotiation
Packaging Details: neutro packing
Supply Ability: 3000pcs
Detailed Product Description
High Light:

transparent digital signage

,

transparent lcd screen

Wifi 22 Inch Touch Screen Transparent LCD Display TFT for Museum Craft

Detailed Product Description
Product Name: LCD Digital Signage Display Application: Indoor
Size Of Panel: 22 Inch Resolution: 1680X1050
Brightness: 300cm/d Feature: TFT, Touch Screen Kiosk
Standard: CE/ROHS/FCC/SGS Type: Floor Standing
Color: Silvery, White, Black, Golden, Optional OS: Win7 / 8



Specifications:


Technical Parameter for
22Inch LCD Panel


Panel Size

22 inch TFT LCD

Aspect Ratio

16:9

Active Area

474.8(W) * 297.1 (H)

Visual angle

Wide viewing angel

Max. Resolution

1680x1050

Dot Pitch

 0.3300H) x 0.3300 (W)mm

Number of Color

16.7M

Brightness

300cd/m2

Contrast Ratio

4000:1

Responsive Time

6ms

Panel Life

above 60000 hours

Touch Panel



Touch technology

Two point, multi points touch

Light transmittance

100%

Physical resolution

1000x1000

Touch media

Finger/touch pen opaque objects

Response time

≤10ms

Click life time

≥60 M times

power

1W

Max current

<350 MA

Storage Medium

Flash memory card, SD Card

2gb to 36gb for the capacity



Support Ad files


Video formats

MP4(AVI:DIVX/XVID),
MPG2(DVD:VOB/MPG2),
MPEG1 (VCD: DAT/MPG1)

Audio formats

MP3

Photo formats

JPG

OSD Language

English, Chinese, French, German, Italian, Spanish,Arabic

Audio output

stereo L/R, 5W*2, 8Ω

Power supply

AC 110V - 240V, 50/60HZ

Storage Temperature

 -7 to 65 Celsius degree

Normal Working
Temperature

 -5 to 65 Celsius degree

PC Specification


CPU

Intel G2020/2.9GHZ/ Dual core

RAM

DDR3.2GB

HDD

S-Atall 500GB/16MB/5400rpm

Graphics

Inter NM10Express

Chipset

INTEL 5400

Ports

5xUSB, 1xVGA, 1XLAN, 1XAUDIO-OUT,
1XMIC-IN, DVI, HDMI

Power consumption

30W

Operating system

Windows 8 / 7

Speaker

2*10W


Description:

The inside exhibit can be seen while the pictures or videos are displayed on LCD screen. To attract
attention on product brand with the combination of dynamic information and the actual product display.
sumward Transparent Video Showcase can be used in many applications: Jewelry, Gem Stone, Watch,
Wine bottle, Cosmetics, Perfume set, Digital Camera, IPad/Mac book, Hand bag, High heel, and Museum.
Lcd touch screen all in one PC kiosk made from original Samsung/LG screen.It integrates electronic
 is made of extra good quality metal material, which is painted by power-spray craft work.
2. Adopts high transparent tempered glass (5-6 mm ) as protection layer to prevent lcd/led panel being
broken  or distorted.
3. support video display customized LOGO, and support video to show in the irregular shape.
4. Imported brand full HD LCD panel, clear and bright picture quality, more lower power consumption.
5. With lockable door to avoid take away flash memory card and advertising playing program.
6.Color for metal outer frame is available with Black color, Shinning-silver color, Golden Color, cream-white color; Color Is Optional.
7. Brands of LCD screen for Samsung, LG, Chime, HSD, AU, Toshiba etc, A Class 335 standard, full new
and factory original packing screen.

Application:

Jewelry, Gem Stone, Watch, Wine bottle, Cosmetics, Perfume set, Digital Camera, IPad/Mac book, Hand
bag,High heel, and Museum Craft

Our competitive advantage:

 1. Quality Guaranteed, all of our display have to finish more than 48 hours aging test to guarantee A-class quality, year quality guaranteed.
2. Good after sales service,We always try our best to respond your inquiry fastest, which is really very helpful for solving your problem at any time, our engineer is 12hrs/day on line to help you if you meet any problem, we will track the entire transport process and report to you timely, till receive all the products which you rchased from our company.
3. Best Lead time: 3-5 working time for sample, about 15 days for bulk order.
4. OEM/ODM service. We have engineers, professional team for your OEM/ODM service requirements.
