Product Details:
Payment & Shipping Terms:
|
| High Light: | tft lcd display module,small lcd module |
||
|---|---|---|---|

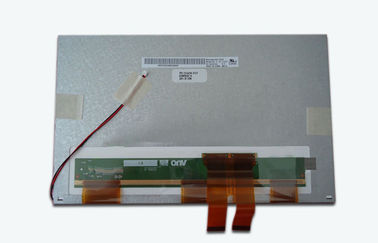

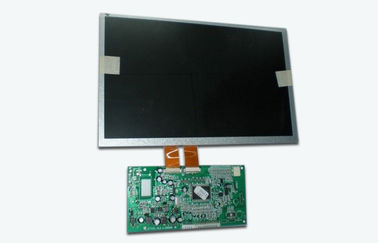

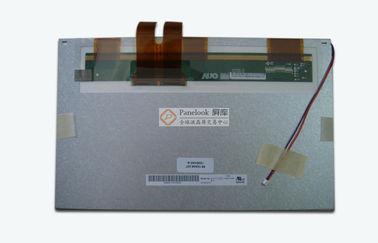

AUO 10.1" tft industrial 800x480 lcd module A101VW01 V3
Quick Detail:
1. Lcd size:10.1"
2. Resolution: 800*480
3. Brightness:250nits
4. Weight: 315
5. Backlight:LED
Applications:
industrial control and car application lcd panel.besides,we have different size lcd panel apply to different fileds. such as tablet pc ,health care, Digital video cameras, digital cameras, portable DVD player, visual doorbell,.
Specifications:
Items | speciation |
Screen Diagonal(inch) | 10.1" |
resolution | 800x3(RGB) x 480 |
Active Area | 219.6(H) x 131.76(V) |
Pixel Pitch(mm) | 0.2745x 0.2745 |
Pixel Arrangement | R.G.B. Vertical Stripe |
contrast ratio | 400:01:00 |
brightness | 250nits |
backlight | LED |
viewing angle | 45/65/65/65 |
Display Mode | TN, Normally White |
Nominal Input Voltage VDD(volt) | 3.3 typ. |
Weight(gram) | 315 |
Physical Size(mm) | 235(W) x 145.9(H) x 5.4(D) (typ.) |
Electrical Interface | CMOS I/F |
Surface Treatment | Anti-Glare, Hardness 3H |
support Color | 262K |
The most suitable view angle | 6’clock |
RoHS Compliance | RoHS Compliance |
Competitive Advantage:
+ we are the agent of AUO/CPT/Innolux in ShenZhen China
+ Secure Ordering
+ Delivery Date Guarantee
+ 100% Low Price Guaranteed
HK SEBO Electronics Co., Ltd. was founded in 2007. Our main products are all kinds of lcd panels. As the agent of AUO/CPT/Innolux,in Shenzhen, China, we have supplied our lcd panels to many lcd monitor, lcd TV, notebook pc, digital photo frame, DVD player, industrial display and car display factories from at home and abroad
With the advantage of our lcd panels, we have been engaged in the R&D of led backlight for lcd panel since the year of 2010 to satisfy customer;s different demand of lcd panel's brightness.
