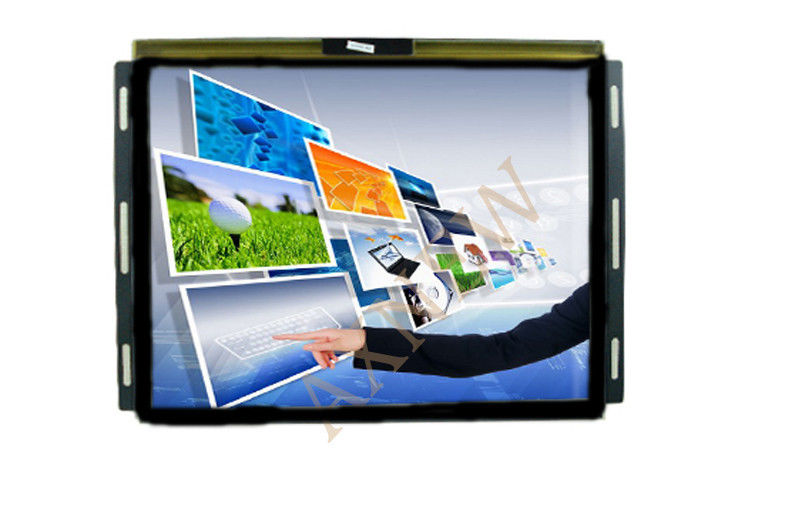

Vertical 15" 1024x768 Open Frame LCD Monitor VGA DVI Input
15’’ Projected capacitive touch screen LCD open frame monitor with VGA DVI input. Anti-vandal with high and exact control for high requested working environment.
Projected capacitive touch is new and popular touch technology for Medical industry , Automatic equipments, Advertising , vending embedded system, ATM application etc.
Quick Details:
Model: AXD-15OPEXT2-PRO
Screen Size:15’’
Screen format: 4:3
Display Resolution(pixel):1024x768
Contrast Ratio:600:1
Brightness:250cd/m^2
Storage temperature : -20℃~70℃
Input signal: VGA DVI
Power Input: DC 12V
Touch Type: Projected capacitive touch
Product status: Stock
Features and Advantages
1. New and Industrial A grade perfect panels with stable supply
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI interfaces ; touch screen options
6. 15 inch open frame Projected capacitive touch is new and popular touch technology for Medical industry , Automatic equipments etc
|
Display Specifications |
|
|
Display |
15" Color TFT Projected Capacitive touch Monitor |
|
Model Name |
AXD-15OPEXT2-PRO |
|
Active Display Area (mm) |
305.7(H)x229.7(V) |
|
Pixel Pitch (mm) |
0.297(H)x0.297(V) |
|
Resolution (Pixel) |
VGA (1024x768)6 bit + FRC |
|
Brightness (CD/m^2) |
350nits; 450 nits;1000nits Options |
|
Contrast Ratio |
700:1 |
|
Viewing Angle (CR >=10) |
160/140 |
|
Power consumption |
8.6 W typical, normal operation |
|
Touch Screen |
Projected Capacitive touch panel( USB Controller) |
|
OSD Control |
On the back side |
|

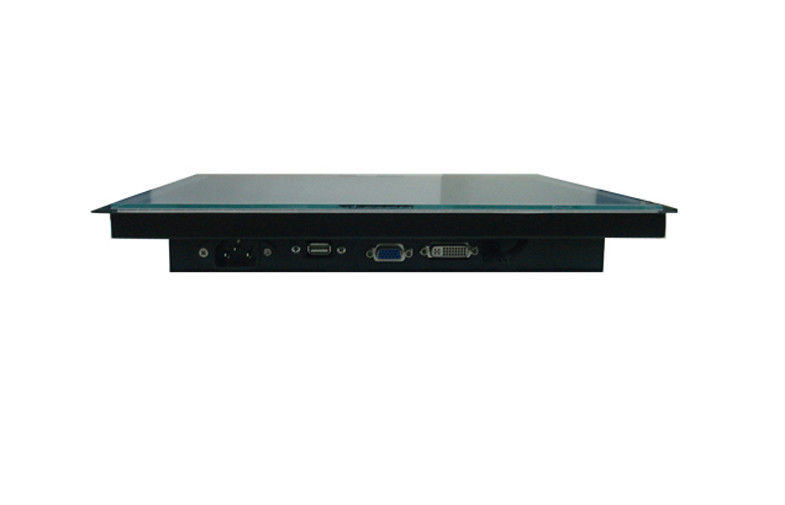

I/O Connectors |
1x12v,1XVGA,DVI-D(Optional) |
|
Power Input |
DC 12V,4A 48W |
|
Mechanical Specifications |
|
|
Construction |
Steel housing & black Color, anti-vandal |
|
Dimensions |
359.0x 270.0x46.3(mm) |
|
Mounting |
Embedded ,up and down; left-right fixing holes, vesa75x75;100x100 Wall Mounting Optional |
|
Power source |
AC 100~240V/ 12V DC |
|
Environment Specifications |
|
|
Operating Temperature |
0~50℃ |
|
Storage Temperature |
-20~60℃ |
|
Rating |
Facilitate installation of the demolition,solid portfolio |
|
Ordering Information |
15” projected capacitive touch monitor with VGA Input and power adapter |
