| Screen Size: | 8.0 Inch | Pixel: | 800X600 |
|---|---|---|---|
| Contrast Ratio: | 500:1 | Brightness: | 450nits |
| Input Signal: | VGA | Viewing Angles: | 150(H)/150(V) |
| Monitor Type: | Industrial LCD Display | ||
| High Light: | advertising lcd monitor,Industrial Tablet PC |
||

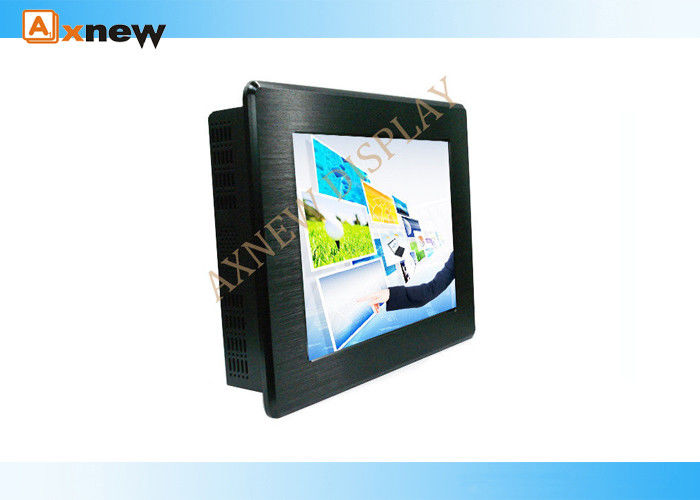

8.0 inch 4:3 format industrial LCD monitori with VGA input Aluminum front bezel with rugged frame design. 450nits for outdoors application, such as Automatic equipments, Gas station, advertising embedded system etc.
Quick Details:
Model: AXD-08OPI2
Screen Size:8.0’’
Screen format: 4:3
Display Resolution(pixel):800x600
Contrast Ratio:500:1
Brightness:450cd/m^2
Storage temperature : -10℃~80℃
Input signal: VGA
Power Input: AC100~240 V/DC 12V
Product status: Stock
Features and Advantages
1. New and Industrial A grade perfect panels with stable supply
2. industrial control board supports the displays working 24 hours
3. Professional and industrial hardware and parts to guarantee its working normally in rough environment, Aluminum Front Bezel with rugged housing
4. Industrial design to protect the LCD screen, mounting on the outdoor application
5. VGA interfaces ;No touch screen
Display Specifications |
|
Display | 8.0" Color TFT Industrial Monitor |
Model Name | AXD-08OPIP2 |
Active Display Area (mm) | 170.4(H)x127.8(V) |
Pixel Pitch (mm) | 0.213(H)x0.213(V) |
Resolution (Pixel) | SVGA (800X600) 262K/16.2M Color |
Brightness (CD/m^2) | 450cd/m^2 |
Contrast Ratio | 500:1 |
Viewing Angle (CR >=10) | 150/150 |
Power consumption | 3.3W typical, normal operation |
Touch Screen | Resistive;RS232/USB(Optional) |
OSD Control | On the back side |
I/O Connectors | 1x12v,1XVGA,DVI-D(Optional) |
Power Input | DC 12V,4A 48W |
Mechanical Specifications |
|
Construction | Aluminum front bezel &Black Color |
Dimensions | 210.0 x 147.4x 22.0 (mm) |
Mounting | Embedded ,Wall Mounting Optional |
Power source | AC 100~240V/ 12V DC |
Environment Specifications |
|
Operating Temperature | -20~80℃ |
Storage Temperature | -30~80℃ |
Rating | Facilitate installation of the demolition,solid portfolio |
Ordering Information | 8.4” IP Monitor with VGA input and power adapter |
Packaging & Delivery
Packing details | 1x 8.0 inch Industrial LCD display; |
Delivery terms | 7- working days for stock products after receiving payments; 15 working days for order production |
