Innolux LW700AT9008 7" AG TFT LCD Module , 500nits Anti Glare Raw LCD Panel

Certification
You always can give me the best plan ,and it lets my customer feel great,i hope we can have another chance to cooperation

—— Tim

I recently placed an order and I needed to update that order prior to shipment. The staff was responsive and courteous.

—— Mr.smith

Does your sourcing platform have a good reputation, the delivery time was very punctual, there was no case of poor stock, and we did not find cargo da

—— Mr. Carlos

I'm Online Chat Now

Innolux LW700AT9008 7" AG TFT LCD Module , 500nits Anti Glare Raw LCD Panel

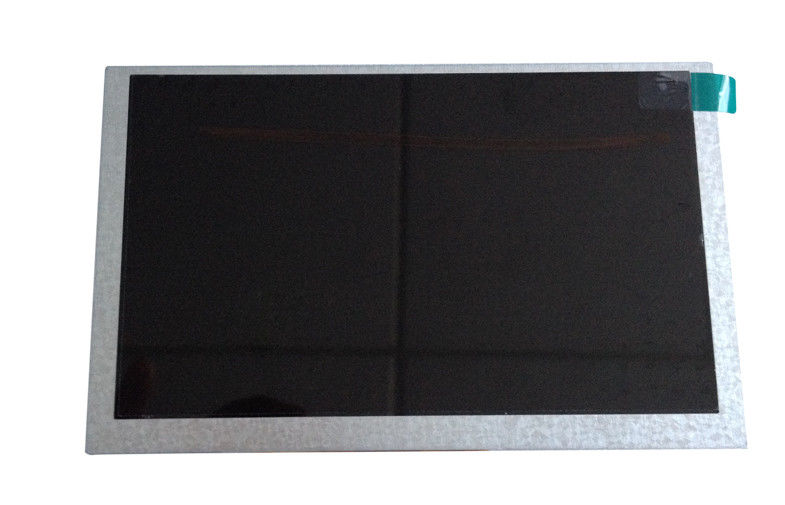

Large Image :  Innolux LW700AT9008 7" AG TFT LCD Module , 500nits Anti Glare Raw LCD Panel

Product Details:

Place of Origin: TaiWai
Brand Name: Innolux
Certification: CE ,ROHS
Model Number: LW700AT9008

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: Get the latest price
Packaging Details: Original packing
Delivery Time: 2-3 weeks
Payment Terms: T/T in advace .western union
Supply Ability: 200,000pcs/month
Detailed Product Description
Brand Name: Innolux Application: Visual Doorbell, Digital Camera, Tablet Pc, DVD Player
Backlight: LED Brightness: 500nits
Color Pixel Arrangement: RGB Vertical Stripe Interface: Digital
Lcd Size: 7 Product Name: LCD Panel
High Light:

lcd panel screen

,

small lcd module





Quick Detail:



1. Lcd size:7"

2. Resolution: 800 RGB x 480

3. Brightness: 500nits

4. Weight:125g

5. Backlight:LED





Applications:



industrial control and car application lcd panel.besides,we have different size lcd panel apply to different fileds. such as tablet pc ,health care, Digital video cameras, digital cameras, portable DVD player, visual doorbell,.





Specifications:



LCD size

7"

Resolution

800 RGB x 480

Color Pixel Arrangement

RGB vertical stripe

Display Mode

Normally white,TN

dot pitch

190.5 x 190.5

module size

165(W) x 104.44(H) x 5.2 (D)

active area

152.4x91.44

Response Time (Tr+Tf)

15ms

Brightness(cd/㎡)

500 nit(typ)

View Angle direction(Gray inversion)

6 o’clock

contrast ratio

700:01:00

 Interface

digital

module weight(g)

125

BL unit

LED

Surface Treatment

Anti-Glare





Competitive Advantage:



+ we are the agent of AUO/CPT/Innolux in ShenZhen China
+ Secure Ordering
+ Delivery Date Guarantee
+ 100% Low Price Guaranteed

HK SEBO Electronics Co., Ltd. was founded in 2007. Our main products are all kinds of lcd panels. As the agent of AUO/CPT/Innolux,in Shenzhen, China, we have supplied our lcd panels to many lcd monitor, lcd TV, notebook pc, digital photo frame, DVD player, industrial display and car display factories from at home and abroad

With the advantage of our lcd panels, we have been engaged in the R&D of led backlight for lcd panel since the year of 2010 to satisfy customer;s different demand of lcd panel's brightness.
