Product Details:
Payment & Shipping Terms:
|
| Lcd Size: | 7 | Application: | Visual Doorbell, Digital Camera, Tablet Pc, DVD Player |
|---|---|---|---|
| Backlight: | LED | Brand Name: | CPT |
| Brightness: | 300nits | Color Pixel Arrangement: | RGB Vertical Stripe |
| Interface: | TTL | Product Name: | LCD Panel |
| High Light: | industrial lcd displays,high resolution LCD panel |
||

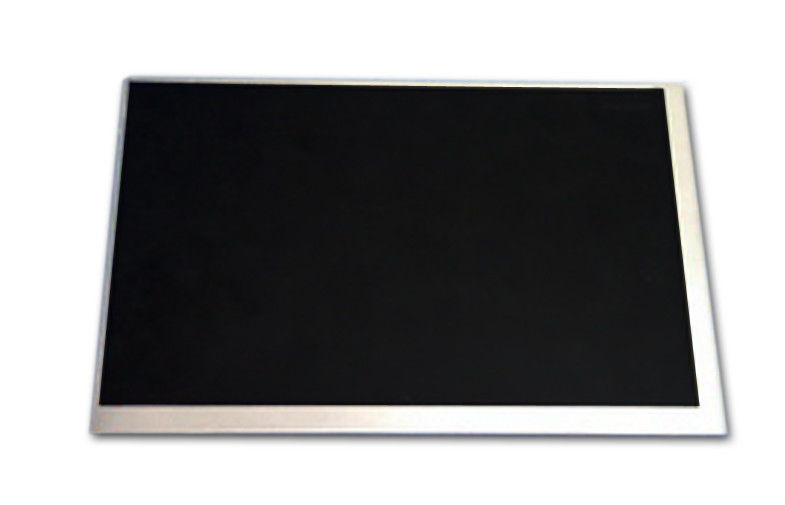

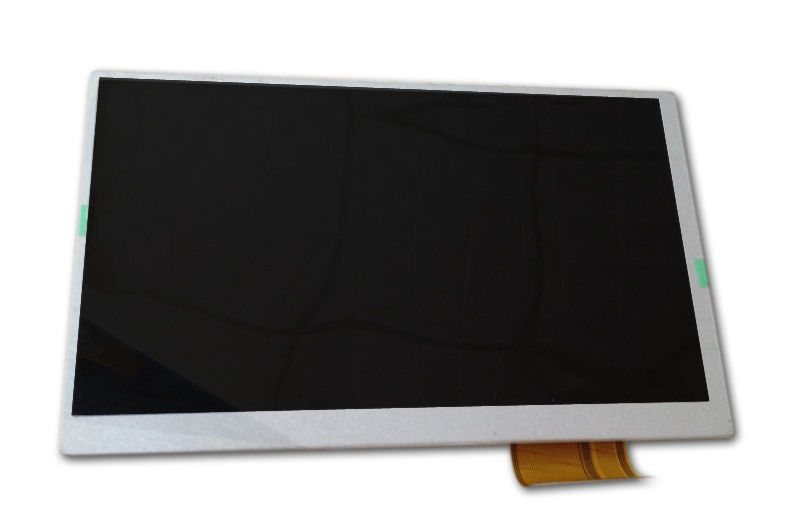

Original LCD Screen Display Panels / CPT LCD Panel 300nits 12 o´clock
Quick Detail:
1. Lcd size:7.0”
2. Resolution: 800(H)×3(RGB)×480(V)
3. Brightness:300nits
4. Weight: 140g
5. Interface TTL
6. Backlight:LED
Applications:
industrial control and car application lcd panel.besides,we have different size lcd panel apply to different fileds. such as tablet pc ,health care, Digital video cameras, digital cameras, portable DVD player, visual doorbell,.
Specifications:
|
Display Area (mm) |
152.4(W)×91.44(H) |
|
Number of Pixels |
800(H)×3(RGB)×480(V) |
|
Pixel Pitch (mm) |
0.1905(H)×0.1905(V) |
|
Color Pixel Arrangement |
RGB vertical stripe |
|
Display Mode |
Normally white |
|
Number of colors |
262,144 |
|
Viewing Direction |
12 o´clock |
|
Response Time (Tr+Tf) |
20ms |
|
Brightness(cd/m2) |
300nit(typ) |
|
NTSC ratio |
50% |
|
Viewing Angle(BL on,CR≧10) |
140 degree(H),110degree(V) |
|
Electrical Interface(data) |
TTL |
|
Power consumption |
2.5W(Typ) |
|
Outline Dimension(in mm) |
165(W)×104(H)×5.7(D) |
|
Weight(g) |
140g(Typ) |
|
BL unit |
LED |
|
Surface Treament |
Anti-Glare,Hardness:3H |
|
Touch Panel Type |
4 wire resistive |
Competitive Advantage:
+ we are the agent of AUO/CPT/Innolux in ShenZhen China
+ Secure Ordering
+ Delivery Date Guarantee
+ 100% Low Price Guaranteed
HK SEBO Electronics Co., Ltd. was founded in 2007. Our main products are all kinds of lcd panels. As the agent of AUO/CPT/Innolux,in Shenzhen, China, we have supplied our lcd panels to many lcd monitor, lcd TV, notebook pc, digital photo frame, DVD player, industrial display and car display factories from at home and abroad
With the advantage of our lcd panels, we have been engaged in the R&D of led backlight for lcd panel since the year of 2010 to satisfy customer;s different demand of lcd panel's brightness.
