| Model: | STA156WT-01 | Size (Inch): | 15.6" |
|---|---|---|---|
| Resolution: | 1366×RGB×768 | Pixel Spacing: | 0.1905mm×0.0635mm （H×V） |
| Color: | 65536 Colors （16 Bit） | Viewing Area: | 344.2mm×193.5mm |
| High Light: | replacement lcd screen,serial lcd display module |
||
Touch controller Industrial LCD Display rs232 high resolution 15.6 inch
Product Characteristics
Application Method ----- Only Three Things
Step One: Design the Graphical User Interface (GUI) by art designer.
Step Two: Connect TFT-LCD Module with User’s equipment by RS232 or TTL interface directly.
(Don’t need any driver program.)
Step Three: Write the control program to any MCU to work the TFT-LCD Module via the Commands.
Software Description
We offer you below three simple softwares to work with TFT-LCD Module.
1. Terminal Assistant: To upload pictures and files into TFT-LCD Module, and demonstrate the commands.
2. Touch Control Software: To create the control file.
3. Font Software: To create the font file.
All Models
|
Main Size of TFT LCD Module |
|
|
Size |
Resolution |
|
3.5” |
320×RGB×240 |
|
4.3’’ |
480×RGB×272 |
|
5.0” |
640×RGB×480 |
|
5.6’’ |
640×RGB×480 |
|
5.7” |
640×RGB×480 |
|
6.5’’ |
640×RGB×480 |
|
7.0’’ |
800×RGB×480 |
|
8.0’’ |
800×RGB×600 |
|
8.4’’ |
800×RGB×600 |
|
10.2’’ |
1024×RGB×600 |
|
10.4’’ |
800×RGB×600 |
|
12.1’’ |
1024×RGB×768 |
|
15.0’’ |
1024×RGB×768 |
|
15.6’’ |
1366×RGB×768 |
|
18.5” |
1366×RGB×768 |

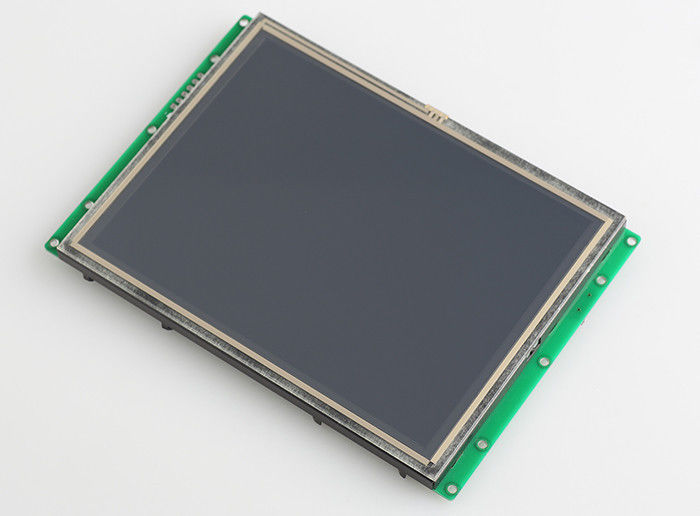

Product pictures
