Product Details:
Payment & Shipping Terms:
|
| High Light: | 12.1 rugged mount lcd monitor,12 inch panel mount lcd screen,12'' lcd display |
||
|---|---|---|---|
Display Specifications | |

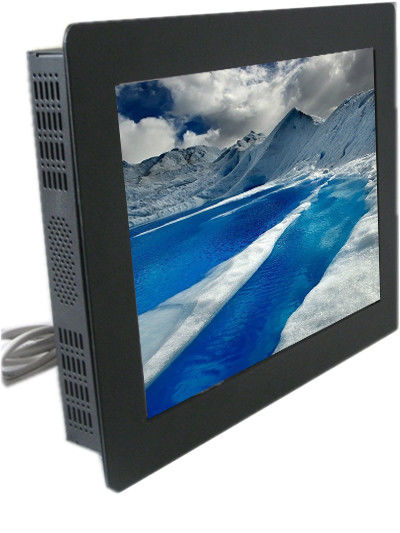

Display | 12.1" Industrial panel mount lcd Monitor |
Model Name | AXD-12OPWA01-V1 |
Active Display Area (mm) | 247 (H)x185.5(V) |
Pixel Pitch (mm) | 0.3075(H)x0.3075(V) |
Resolution (Pixel) | 800X 600 ;16.2M Color |
Brightness (CD/m^2) | 400cd/m^2 |
Contrast Ratio | 500:1 |
Viewing Angle (CR >=10) | 160/140 |
Power consumption | 9.3W typical, normal operation |
Touch Screen | Resistive,capacitive ;IR Touch ;RS232/USB(Optional) |
I/O Connectors | 1x12v,1XVGA,1xDVI |
Power Input | DC 12V,4A 48W |
Mechanical Specifications | |
Construction | Steel housing &black color, vesa and rear holes |
Dimensions | 317x 255.6x 52.0(mm) |
Mounting | Embedded ,edge locking,75x75 or 100x100 vesa mounting |
Power source | AC 100~240V/ 12V DC |
Environment Specifications | |
Operating Temperature | -20~80℃ |
Storage Temperature | -30~80℃ |
Rating | Facilitate installation of the demolition,solid portfolio |
Ordering Information | 12.1” rugged mount lcd Monitor with VGA input and power adapter |
