transparent lcd screen,
digital advertising signage
|Optional Size:||12.1-65 Inch||Box Material:||Metal Case + Tempered Glass Panel Layer|
|Color:||White, Black, Can Be Customized||Network:||Wifi, 3G, Ethernet, Optional|
|Transparent LCD Panel Brand:||LG, SAMSUNG, AUO||Memory Card:||Support SD, CF, USB|
|Certification:||CE, ROHS, FCC|
Technical Parameter for
24" TFT LCD
Wide viewing angel
1920 X 1080
0.36375mm(H) x 0.36375mm(V)
Number of Color
above 60000 hours
Two point, multi points touch
Finger/touch pen opaque objects
Click life time
≥60 M times
Flash memory card, SD Card
2gb to 36gb for the capacity
English, Chinese, French, German, Italian, Spanish,Arabic
stereo L/R, 5W*2, 8Ω
AC 110V - 240V, 50/60HZ
-7 to 65 Celsius degree
Normal Working Temperature
-5 to 65 Celsius degree
A. Transparent, its unique transparent display technology is a new trend in the world.
B. Super-slim, more convenient than ordinary LCD screen.
C. Power saving, transparent display save more power than ordinary LCD screen.
2, Panel's Superiority:
A. Originality,sci-fi feel, it is a new generation of intelligent digital signage .
B. Simplify procedures, improve production efficiency, saving cost.
C. Improve imaging quality on all level, avoiding image brightness and definition lost because it shows image directly without using Law of Reflection.
D. Simple, fashion, elegant overall style.
E. Interconnect network and multimedia technology, publish information in media form,The inside exhibit can be seen while picture or video content is displayed. It will strength customers’ experience on product brand with the combination of dynamic information and the actual product display.
F. Open Interface ,able to build-in many apps.Achieve more interactive features with customers by recording media play time,play times and play range, bring new opportunity to building new band.
G. Power saving, power consumption decreased 90% than ordinary LCD

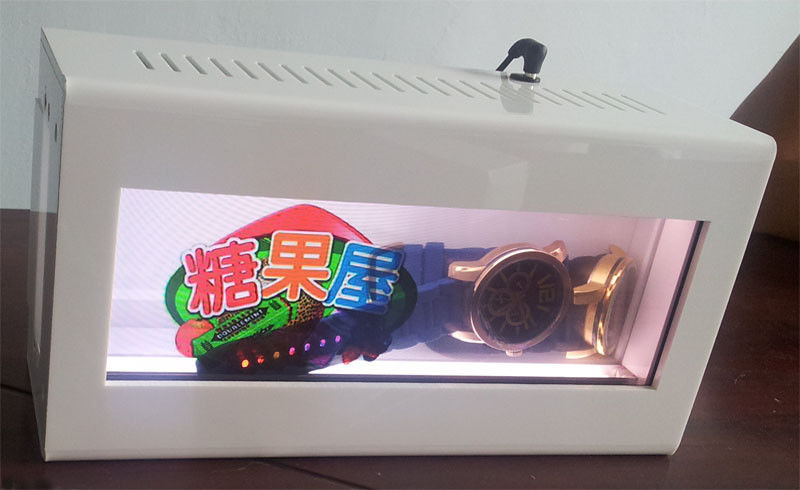

3, transparent LCD Ad player
... The inside exhibit can be seen while picture or video content is displayed. It will strength customers’ experience on product brand with the combination of dynamic information and the actual product display.
... The transparent effect could be turned on/off according to how you name the files to fit different demands
... Display the commercials while you can see the goods in the show case through the transparent lcd screen when power on
B,AD player Specifications
Case design: White/Blace/Silver Acrylic(metal)
LCD panel : 10.2” --65" transparent panel
Backlight : LED
Speaker : 2Wx2--5W*2--10W*2
Power consume : >20W--300W
Power Input : DC 12V-2A/AC 240V
Memory card : Support
Card : CF,SD,U disk,
Update file : By U disk
Playing file : MPEG1,MPEG2,MPEG4,H264,RM,RMVB,MJPEG, AVI
loop playback : Support
Loop playback settings : Single/ Whole Loop playback
Manual Languge : Chinese/English
Scroll Text : Support
C,Special Function:you can choose the file that need transparent display
.... Name display file as 00.XXX, 01.XXX, 02.XXX …99.XXX
(Please note XXX could be deleted or it could be any English letters and there is no limit on digit)
.... Display sequence is depend on number size (from small to large)
.... If need transparent effect, please add “CLEAR” in the file name, such as 00.CLEAR.XXX.
.... please take bellowed example for a reference
(Please note the machine could auto loop the transparent file and non-transparent file together)
Watch Shop,Cosmetics Shop,jewelry shop,Restroom etc..
