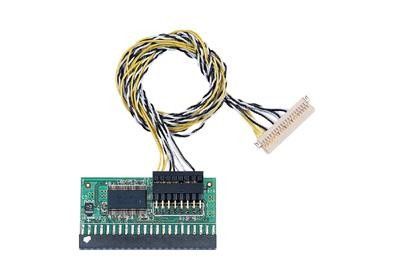

LVDS Cables Kit For TFT LCD Panel LVDS Connector

: Large Image : LVDS Cables Kit For TFT LCD Panel LVDS Connector

Product Details:

Place of Origin:	China
Brand Name:	E-like/Euroway
Certification:	ISO9001,ISO14001
Model Number:	LV0006

Contact Now

Detailed Product Description

High Light:	2 Port Usb Power Adaptors For Charging Navigation , 30P LCD Wire Harnessing Wire Harness Manufacturers

High Light:

2 Port Usb Power Adaptors For Charging Navigation

30P LCD Wire Harnessing Wire Harness Manufacturers

LVDS Cables Kit For TFT LCD Panel LVDS Connector

LVDS Converter Kit for TFT LCD Panel
Specifications:
Applications LVDS Converter Kit that connects Vortex86 SBC to the
AUO LVDS TFT LCD Panel Display (default) or other brandname/models of LVD...

LVDS Converter Kit for TFT LCD Panel
Specifications:

Applications
LVDS Converter Kit that connects Vortex86 SBC to the AUO LVDS TFT LCD Panel Display (default) or other brandname/models of LVDS LCD Panels.
Corresponding BIOS is available for 8.4", 10.4", 13.3" panels or any other brandname/models of LVDS LCD Panels

Chipset
T.I. SN75LVDS84 Flatlink Transmitters
21:3 Data Channel Compression at up to 163 Million Bytes per second Throughput
Suited for SVGA, XGA or SXGA data transmission from controller to display with very low EMI
21 data channels plus clock in low-voltage TTL and 3 data channels plus clock out low-voltage differential
Operates from a single 3.3 volt supply and 250mW(Typ)5-V tolerant data inputs

Cables
2.0mm, 16-pin box connector to 20-pin Hirose connector x 1. Length in 30cm

Dimensions
44mm x 21mm (1.73" x 0.82")

Weight
30g
