Home ProductsAUO LCD Panel

Long backlight life AUO LCD panel G170EG01 V1 , Anti glare lcd screen

Certification
You always can give me the best plan ,and it lets my customer feel great,i hope we can have another chance to cooperation

—— Tim

I recently placed an order and I needed to update that order prior to shipment. The staff was responsive and courteous.

—— Mr.smith

Does your sourcing platform have a good reputation, the delivery time was very punctual, there was no case of poor stock, and we did not find cargo da

—— Mr. Carlos

I'm Online Chat Now

Long backlight life AUO LCD panel G170EG01 V1 , Anti glare lcd screen

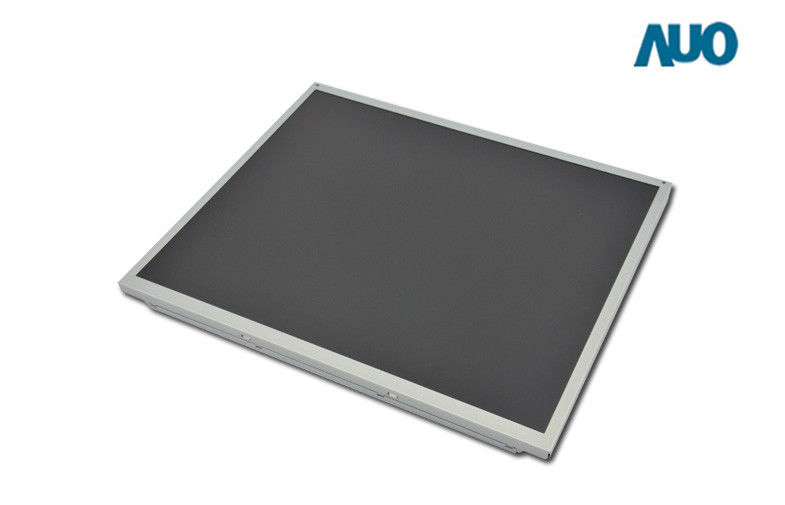

Large Image :  Long backlight life AUO LCD panel G170EG01 V1 , Anti glare lcd screen

Product Details:

Place of Origin: Taiwan
Brand Name: AUO
Certification: RoHS,UL
Model Number: G170EG01 V1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: us$130-140/pc
Packaging Details: 8pcs/ctn, 18kg/ctn,ctn size:434*278*391mm
Delivery Time: within 1 week
Payment Terms: T/T, Western Union , paypal
Supply Ability: 1000pcs per month
Detailed Product Description
Size: 17 Inch Resolution: 1280*1024
Brightness: 350 Cd/m² Contrast Ratio: 800:1
Interface: LVDS (2 Ch, 8-bit), 30PIN Backlight: LED
Operating Temperature: -30~85℃ View Angle: L/R/U/D 80/80/60/80
Active Area: 337.92*270.336 Mm Weight: 1350g
High Light:

AUO LCD module

,

AUO LCD screen

1280*1024 AUO 17 inch TFT LCD module Wide temperature G170EG01 V1​



Quick Detail

  • wide temperature
  • long backlight life
  • SXGA 1280X1024
  • 16.7M color (RGB 6-bit+Hi-FRC data)
  • 2 channels LVDS interface

Application

  • Industrial application



Specifications



Module number G170EG01 V1
Resolution 1280x1024,SXGA
Pixel Pitch 0.264 x 0.264  (mm)
Active Area 337.920(W) x 270.336(H)  (mm)
View angle R/L/U/D 80/80/60/80 (Deg)
Mode TN
LCD Surface Anti-glare,3H
Number of Colors 16.7M
Electrical Interface Dual channel LVDS
Brightness 350 cd/m2
Contrast ratio 800:1
Outline dimension 358.5(W) x 296.5(H) x 15.8(D)   (mm)
Gross weight 1.35 kg
Backlight WLED
LED Life (hrs.) 50K hours (Min.), replaceable
Power Consumption (W) 22(Typ.)
Supply Voltage (V) 5.0V
Response time 5  (ms)
Operate temperature -30~85℃
Storage temperature -30~85℃
Operate humidity 5-95  (%RH)
Storage humidity 5-95  (%RH)



Our Advantage



>>Quality ensurance

100% AUO original and brand new!

warranty :12 months !

You can enjoy the real panels directly from AUO factory;



>>Packing ensurance

all the products are in original package from original factory directly, and all the packages have labels andserial number!



>>Delivery ensurance

We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you !



>>After-Sale service

we have many years good experience on display solution.

any question, we will reply you within 12 hours.

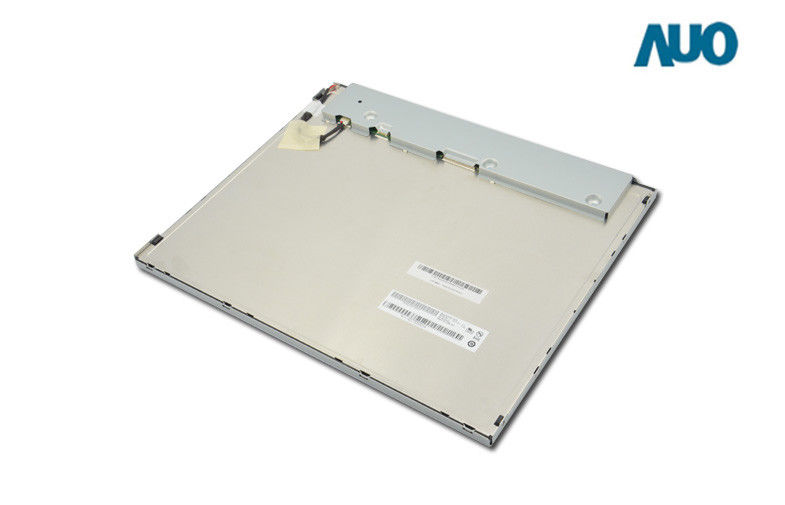

Picture Show:
