Product Details:
Payment & Shipping Terms:
|
| Size Of Panel: | 42 Inch | Operation System: | Win.7, Win.8, Android |
|---|---|---|---|
| Touch Screen: | IR | Click Manner: | Double Point/mult-point(optional) |
| Product Name: | Interactive Touch Screen Kiosk | Type: | Self Service |
| High Light: | internet banking kiosk,shopping mall kiosk |
||

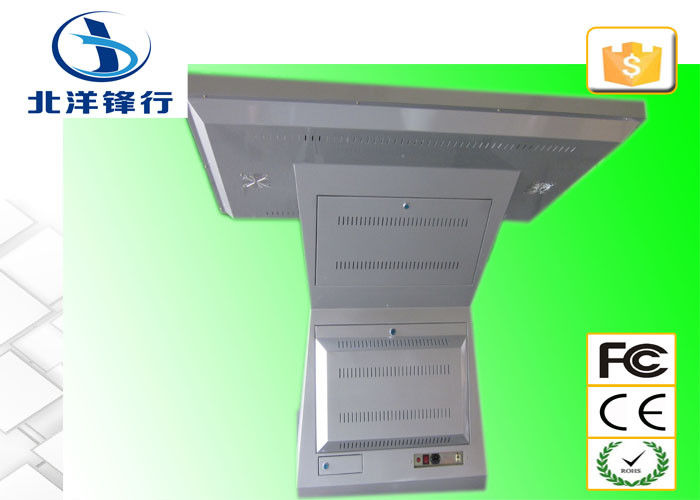

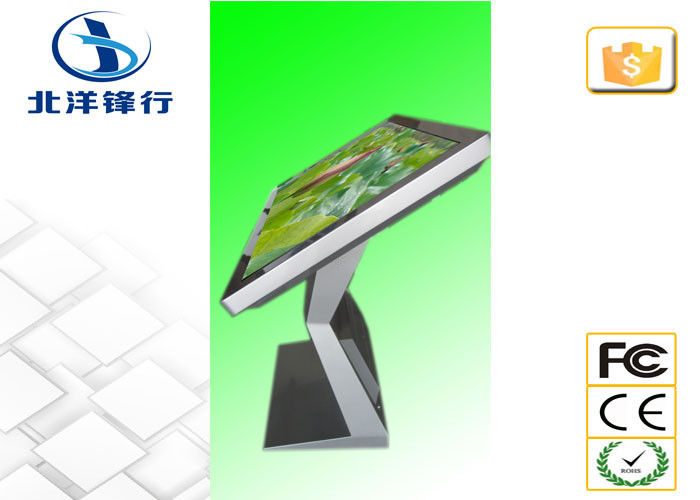

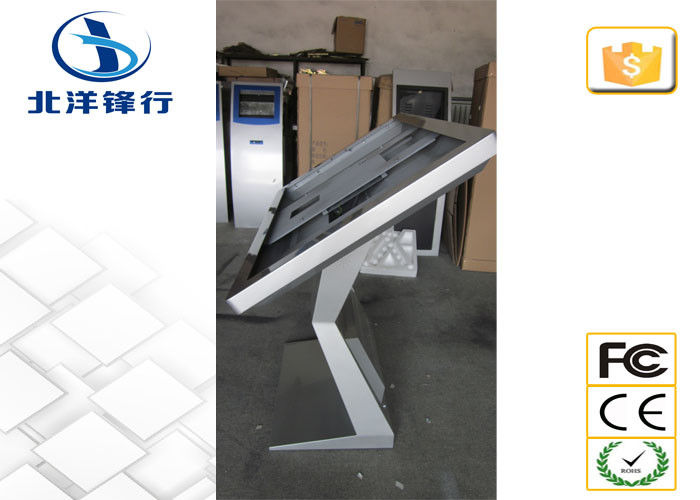

42inch Floor Standing LCD Interactive Touch Screen Kiosk Samsung / AUO For Shopping Mall
Description:
Multi-touch kiosk is to simplify people's actions on the computer generated. It is the largest application areas is public information inquiries, people click a computer screen corresponding information can be obtained through. It makes the operation of the computer completely locked on the computer screen, no keyboard and mouse, safe and reliable, will affected system's running because of the user's operation. Touch screen kiosk is mostly used for self-help information service, KTV song machine(VOD system), bank terminal, self-service ticketing terminal, etc. Self-service kiosk can do a lot of things, greeting, wayfinding, printing, data collection, but it also could be designed for advertising and promotion.
Applications:
Banks and other financial institutions (Business Chamber services, promotion)
Telecommunications (Business Chamber business information, experience Chamber business promotion)
Government agencies (public information dissemination, government affairs)
Mall (shopping guidance, business and commercial information, advertising, promotion)
Fashion goods flagship stores, specialty shops (New Products)
Company reception or conference room (company presentations, exhibits show)
Exhibition venue design (active venue)
Auto 4S shops (car show)
Furniture and fashion stores (Products)
Cinema (movie trailers appreciation)
Real estate sales hall, estate agency chain window (size and visual effects show)
Office and apartment hall (ad)
Catering industry, retail industry
Multimedia teaching
Model: BYIK-15-42
Specifications:
|
Model No. |
BYIK-15-42 |
|
Panel size |
42" TFT-LCD |
|
Display area(mm)/mode |
930×523 16:9 |
|
Maximum resolution |
1920*1080 |
|
Display color |
16.7M |
|
Pixel Pitch(mm) |
0.4845(H)×0.4845(V) |
|
Brightness (nits) |
600cd/m2 |
|
Contrast |
4000:1 |
|
Visual angle |
178°/178° |
|
Response time |
5ms |
|
Life(hrs) |
>50,000(hrs) |
|
Touch Panel |
|
|
Specification |
Infrared Touch |
|
positioning accuracy |
±2mm |
|
Touch Media |
Finger/touch pen opaque objects |
|
Transmittance |
≥92% |
|
Glass Hardness |
7H |
|
Click Mode |
two points |
|
Response Time |
≤10ms |
|
ClickLife Time |
>=60M times |
|
PC |
|
|
CPU |
Intel Core 1037U, clocked at 1.8GHz |
|
Memory |
2GB |
|
Hardware |
320GB |
|
Keyboard and Mouse(Optional) |
wireless waterproof keyboard and mouse set |
|
Interface |
USB*4,VGA*1,DVI*1,HDMI*1,RJ45*1,Audio*1,MIC*1 |
|
Software environment |
Windows XP/ Windows 7/ Linux / Android |
|
Video |
|
|
Color system |
PAL/NTSC/SECAM |
|
OSD display( screen menu display) |
|
|
Menu language |
Chinese / English( Multiple Language Supported) |
|
Power |
|
|
Power supply |
100-240V AC |
|
Maximum power consumption |
230W |
|
Standby power consumption |
<3W |
|
Temperature |
|
|
Working temperature |
-20°C~+80°C |
|
Storage temperature |
-40°C~+80°C |
|
Working humidity |
25%~85% |
|
Storage humidity |
20%~90% |
|
Support signal format |
|
|
Video format |
MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI |
|
Audio format |
Wave/MP3/WMA/AAC |
|
Image format |
JPEG/BMP/TIFF/PNG/GIF |
|
Image resolution |
480P/720P/1080P |
|
Appearance |
|
|
Panel color/appearance |
White, black, customized |
|
Kiosk Case material |
Cold Roll Steel |
|
Installation |
Floor-standing |
|
Quality Standard |
ISO9001,CCC |
|
Sample leading time |
12~15 working days |
|
Bulk order leading time |
12~15 working days |
|
Warranty |
1 year |
Features:
Inbuilt pc
with i3 or i5 high speed pc configuration
Inbuilt Wifi(802.11b/g/n)
With IR multipoint touch screen
Strong metal case, anti-static, anti-magnetic
New A+ grade LCD panel from Samsung and LG
Customize Options:
Enclosure design
Integrated components
Operating system
Lockable computer & monitor & compartments
Personalized colors, finish, branding & advertising
Screen size
PC upgrade
Interactive touch screen kiosk
