| Screen Size: | 8.4 Inch | Pixel: | 800x600 |
|---|---|---|---|
| Contrast Ratio: | 500:1 | Brightness: | 350cd/m^2 |
| Input Signal: | VGA/DVI | Viewing Angles: | 150(H)/150(V) |
| Monitor Type: | Resistive | ||
| High Light: | electronic advertising display screen,Advertising lcd Monitor |
||

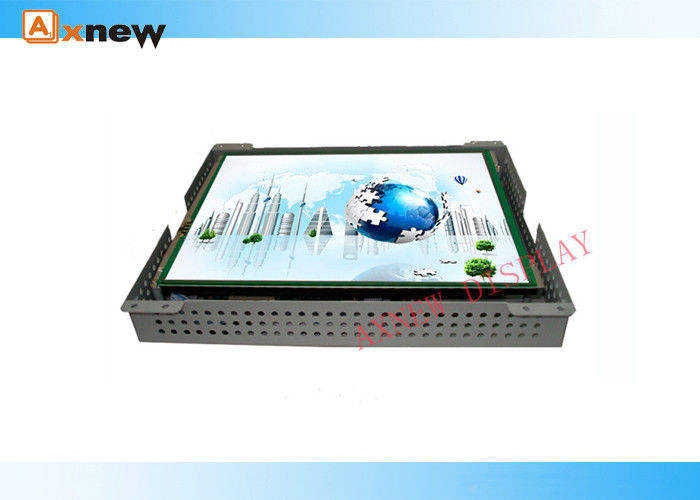

Thin Gaming Open Frame LCD Display 8.4 '' 800x600 HD LCD Monitor
8.4 inch industrial open frame display with VGA DVI input , if needs the touch, please contact us for details.
The 8.4’’ 4:3 format LCD is widely used for Automatic equipments, Advertising , Industrial Control, Panel pc , ATM embedded system etc.
Quick Details:
|
Model:AXD-084OPN2P1 |
Screen Size:8.4'' |
|
Screen format: 4:3 |
Display Resolution(pixel):800x600 |
|
Contrast Ratio:500:1 |
Brightness: 350cd/m^2 |
|
Storage temperature : -20℃~80℃ |
Input signal: VGA DVI |
|
Power Input: AC 100~240V/ 12V DC |
Product status: Stock |
|
Features and Advantages |
|
1.New and A grade perfect panels with stable supply |
|
2. industrial control board supports the displays working 24 hours |
|
3. Professional and industrial hardware and parts to guarantee its working normally in rough environment |
|
4. Open frame with front panel frame design on the surface, rugged mounted frame to protect the LCD screen |
|
5. VGA DVI interfaces ;USB touch interface options if needed |
|
6. 8.4 inch 450nits lcd display for ATM, kiosks, application control , advertising player , campus and industrial terminals etc |
|
Display Specifications |
|
|
Display |
8.4" Color TFT Open Frame Display |
|
Model Name |
AXD-084OPN2P1 |
|
Active Display Area (mm) |
170.4(H)x127.8(V) |
|
Pixel Pitch (mm) |
0.213(H)x0.213(V) |
|
Resolution (Pixel) |
SVGA (800X600) 262K/16.2M Color |
|
Brightness (CD/m^2) |
350cd/m^2 |
|
Contrast Ratio |
500:1 |
|
Viewing Angle (CR >=10) |
150/150 |
|
Power consumption |
3.3W typical, normal operation |
|
Touch Screen |
Resistive;RS232/USB(Optional) |
|
OSD Control |
On the back side |
|
I/O Connectors |
1x12v,1XVGA,DVI-D(Optional) |
|
Power Input |
DC 12V,4A 48W |
|
Mechanical Specifications |
|
|
Construction |
Steel front bezel &Black Color |
|
Dimensions |
210.0 x 147.4x 22.0 (mm) |
|
Mounting |
Embedded ,Wall Mounting Optional |
|
Power source |
AC 100~240V/ 12V DC |
|
Environment Specifications |
|
|
Operating Temperature |
-30~80℃ |
|
Storage Temperature |
-30~80℃ |
|
Rating |
Facilitate installation of the demolition,solid portfolio |
|
Ordering Information |
8.4” IP Monitor with VGA input and power adapter |
Packaging & Delivery
|
Packing details |
1x 8.4 inch Open Frame LCD Display; Packed in 10 pieces/carton with protection foam Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter |
|
Delivery terms |
7- working days for stock products after receiving payments; 15 working days for order production |
