Product Details:
Payment & Shipping Terms:
|
| Lcd Size: | 10.4 | Application: | Visual Doorbell, Digital Camera, Tablet Pc, DVD Player |
|---|---|---|---|
| Backlight: | LED | Brand Name: | BOE |
| Brightness: | 400nits | Color Pixel Arrangement: | RGB Vertical Stripe |
| Interface: | LVDS | Product Name: | LCD Panel |
| High Light: | dvd player lcd screen,LED Backlight lcd |
||

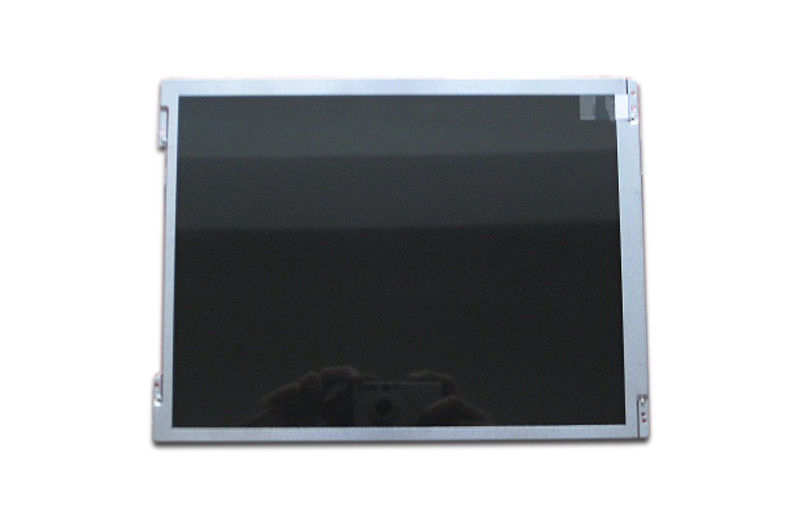

Anti Glare 10.4" BOE LCD Panel 800x600 For DVD Player BA104S01-100 400nits
Quick Detail:
1. Lcd size:10.4”
2. Resolution: 800 × 3(RGB) × 600
3.Brightness: 400nits
4. Weight:288
5. Backlight:LED
6. Interface:LVDS
Applications:
industrial control and car application lcd panel.besides,we have different size lcd panel apply to different fileds. such as tablet pc ,health care, Digital video cameras, digital cameras, portable DVD player, visual doorbell,.
Specifications:
|
Items |
speciation |
|
Screen Diagonal(inch) |
10.4" |
|
resolution |
800 × 3(RGB) × 600 |
|
Active Area |
211.20(H) x 158.40(V) |
|
pixel Pitch(mm) |
0.088(H) ×RGB ×0.264(V) |
|
Pixel Arrangement |
Pixels RGB stripe arrangement |
|
contrast ratio |
400:01:00 |
|
brightness |
400nits |
|
respond time |
25ms |
|
backlight |
LED |
|
Display Mode |
TN, Normally White |
|
Nominal Input Voltage VDD(volt) |
3.3 typ. |
|
Weight(gram) |
288 |
|
Physical Size(mm) |
236.00(H) ×176.90(V) × 5.60(D) typ |
|
Electrical Interface |
LVDS |
|
Surface Treatment |
Anti-Glare, Hardness 3H |
|
Color Depth |
262K (6bits ) |
|
RoHS Compliance |
RoHS Compliance |
Competitive Advantage:
+ we are the agent of AUO/CPT/Innolux in ShenZhen China
+ Secure Ordering
+ Delivery Date Guarantee
+ 100% Low Price Guaranteed
HK SEBO Electronics Co., Ltd. was founded in 2007. Our main products are all kinds of lcd panels. As the agent of AUO/CPT/Innolux,in Shenzhen, China, we have supplied our lcd panels to many lcd monitor, lcd TV, notebook pc, digital photo frame, DVD player, industrial display and car display factories from at home and abroad
With the advantage of our lcd panels, we have been engaged in the R&D of led backlight for lcd panel since the year of 2010 to satisfy customer;s different demand of lcd panel's brightness.
