Product Details:
Payment & Shipping Terms:
|
| Name: | LCD Display Manometer | Package: | Blister Card |
|---|---|---|---|
| Size: | 170*55*33mm | Weight: | 165g |
| Accessories: | 9V Battery | Volume Measuring: | Yes |
| High Light: | digital differential manometer,precision digital pressure gauge |
||

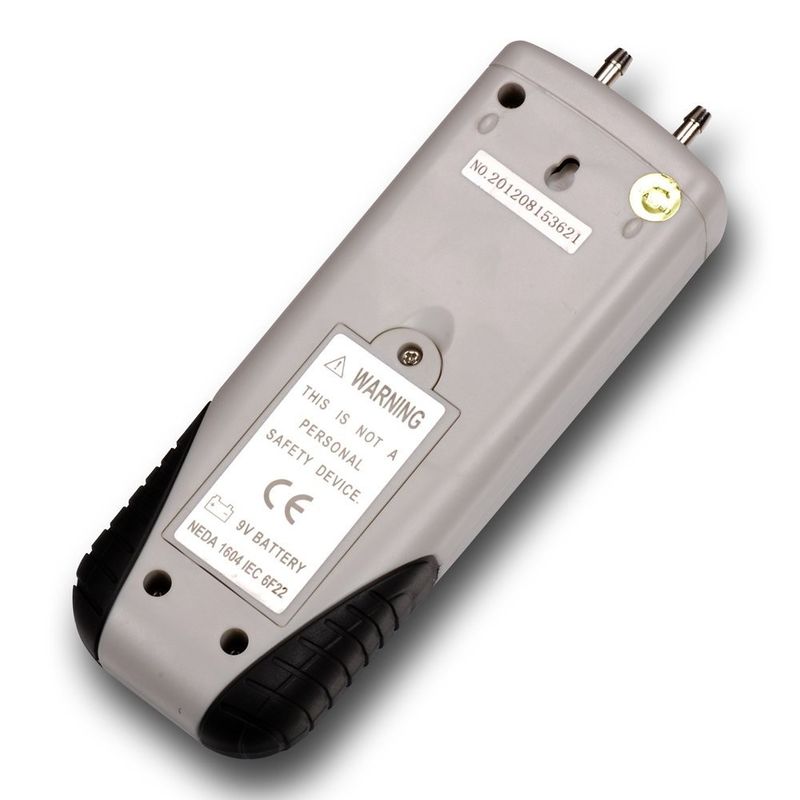

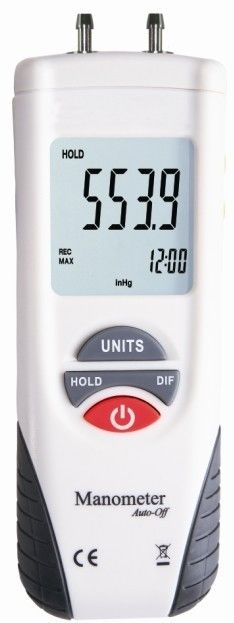

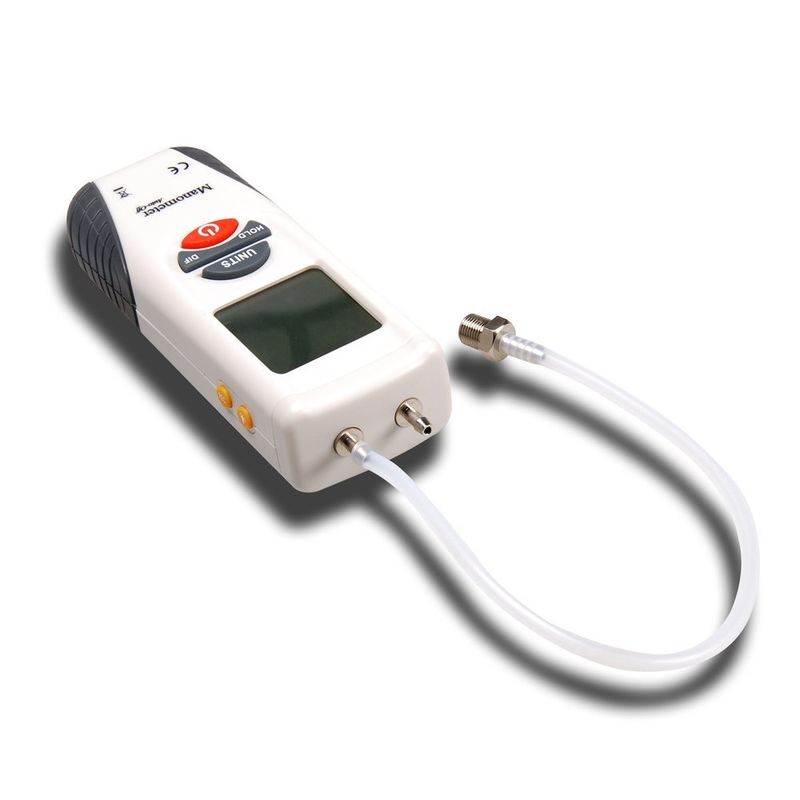

HT-1890 Dual LCD Display Differential Pressure Manometer Gauge
|
Name |
Digital Manometer |
Application |
|
|
Color |
White Yellow |
Feature |
In Electric power, iron and steel, petrochemicals, |
|
Battery capacity |
9 V |
Certificate |
CE , RoHS |
|
Features |
| 1. 11 selectable units of Measure |
| 2. Max/min/average, and with a relative time |
| 3. large LCD Back light dual display |
| 4. Zeroing,offset,and data compensation |
| 5. Low battery display and automatic shutdown |
| 6. Data Hold and Error code |
| Specification | |||||
| Function | Range | Resolution | Function | Range | Resolution |
| InH2O | ±55.40 |
0.01 |
Ozin² | ± 32.00 | 0.01 |
| Psi | ± 2.000 | 0.001 | ftH2O | ± 4.612 | 0.001 |
| Mbar | ± 137.8 |
0.1 |
cmH2O | ± 140.6 | 0.1 |
| Kpa | ± 13.79 | 0.01 | kgcm | ± 0.140 | 0.001 |
| inHg | ± 0.407 | 0.001 | Bar | ± 0.137 | 0.001 |
| mmHg | ± 103.4 | 0.1 | |||
|
Display |
Dual LCD |
| Accuracy | 0.3% FSO(25C) |
| Repeatability |
0.2%(Max0.5%FSO) |
| Linearity/Hysteresis |
0.29%FSO |
| Maximum Pressure |
10PSI(HT-1890) |
| Response Time |
0.5s Typical |
| Low Range Indicator |
Err.1 |
| Under Range Indicator |
Err.2 |
| Operating conditions |
32°F to 122 °CF(0 to 50°c ) |
