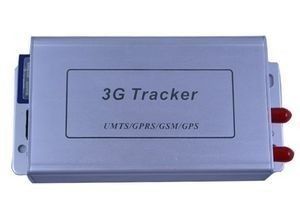

3G Vehicle Tracker
Features:
a. Use USIM card
b. Support WCDMA 3G network and GSM network
c. Support SMS/GPRS/HSDPA/Internet data transportation (GPS/Internet will be Illustrated in addition)

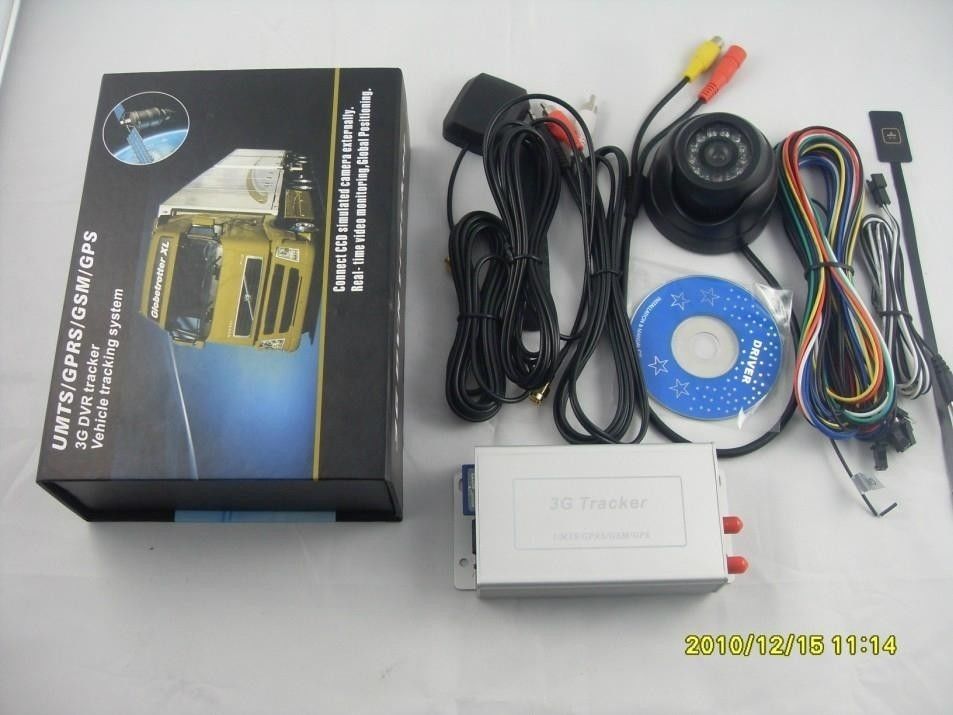

d. Use video ropes to connect CCD simulated camera externally
e. Mainly used in monitoring and locating the ship and train.and in fleet management of moving car and truck.
Spec
|
Content
|
Specification
|
|
Dim
|
66x111x27 mm
|
|
Weight
|
256g
|
|
Network
|
HSDPA,UMTS,EDGE,GSM/GPRS
|
|
Net frequency channel
|
EDGE/GPRS/GSM 850/900/1800/1900 MHz
HSDPA/UMTS 850/1900MHz or 900/2100 MHz
|
|
Chip
|
SIRF3 chip
|
|
3G chip
|
WCDMA
|
|
GPS sensitivity
|
-159dBm
|
|
GPS accuracy
|
5m
|
|
Time to first initiate
|
Cold status 45s
Warm status 35s
Hot status 1s
|
|
Input voltage
|
12V -24V input
|
|
User-defined input alarm detection level
|
0V
|
|
Video form
|
MP4
|
|
Battery
|
Chargeable changeable 3.7V 800mAh Li-ion battery
|
|
Standby
|
48hours
|
|
Storage temp
|
-40°C to +85°C
|
|
Operation temp
|
-20°C to +55°C
|
|
Humility
|
5%--95% non-condensing
|
Functions
1. Switch between “track” mode ”monitor” mode
a.“track”(locate mode)is default statue,all the alarming message will be send every 3 minutes.
b. send SMS“#monitor# “to the unit,it will reply“monitor ok!”,changing to 3G monitor mode. In 3G monitor mode, the alarm system will inform the master by incoming video call or voice call.
2. Locate Car on google map
a. When dialing the device with an authorized No, it will hang up and reply a real-time Geo-info to authorized mobile phone NO, click the URL link in the positioning message, can view the location map of the product.
b. send SMS“#auto#030s#005n#”to the device, it will report the Geo-info at 30s intervals for 5
times.(s: second, m: minute, h: hour). The setting must be in 3 Arabic numbers and at maximum 255 in value.
3. Incoming Video call Alarm(Both GPS mode and 3G mode available)
The device will detect whether it is the administrator or user when incoming video calls, if not, it will hang up; if it is the administrator or any user of the number , while the link will be established, it could send real-time monitoring of images and sound at this time.
4. Incoming Voice call Alarm(only 3G mode available)
The device will detect whether it is the administrator or user when voice call incoming, if not, it will hang up; the device will be automatically connected after 6 rings if it is the number of administrator or any user, and you could talk with each other at this time.
5.Movement alarm
The user can send SMS “#move#” to the unit, and then the unit will reply“move alarm setting successfully!” In case of such a movement surpass 200 meters; it will reply SMS “Move+ the Geo-info to the authorized Mobile numbers. It will send an alarm SMS every 3 minutes when it surpass the limits.)
6.Urgent alarm
Press the SOS for 3 second; it will send SMS “help me! + Geo-info” to all the authorized numbers every 3 minutes. It will stop sending such a SMS when any authorized number reply SMS “#help#” to the tracker.
7.low power alarms
The device will send SMS “low battery+Geo-info”to all the authorized numbers in 30 minutes intervals when the voltage is about 3.4V.
8.External input alarm
The user can customize the types of alarm triggered. For example trigger by
touching the car door or trunk.
Remark: it must be in arming statue.
9.Check IMEI
Send SMS “#imei#” to the device
10.Modify time
Send SMS: “#time#time zone#”,it will reply “time is set successfully”if it is successfully set.
11. Set 3G video call center number
12. Switch NTSC or PAL format of external CCD camera
13. Switch between External camera 1 and camera 2
It is necessary to set by sending the message ahead of time or software GPRS when host machine links two cameras and mobile phone can only link one.
Camera 1: #switch#1#”Camera 2 :#switch#2#” if set successfully reply“Switch camera 1 successfully” or reply “Switch camera 2 successfully”
14. Can track your cars on internet and can see video and picture recorded by car 3G GPS Tracker. This is unique and the most advanced function. Can track your car anywhere in your country. Amazing!!!
15. GPRS setting, FTP setting.
16. Set APN
