Spiral Bevel Gear Tester Machine, Max Testing Diameter 200mm, Hand-operated

Large Image :  Spiral Bevel Gear Tester Machine, Max Testing Diameter 200mm, Hand-operated

Product Details:

Place of Origin: CHINA
Brand Name: JJR
Certification: ISO9000
Model Number: Y9520

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: in wooden cases
Delivery Time: 1month
Payment Terms: T-T , L/C
Supply Ability: 50sets/month
Detailed Product Description

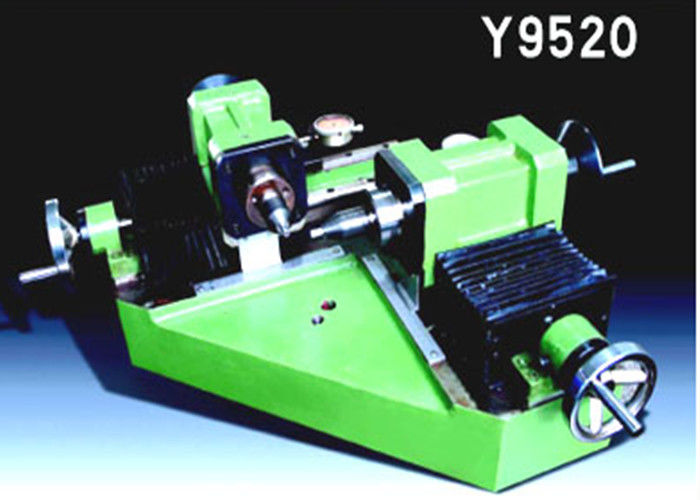

Spiral Bevel Gear Tester Machine , Max Testing Diameter 200mm , Hand-operated

Quick Detail:

Y9520 Hand-operated Gear Tester is designed for testing the meshing and the tooth bearing of spiral bevel gears. The gear testing on this machine is done manually and simulates the real mounting conditions. Both the rotation of the pinion and the loading of the gear are done manually, too. Meshing of the gear pair is tested through modal meshing. The correct machine settings will be determined by means of measuring the position and the marking compound of the tooth bearing so as to keep the consistence of the production lot.

The followings are the technical specifications and effective configuration of Y9520:

Specifications:


  Shaft angle

90 °

 Hole of pinion spindle

Morse taper  #4

 Diameter of through hole of pinion

16 mm

 Hole of gear spindle

Morse #4

 Diameter of through hole of gear spindle

16 mm

Travel of pinion head

30-150mm

 Travel of gear head

30-150mm

 Maximum testing diameter

200mm



 Machine Accuracy:


Radial runout of hole of pinion spindle  Near spindle end(a)

0.004 mm

70 mm away from spindle end (b)

0.008 mm

Passive shaft hole circumference beating proximal end (a)

0.004 mm

At 70 mm from the spindle nose(b)

0.008 mm

Traveling tolerance of pinion spindle

0.008/80 mm

Traveling tolerance of gear spindle

0.008/80 mm

Tolerance of equal height of axes of pinion spindle and gear spindle

0.01 mm

Tolerance of shaft angle of axes of pinion spindle and gear spindle (checking with test bar)

0.01/120mm



Company Profile:

Heng Yong company gathered many experienced experts. This team is lead by people have over decades of experience, and filled with young, energetic engineers.  With strong research and developing ability, our company put extraordinary effort on developing complete sets of gear machinery.  Now we are able to provide our customer the main products as follows: Gear Shapers, Straight Bevel Gear Generators, Spiral Bevel Gear Generators, Spiral Bevel Gear Grinders, Hypoid Gear Testers, Gear Lappers, Gear Quenching Press, Gear Chamfering Machines, Gear Hobbers, Honing Machines, Vertical & Horizontal Machining Centers, Special Precision Speed Reducers, Roll Stander for Seamless Tube Stretch Reducing Mill, Gear Coupling Family, Low Drive Devices and Environmental Protective Equipment of 16 kinds, more than 30 families, and more than 150 types and specifications. The company focus on developing heavy-duty, large CNC gear machinery, which are urgently needed by the government and makes industrialize as soon as possible, provide a great variety of advanced gear machinery to the market. The company is using the leading 3D designing software for developing and designing. The company combines producing with research and development by Cooperating with TIANJIN University and other colleges for many years.
