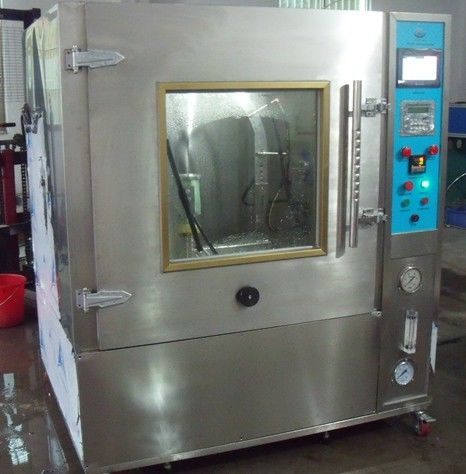

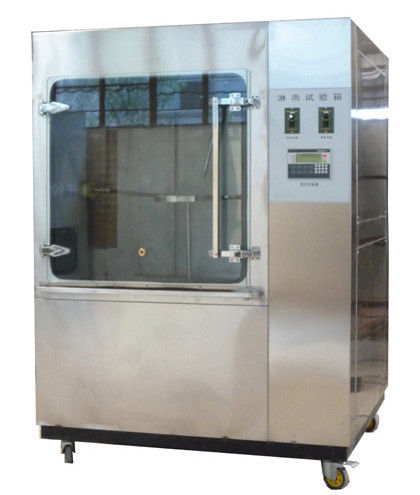

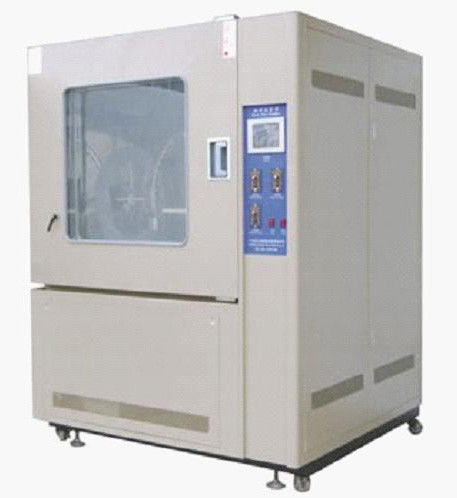

IEC60529 IPX3 and IPX4 Environmental Test Chamber Rain Test Chamber

Large Image :  IEC60529 IPX3 and IPX4 Environmental Test Chamber Rain Test Chamber

Product Details:

Place of Origin: China
Brand Name: LIYI
Certification: ISO
Model Number: LY-L80

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: 4000~8000USD/Set
Packaging Details: Plywood pallet case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Sets/month
Detailed Product Description
IP Class: IPX3 And IPX4 Test Chamber Size: All Size Can Customize
R400mm: R400mm Or R500mm Controller: PID Buttom Type Or PLC Touch Screen
Sample Shelf Size: D400mm Power Source: AC220V 50HZ Or Customize
High Light:

environmental test equipment

,

corrosion test chamber

Touch Screen Controller IPX3 and IPX4 Environmental Test Chamber Rain Test Chamber





Application:
    Rain / Spray Test Chamberis applied to test the shell’s waterproof effect of electronics, automobile and communication, using rainfall simulation to test the product’s waterproof performance and assess the product’s waterproof performance’s loss classification.

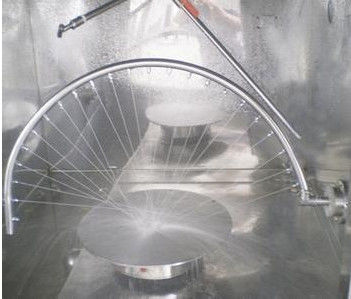

IPX3/4 Swiping Pipe Rain Test:
1. Meet the requirement of c standard IPX3 water pouring test and IPX4 water splash test.
2. The test sample will be put or installed on the center of the half-round sinuous pipe and make the bottom of the test samples and the oscillating axis in a horizontal position. During test, the sample would spin around the center line.
3. Swing pipe standard configuration: R400mm and R500mm two types.  Swing pipe inner diameter: Φ15mm.     DillΦ0.4 holes and make the water spray to the center.  The water pressure of the device entrance is     equal to 10m water level, spraying water pressure is 80-100kpa.
4. Water spraying pipe swing angle: 120º,180º,360º,  Vertical sides: 60º,90º,175º.
     Complete a swing(2*120º) time is 4S.
     Complete a swing(2*360º) time is 12S.
5. Can manual default the test parameters, complete testing automatically shut off the water supply and

    pendulum pipe Angle automatic zeroing and automatic eliminate seeper, avoid scale blockage needle tip.
6.  Use Mitsubishi PLC, LCD panel test procedure control box, stainless steel curved pipe, alloy aluminum frame, stainless steel shell.
7. Servo drive mechanism, guarantee the pendulum pipe Angle of precision, the overall pendulum tube structure for hang a wall.





Main specifications: (all can customize)

Swiping pipe radius

R400mm

R500mm

Test chamber size

1000*1000*1000mm

1100*1100*1100mm

Overoll size

1300mm*1100mm*1750mm

1400mm*1200mm*1850mm

Sample shelf size

D400mm

Working power

AC220V 50HZ





Swing pipe radius R400 or 500mm, tube diameter Ф19, madeof stainless steel pipe, water jet hole diameter Ф0.4, each blowhole average flow of 0.07L/min



Pendulum tube radiusmm

IPX3

IPX4

Blowhole number

Total Flow

Blowhole number

Total Flow

L/min

L/h

L/min

L/h

400/500

25

1.8

108

37

2.6

156
