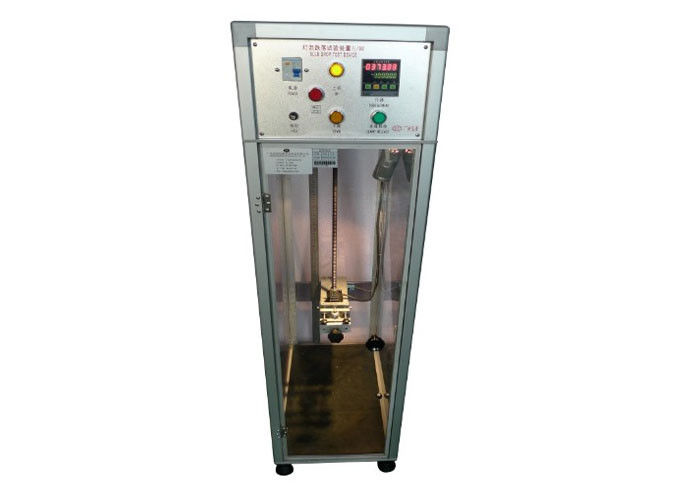

Lamps Drop Test Device , Test Apparatus For Bulb Drop
Product information:
Bulb drop test device is a customized device according to the Hong Kong standards, is used to test anti-drop performance E22 and E17 bulbs.
The lifting device is through the motor and the ball screw drive mechanism, equipped with high-precision displacement table, and there are 1m steel ruler with reading, drop height can be adjusted in real time; lamp fixture device is used V-shaped for positioning, can be achieved instantaneous release by the electromagnet control, without interference but vertical free fall; baseplate paved with Shore hardness 88 ± 3 ° of the rubber sheet, it is real simulate the actual drop environment, so it is an essential equipment for the laboratory test.
Technical specification and parameter configuration:
|

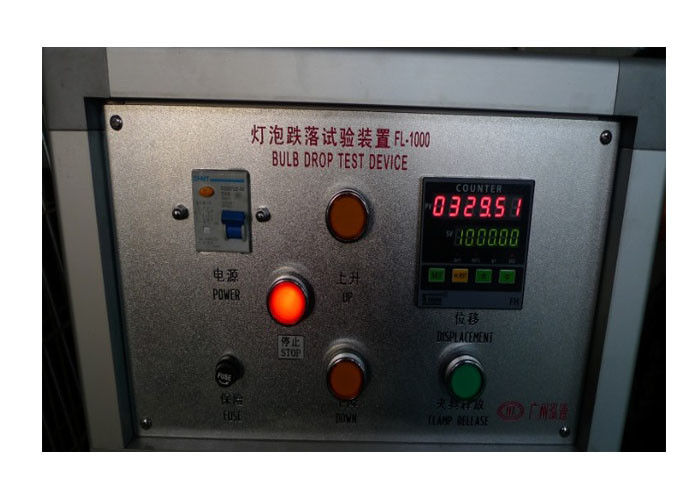

Structure and Control |
Motor + screw + data display instrument of lifting device control, electromagnet + manipulator control release device |
|
Display mode |
Drop height displacement table digital display, equipped with high-precision 1mm steel ruler display |
|
Rack construction |
Stainless steel column, ball screw, high-quality steel base treated by painting |
|
Working power supply |
AC 220V 50HZ |
|
Lifting journey |
330mm-1000mm, adjustable |
|
Specimen clamping mechanism |
Universal clamping fixture by manual, button control solenoid valve instantaneous release |
|
Drop rubber sheet |
Shore hardness of 88 ± 3, thickness 10mm, fixed on the thickened base plate |
|
Top light |
Top inside cabinet is equipped with lights, clearly visible when test |
|
Station |
Single station |
|
Wind cover |
Transparent acrylic panels, front side with large-size door, wide viewing area |
|
Baseplate and foot margin |
Thicken steel plate, steel surface mounted spirit bubble level, with four feet, can be adjusted to the level |
|
Dimensions |
400*600*1200mm,weight:80kg,the front door |
