AUO 7" tft AUO LCD Panel 800x480 G070VW01- V1

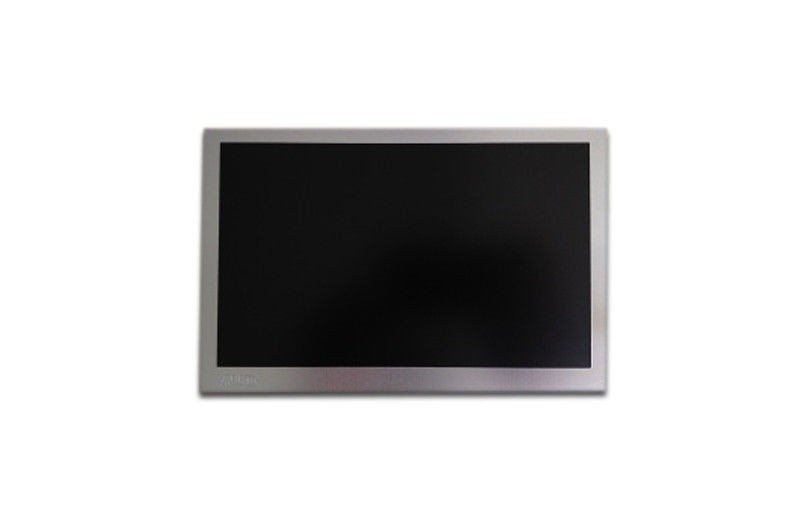

Large Image :  AUO 7" tft AUO LCD Panel 800x480 G070VW01- V1

Product Details:

Place of Origin: China
Brand Name: HDT
Certification: ISO
Model Number: G070VW01- V1

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: standard Packagingor customer's requirement
Delivery Time: 20 days
Payment Terms: T/T,L/C,Paypal
Supply Ability: 200,000pcs/month
Detailed Product Description
High Light:

tft lcd display module


small lcd module


AUO 7" tft industrial lcd module  800*480  G070VW01- V1



Quick Detail:


1. Lcd size:7"

2. Resolution: 800*480

3. Brightness: 400nits

4.  Weight: 175g

5.  Interface:LVDS

6.  Physical Size(mm): 170.0(W) x 111.0(H) x 8.0(D) (typ.)

7.  RoHS Compliance: RoHS Compliance





industrial control and car application lcd panel.besides,we have different size lcd panel apply to different fileds. such as tablet pc ,health care, Digital video cameras, digital cameras, portable DVD player, visual doorbell,.







Screen Diagonal(inch)

7.0 ( 213.4mm )

Active Area(mm)

152.40(H) x 91.44(V)


800(H) x 480RGB(V)

Pixel Pitch(mm)

0.1905 x 0.1905

Pixel Arrangement

R.G.B. Horizontal Stripe

Display Mode

TN, Normally White

Nominal Input Voltage VDD(volt)

3.3 typ.



Physical Size(mm)

170.0(W) x 111.0(H) x 8.0(D) (typ.)

Electrical Interface

1 channel LVDS

Surface Treatment

Anti-glare, Hardness 3H

Support Color

262K(6-bit) / 16.2M(8-bit)

RoHS Compliance

RoHS Compliance


Competitive Advantage:


+ we are the agent of AUO/CPT/Innolux in ShenZhen China
+ Secure Ordering
+ Delivery Date Guarantee
+ 100% Low Price Guaranteed

HK SEBO Electronics Co., Ltd. was founded in 2007. Our main products are all kinds of lcd panels. As the agent of AUO/CPT/Innolux,in Shenzhen, China, we have supplied our lcd panels to many lcd monitor, lcd TV, notebook pc, digital photo frame, DVD player, industrial display and car display factories from at home and abroad

With the advantage of our lcd panels, we have been engaged in the R&D of led backlight for lcd panel since the year of 2010 to satisfy customer;s different demand of lcd panel's brightness.
