Product Details:
Payment & Shipping Terms:
|
| Brand Name: | Home Made | Application: | Visual Doorbell, Digital Camera, Tablet Pc, DVD Player |
|---|---|---|---|
| Backlight: | LED | Brightness: | 500nits |
| Color Pixel Arrangement: | RGB Vertical Stripe | Lcd Size: | 5 |
| Product Name: | LCD Panel, LCD Module | Resolution: | 800*480 |
| High Light: | lcd panel screen,tft lcd display module |
||

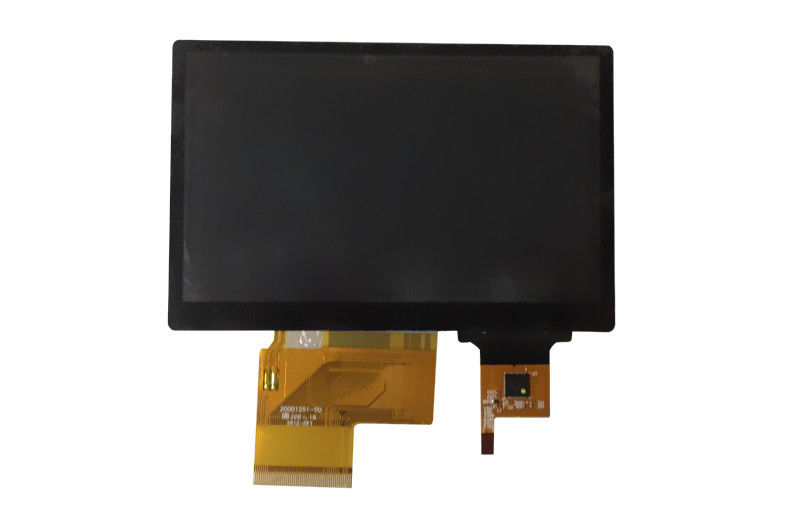

5”tft lcd module 800*480 sunlight readable YX050GL40T
Quick Detail:
Lcd size:5"
Resolution: 800*480
Brightness: 500nits
Weight:TBD
Backlight:LED
Applications:
industrial control and car application lcd panel.besides,we have different size lcd panel apply to different fileds. such as tablet pc ,health care, Digital video cameras, digital cameras, portable DVD player, visual doorbell,.
Specifications:
|
Product type |
Module+T/P |
|
Screen Size |
5" |
|
Display Mode |
Transmissive |
|
Resolution |
800X3(RGB)X480 |
|
Module/Panel Size(mm) |
120.7(W)*75.8(H)*3.1MM (FPC not include) |
|
Active Area(mm) |
108(W)*64.8(H) |
|
Driver IC OTA7001A_C OTA9960A |
|
|
surface treatment |
Anti-glare |
|
Viewing Angle (Tpy.)θT/θB/θL/θR |
75/75/75/75 |
|
Viewing direction |
12 O'Clock |
|
Input voltage |
13.2V |
|
Luminance(nits) |
1000 |
| Contrast Ratio |
500 |
|
Pixel size |
0.135(W)*0.135(H) |
|
Weight (g) |
TBD |
|
Input Data |
RGB interface |
|
Operation Temperature( ℃) |
-10~60 |
|
Storage Temperature (℃) |
-20~70 |
Competitive Advantage:
+ we are the agent of AUO/CPT/Innolux in ShenZhen China
+ Secure Ordering
+ Delivery Date Guarantee
+ 100% Low Price Guaranteed
HK SEBO Electronics Co., Ltd. was founded in 2007. Our main products are all kinds of lcd panels. As the agent of AUO/CPT/Innolux,in Shenzhen, China, we have supplied our lcd panels to many lcd monitor, lcd TV, notebook pc, digital photo frame, DVD player, industrial display and car display factories from at home and abroad
With the advantage of our lcd panels, we have been engaged in the R&D of led backlight for lcd panel since the year of 2010 to satisfy customer;s different demand of lcd panel's brightness.
