10.4" AUO Industrial TFT LCD Panels 1024x768 With LED Backlight CLAA104XA02 CW

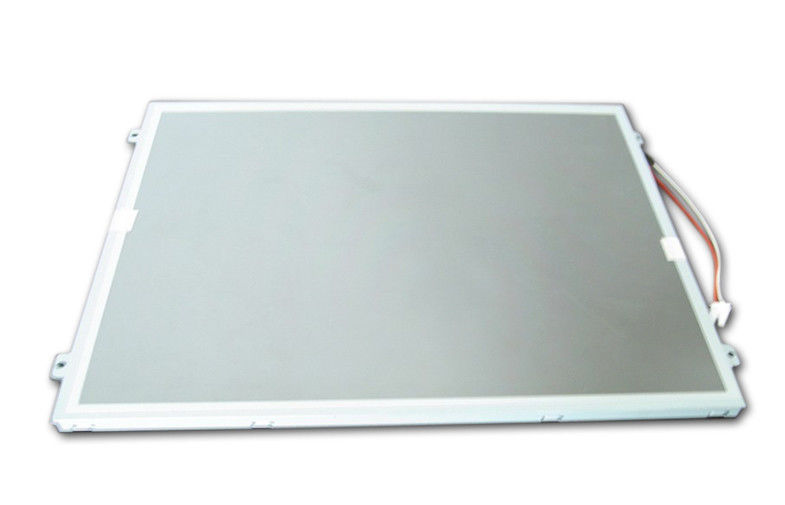

Large Image :  10.4" AUO Industrial TFT LCD Panels 1024x768 With LED Backlight CLAA104XA02 CW

Product Details:

Place of Origin: TaiWai
Brand Name: CPT
Certification: CE ,ROHS
Model Number: CLAA104XA02 CW

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: Get the latest price
Packaging Details: Original packing
Delivery Time: 2-3 weeks
Payment Terms: T/T in advace .western union
Supply Ability: 200,000pcs/month
Detailed Product Description
Brand Name: AUO Application: Visual Doorbell, Digital Camera, Tablet Pc, DVD Player
Backlight: LED Brightness: 400nits
Color Pixel Arrangement: RGB Vertical Stripe Interface: LVDS
Lcd Size: 10.4 Product Name: LCD Panel
High Light:

lcd panel screen

,

small lcd module





Quick Detail:



1. Lcd size:10.4"

2. Resolution: 1024(H) × 3(RGB) × 768(V)

3. Brightness:400nits

4. Weight: TBD

5.Interface:LVDS

6. Backlight:LED





Applications:



industrial control and car application lcd panel.besides,we have different size lcd panel apply to different fileds. such as tablet pc ,health care, Digital video cameras, digital cameras, portable DVD player, visual doorbell,.







Specifications:



Panel Size

10.4 inch(panel diagonal)

Display Area (mm)

211.2(H)×158.4(V) (10.4-inch diagonal)

Number of Pixels

1024(H) × 3(RGB) × 768(V)

Pixel Pitch (mm)

0.20625 x0. 20625

Color Pixel Arrangement

RGB vertical stripe

Display Mode

Normally white

Number of colors

262,144

Brightness(cd/m2)

400(typ.)

Response Time (Tr+Tf)

25 ms

Module Size (mm)

236(W)×174.3(H)×7.4(D) (with PWB and component)

Viewin Angle(BL on,CR≧10)

140 degree(H),120 degree(V)

Power consumption(W)

4.3W

BL unit

LED

Electrical Interface(data)

LVDS

Viewing Direction

6 o´clock (Max contrast ratio, Gray Level Inversion)

Weight(g)

TBD





 Competitive Advantage:



+ we are the agent of AUO/CPT/Innolux in ShenZhen China
+ Secure Ordering
+ Delivery Date Guarantee
+ 100% Low Price Guaranteed

HK SEBO Electronics Co., Ltd. was founded in 2007. Our main products are all kinds of lcd panels. As the agent of AUO/CPT/Innolux,in Shenzhen, China, we have supplied our lcd panels to many lcd monitor, lcd TV, notebook pc, digital photo frame, DVD player, industrial display and car display factories from at home and abroad

With the advantage of our lcd panels, we have been engaged in the R&D of led backlight for lcd panel since the year of 2010 to satisfy customer;s different demand of lcd panel's brightness.
