LVDS CPT 20ms 7" TFT LCD Panels DVD Player LCD Screen CLAA070LC0C CW

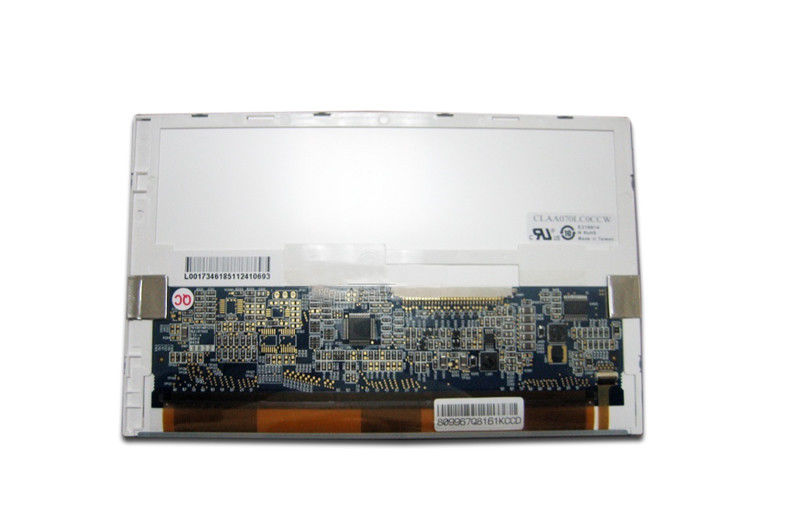

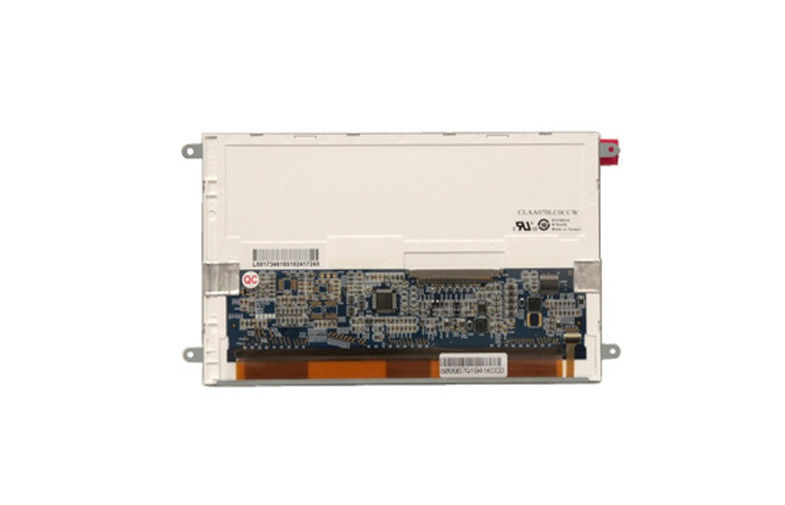

Large Image :  LVDS CPT 20ms 7" TFT LCD Panels DVD Player LCD Screen CLAA070LC0C CW

Product Details:

Place of Origin: TaiWai
Brand Name: CPT
Certification: CE ,ROHS
Model Number: CLAA070LC0C CW

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: Get the latest price
Packaging Details: Original packing
Delivery Time: 2-3 weeks
Payment Terms: T/T in advace .western union
Supply Ability: 200,000pcs/month
Detailed Product Description
Brand Name: CPT Application: Visual Doorbell, Digital Camera, Tablet Pc, DVD Player
Backlight: LED Brightness: 220nits
Color Pixel Arrangement: RGB Vertical Stripe Interface: LVDS
Lcd Size: 7 Product Name: LCD Panel, LCD Module
High Light:

lcd panel screen

,

tft lcd display module

 CPT 7.0”tft car application  800 * 480 lcd module  CLAA070LC0C CW





Quick Detail:



1. Lcd size:7.0"

2. Resolution: 800(H)×3(RGB)×480(V)

3. Brightness:220nits

4. Weight: 110g

5. Interface LVDS

6. Backlight:LED





Applications:



industrial control and car application lcd panel.besides,we have different size lcd panel apply to different fileds. such as tablet pc ,health care, Digital video cameras, digital cameras, portable DVD player, visual doorbell,.







Specifications:

Display Area (mm)

152.4(W)×91.44(H)

Number of Pixels

800(H)×3(RGB)×480(V)

Pixel Pitch (mm)

0.1905(H)×0.1905(V)

Color Pixel Arrangement

RGB vertical stripe

Display Mode

Normally white

Number of colors

262,144

Viewing Direction

6 o´clock

Response Time (Tr+Tf)

20ms

Brightness(cd/m2)

220nit(typ)

Viewing Angle(BL on,CR≧10)

140 degree(H),110degree(V)

Electrical Interface(data)

LVDS

Power consumption

2.0W(Typ)

Outline Dimension(in mm)

165(W)×104(H)×5(D)

Weight(g)

110 (typ)

BL unit

LED

Surface Treament

Anti-Glare,Hardness:3H





Competitive Advantage:



+ we are the agent of AUO/CPT/Innolux in ShenZhen China
+ Secure Ordering
+ Delivery Date Guarantee
+ 100% Low Price Guaranteed

HK SEBO Electronics Co., Ltd. was founded in 2007. Our main products are all kinds of lcd panels. As the agent of AUO/CPT/Innolux,in Shenzhen, China, we have supplied our lcd panels to many lcd monitor, lcd TV, notebook pc, digital photo frame, DVD player, industrial display and car display factories from at home and abroad

With the advantage of our lcd panels, we have been engaged in the R&D of led backlight for lcd panel since the year of 2010 to satisfy customer;s different demand of lcd panel's brightness.
