Orginal CLAA069LAOHCW Laptop CPT LCD Panel Waterproof and High Brightness 400:1

Certification
You always can give me the best plan ,and it lets my customer feel great,i hope we can have another chance to cooperation

—— Tim

I recently placed an order and I needed to update that order prior to shipment. The staff was responsive and courteous.

—— Mr.smith

Does your sourcing platform have a good reputation, the delivery time was very punctual, there was no case of poor stock, and we did not find cargo da

—— Mr. Carlos

I'm Online Chat Now

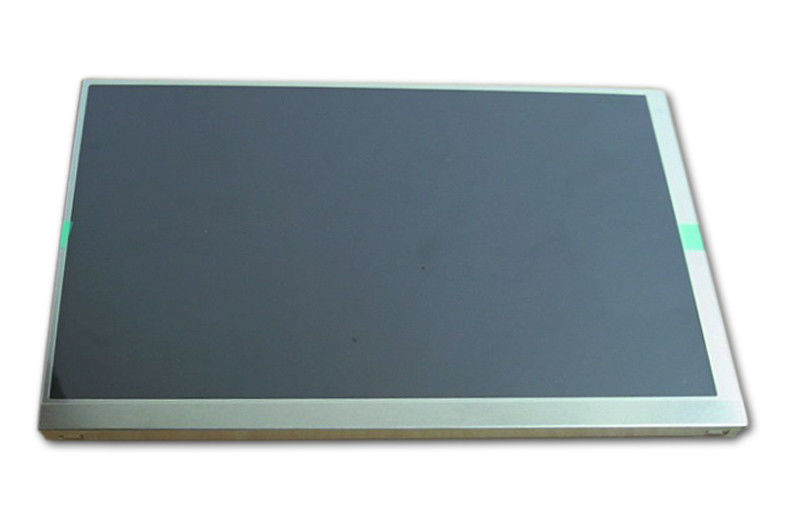

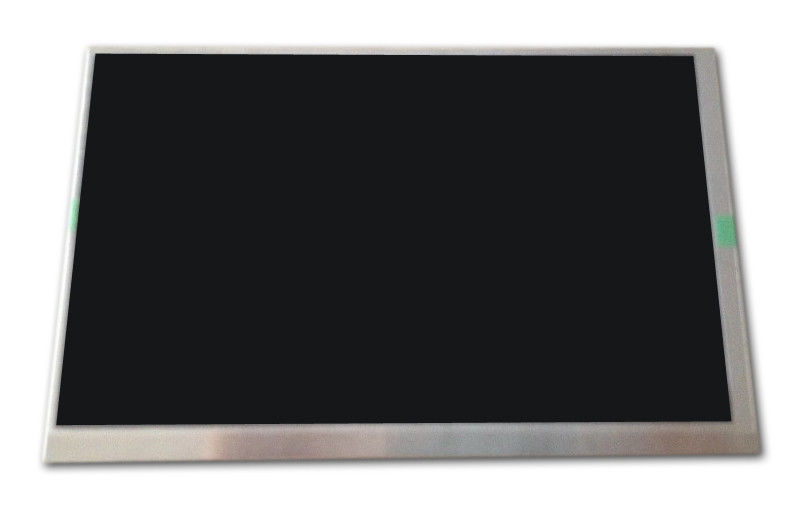

Orginal CLAA069LAOHCW Laptop CPT LCD Panel Waterproof and High Brightness 400:1

Large Image :  Orginal CLAA069LAOHCW Laptop CPT LCD Panel Waterproof and High Brightness 400:1

Product Details:

Place of Origin: TaiWai
Certification: CE ,ROHS
Model Number: CLAA069LAOHCW

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: Get the latest price
Packaging Details: Original packing
Delivery Time: 2-3 weeks
Payment Terms: T/T in advace .western union
Supply Ability: 200,000pcs/month
Detailed Product Description
Brand Name: CPT Application: Visual Doorbell, Digital Camera, Tablet Pc, DVD Player
Backlight: LED Brightness: 500nits
Color Pixel Arrangement: RGB Vertical Stripe Interface: TTL
Product Name: LCD Panel, LCD Module Lcd Size: 6.9
High Light:

Anti Glare lcd Panel

,

industrial lcd displays





Orginal CLAA069LAOHCW Laptop CPT LCD Panel Waterproof and High Brightness 400:1





Quick Detail:



1. Lcd size:6.9"

2. Physical Size(mm): 160.6(L) x 85.6(W) x 0.215(D) (mm)

3. Resolution: 800*480

4. Brightness: 500nits

5. Weight: 165g(typ)

6. Interface:TTL

7. Backlight:LED





Applications:



industrial control and car application lcd panel.besides,we have different size lcd panel apply to different fileds. such as tablet pc ,health care, Digital video cameras, digital cameras, portable DVD player, visual doorbell,.





Specifications:



ITEM

SPECIFICATION

Panel Size

6.95 inch (panel diagonal)

Display Area (mm)

156.6(H)*1.6(V)

Number of Pixels

800(H) *3 (RGB) ?480(V)

Pixel Pitch (mm)

0.19575 (H) ?0.170 (V)

Up Polarizer

160.6(L) x 85.6(W) x 0.215(D) (mm)

Down Polarizer

159.0(L) x 83.8(W) x 0.215(D) (mm)

Color Pixel Arrangement

RGB vertical stripe

Display Mode

Normally white

Number of colors

262K

Viewing Direction

6 o'lock(Max.Contrast,Gray level inversion)

Response Time (Tr+Tf)

20ms

Brightness (cd/m2)

500nit (typ)

NTSC

70%(typ)

Contrast Ratio

400:1(typ)

Viewing Angle (CR≧10)

140 degree(H),120degree(V)

Electrical Interface(data)

TTL

Power consumption(W)

1.93W(typ)

Outline Dimension (in mm)

167.0(W) ?93.0(H) ?6(D)

Weight(g)

165g(typ)

BL unit

LED

Surface Treament

Anti-Glare, Surface hardness: 3H



Competitive Advantage:

+ we are the agent of AUO/CPT/Innolux in ShenZhen China
+ Secure Ordering
+ Delivery Date Guarantee
+ 100% Low Price Guaranteed

HK SEBO Electronics Co., Ltd. was founded in 2007. Our main products are all kinds of lcd panels. As the agent of AUO/CPT/Innolux,in Shenzhen, China, we have supplied our lcd panels to many lcd monitor, lcd TV, notebook pc, digital photo frame, DVD player, industrial display and car display factories from at home and abroad

With the advantage of our lcd panels, we have been engaged in the R&D of led backlight for lcd panel since the year of 2010 to satisfy customer;s different demand of lcd panel's brightness.
