Product Details:
Payment & Shipping Terms:
|
| Lcd Size: | 6.9 | Application: | DVD Player |
|---|---|---|---|
| Backlight: | LED | Brand Name: | CPT |
| Brightness: | 500nits | Color Pixel Arrangement: | RGB Vertical Stripe |
| Interface: | TTL | Product Name: | LCD Panel |
| High Light: | industrial lcd displays,high resolution LCD panel |
||

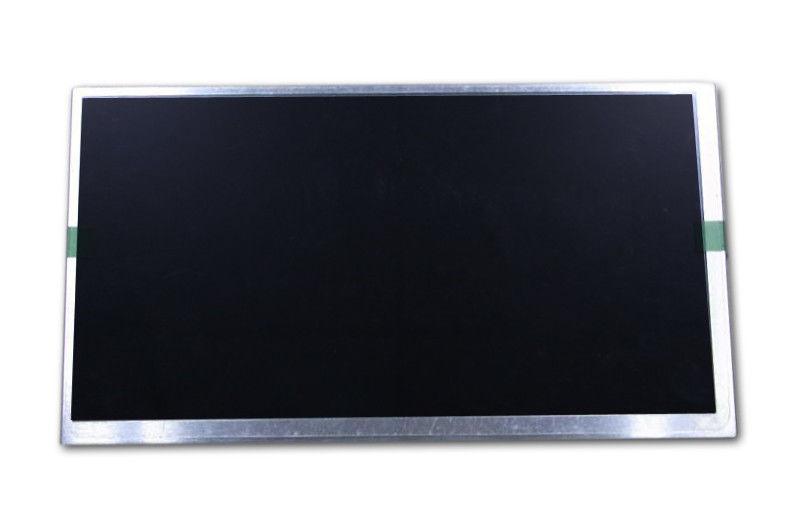

CLAA069LA0BCW Notebook CPT LCD Panel / Industrial LCD Displays 262K 20ms
Quick Detail:
1. Lcd size:6.9"
2. Resolution: 800(H) x 3(RGB) x 480(V)
3. Brightness: 500nits
4. Weight: 165g
5. Interface TTL
6. Backlight:LED
Applications:
industrial control and car application lcd panel.besides,we have different size lcd panel apply to different fileds. such as tablet pc ,health care, Digital video cameras, digital cameras, portable DVD player, visual doorbell,.
Specifications:
Panel Size | 6.95 inch (panel diagonal) |
Display Area (mm) | 156.6(H)×81.6(V) |
Number of Pixels | 800(H) × 3 (RGB) × 480(V) |
Pixel Pitch (mm) | 0.19575 (H) × 0.170 (V) |
Color Pixel Arrangement | RGB vertical stripe |
Display Mode | Normally white |
Number of colors | 262K |
Viewing Direction | 6 o´clock(Max. contrast ratio, Gray level inversion) |
Response Time (Tr+Tf) | 20ms |
Brightness (cd/m2) | 500nit (typ) |
Viewing Angle (CR≧10) | 140 degree(H),120degree(V) |
Electrical Interface(data) | TTL |
Power consumption(W) | 1.93W(typ) |
Outline Dimension (in mm) | 167.0(W) × 93.0(H) × 6(D) |
Weight(g) | 165g(typ) |
BL unit | LED |
Competitive Advantage:
More information from Shenzhen New display CO.,LTD
1. Agent Brand:
* AUO/CPT/CMO/ /Innolux/ TianMa five brands tft lcd moulds, you can get the most competitive price for real products;
2.Application of our lcd panles:
Our products are widely used for banking machines, communication tools, household appliances, automobile instruments, mobile phone, video door phone, E-book, stock mobile, MP5, tablet PC, GPS navigator and so on.
3. Quality to be ensure:
All the panels are 100% original and brand new, no fake panels exists, so from Shenzhen New display you can enjoy the real panels directly from original factory;
Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number, you can check them;
4.Quickly delivery:
We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly and to avoid Value Added Tax in china for you, so from Shenzhen New display you can get more convenient delivery;
5.long-term partner:
* Products are sold to more than 20 countries, so from Shenzhen New display you can get more stable supplying promise;
6. Super After-Sale service:
Shenzhen New display will support original factory technology service before and after sale for all your project, you can send all the fack panel back and here return you a new panel;
7.the best TFT LCD solution:
*more tft lcd model detail information including size, resolution, brightness, operating temperature or life time etc in our web site or alibaba website: http://www.tft-lcd-panels.ecer.com/
To get the latest prices, pls feel free to contact us.
