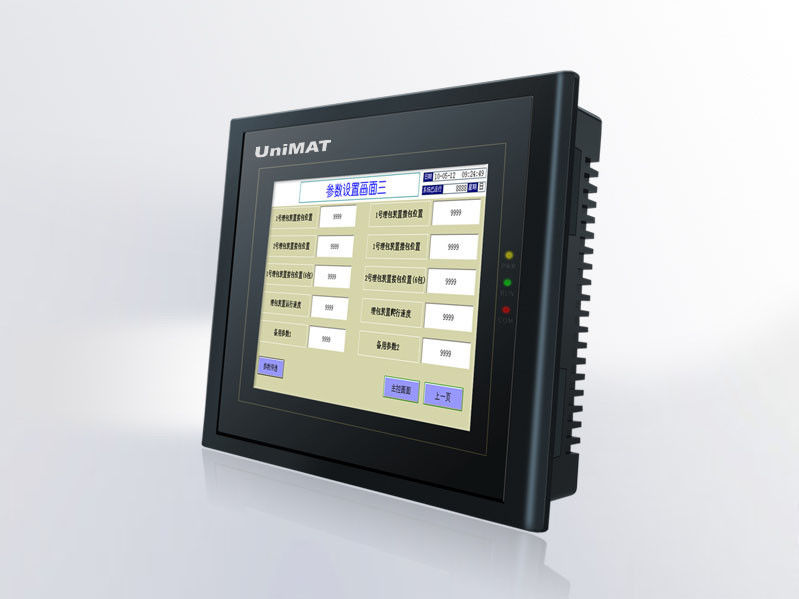

10.2 " color touch screen HMI Human machinery interface UNSK102AE
1) Quick description :
1. 10.2 " TFT Color LCD
2. 16 : 9 800 * 480 resolution
3. Color : 262144
4. USB Download / USB / RJ45 ETHERNET PORT / SD Card,
COM1 : RS232 / 422 / 485, COM2 : RS232 / 422 / 485
5. CPU Speed : RISC 400MHz
128M Flash + 64M DDR2 ( SDRAM ).
2) Detail description :
| Specifications | Items | UNSK-102AE;UNSK-102AS |
| Display | Dimension | 10.2" ( Length x Width =16:9 ) |
| Resolution | 800 x 480 | |
| Touch Panel | 4- wire high precision touch panel | |
| Display Color | 266,144 | |
| Backlight Unit | LED | |
| Contrast | 450:1 | |
| Brightness | 500cd/sqm | |
| SD Card | N/A / Yes | |
| Memory | 128M/FLASH + 64M DDR | |
| CPU | 32-bit 400MHz RISC | |
| Protection Grade | IP 65 Front Panel | |
| Housing Material | Engineering Plastics: ABS+PC | |
| Power Supply | Power Supply | DC24V(+/-15%) |
| Power Consumption | 8w | |
| Interface | Serial Interface | COM1: RS232/422/485 and COM2: RS232/422/485 |
| USB Download Port | Yes / Yes | |
| USB | Yes / Yes | |
| RJ 45 | N/A / Yes | |
| Environment |
Operation Environment Temperature |
~10 to 65℃ |
|
Operation Environment Humidity |
10 ~ 90% RH | |
| Anti-Vibration | 10-25Hz( XYZ direction 2G/30 minute) | |
| Mechanical |
Dimension (width*height*depth mm) |
266 x 208 x 40mm |
|
Cut-out (width*height mm) |
261 x 203mm | |
| Weight | 2kg | |
