High vibration proof ability 5.7 inch AUO lcd panel 640 * 480 530nits G057VTN01.0

: Large Image : High vibration proof ability 5.7 inch AUO lcd panel 640 * 480 530nits G057VTN01.0

Product Details:

Place of Origin:	Taiwan
Brand Name:	AUO
Certification:	RoHS,UL
Model Number:	G057VTN01.0

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiated, us$66-72/pc
Packaging Details:	60pcs/ctn, 13kg/ctn, carton size 523425CM
Delivery Time:	within 1 week
Payment Terms:	T/T, Western Union , paypal
Supply Ability:	1500pcs per month

Contact Now

Detailed Product Description

Size:	5.7 Inch	Resolution:	640*480
Brightness:	530 Cd/m²	Contrast Ratio:	800:1
Interface:	CMOS (1 Ch, 6-bit), 33pin	Backlight:	LED
Operating Temperature:	-30~85℃	View Angle:	L/R/U/D 80/80/70/70
Display:	TN
Highlight:	AUO LCD screen , industrial lcd panel

High vibration proof ability 5.7 inch TFT lcd module 640*480 530nits G057VTN01.0

Quick Detail

High vibration proof ability for rugged environment
G057VTN01.0 will be the first one in vibration proof product lineup

Application

heavy machinery and construction task

Specifications

Module number	G057VTN01 V0
Resolution	640 x 3(RGB) x 480
Pixel Pitch	0.18 x 0.18 (mm)
Active Area	115.2(H) x 86.4(V) (mm)
View angle	R/L/U/D 80/80/70/70 (Deg)
Pixel Arrangement	R.G.B. Vertical Stripe
Electrical Interface	CMOS
Brightness	530 (cd/m2)
Contrast ratio	800:1
Outline dimension	144.0(H)x 104.6(V) x 12.3(D) (mm)
Gross weight	165 (g)
Backlight	LED
Response time	25 (ms)
Operate temperature	-30-85 (°C)
Storage temperature	-30-85 (°C)
Display mode	TN
Operate humidity	5-95 (%RH)
Storage humidity	5-95 (%RH)
Package	AUO original package, 60pcs/carton, 520x340x250mm, 12.95KGs.

Our Advantage

>>Quality ensurance

100% AUO original and brand new!

warranty :12 months !

You can enjoy the real panels directly from AUO factory;

>>Packing ensurance

all the products are in original package from original factory directly, and all the packages have labels andserial number!

>>Delivery ensurance

We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you !

>>After-Sale service

we have many years good experience on display solution.

any question, we will reply you within 12 hours.

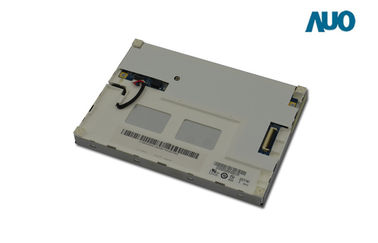

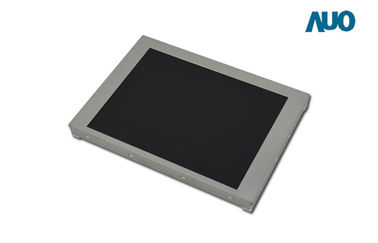

Picture Show:
