Product Details:
Payment & Shipping Terms:
|
| Lcd Size: | 23.6 " | Application: | Desktop PC , Monitor,Raspberry Pi |
|---|---|---|---|
| Backlight: | LED | Brand Name: | BOE |
| Brightness: | 300 Nits | Color Pixel Arrangement: | RGB Vertical Stripe |
| Interface: | LVDS | Product Name: | LCD Panel |
| LCD Type: | Active Matrix TFT LCD | ||
| High Light: | dvd player lcd screen,LED Backlight lcd |
||

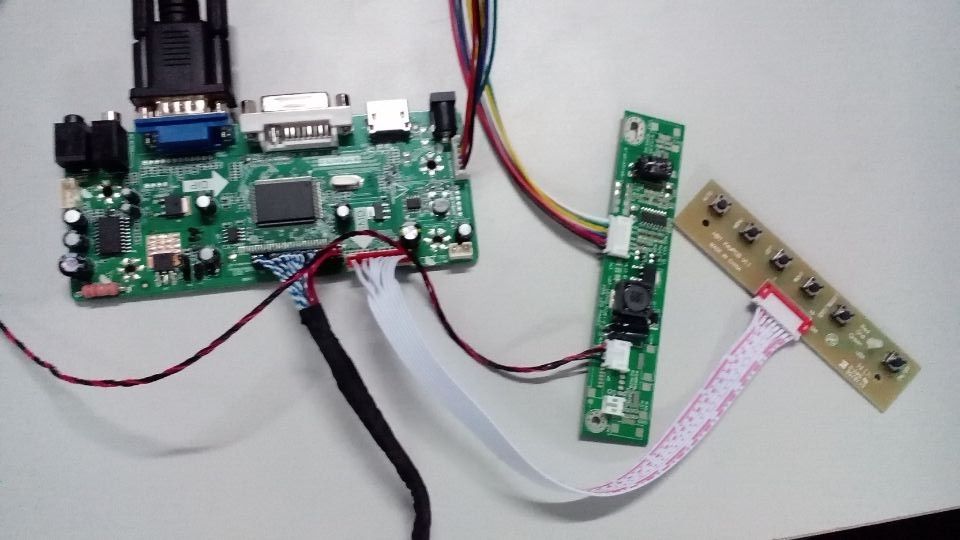

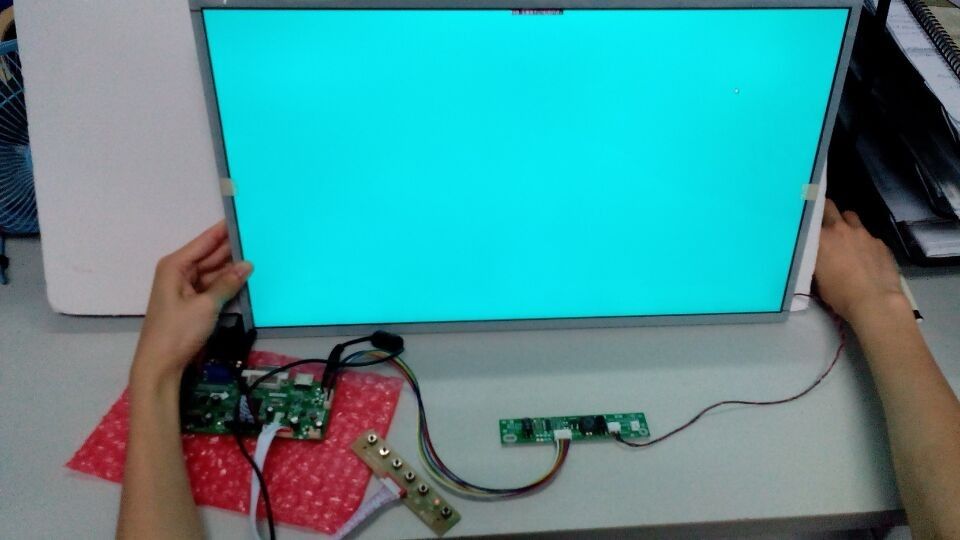

24 Inch 1920 × 1080 LCD Panel With HDMI Board HM236WU1 - 300
Quick Detail:
1. Lcd size:23.6 ”
2. Resolution: 1920×1080
3. Brightness: 300 nits
4. Weight: 2200 (max.)
5. Backlight:LED
6. Interface:LVDS
Applications:
industrial control and car application lcd panel.besides,we have different size lcd panel apply to different fileds. such as tablet pc ,health care, Digital video cameras, digital cameras, portable DVD player, visual doorbell,.
Specifications:
Items | speciation |
Screen Diagonal(inch) | 23.6 " |
resolution | 1920×1080 |
Active Area | 521.28(H)×293.22(V) |
pixel Pitch(mm) | 0.2715(H)×0.2715(V) |
Pixel Arrangement | RGB Vertical stripe |
contrast ratio | 1000:1 |
brightness | 300nits |
Respond time | 1.5 ms |
backlight | LED |
Display Mode | TN, Normally White |
Nominal Input Voltage VDD(volt) | 3.3 typ. |
Weight(gram) | 2200 (max.) |
Physical Size(mm) | 544.8(H) × 320.5(V) × 9.6(D) typ. |
Electrical Interface | LVDS |
Surface Treatment | Haze 25%, 3H |
Color Depth | 16.7M |
RoHS Compliance | RoHS/Halogen Free |
| LED Life-Time | 30,000 Hrs |
| Operating Temperature | 0~+50 |
Competitive Advantage:
+ we are the agent of AUO/CPT/Innolux/BOE/IVO in ShenZhen China
+ Secure Ordering
+ Delivery Date Guarantee
+ 100% Low Price Guaranteed
HK Sebo New Display Co., Ltd. was founded in 2007. Our main products are all kinds of lcd panels. As the agent of AUO/CPT/Innolux,in Shenzhen, China, we have supplied our lcd panels to many lcd monitor, lcd TV, notebook pc, digital photo frame, DVD player, industrial display and car display factories from at home and abroad
With the advantage of our lcd panels, we have been engaged in the R&D of led backlight for lcd panel since the year of 2010 to satisfy customer;s different demand of lcd panel's brightness.
