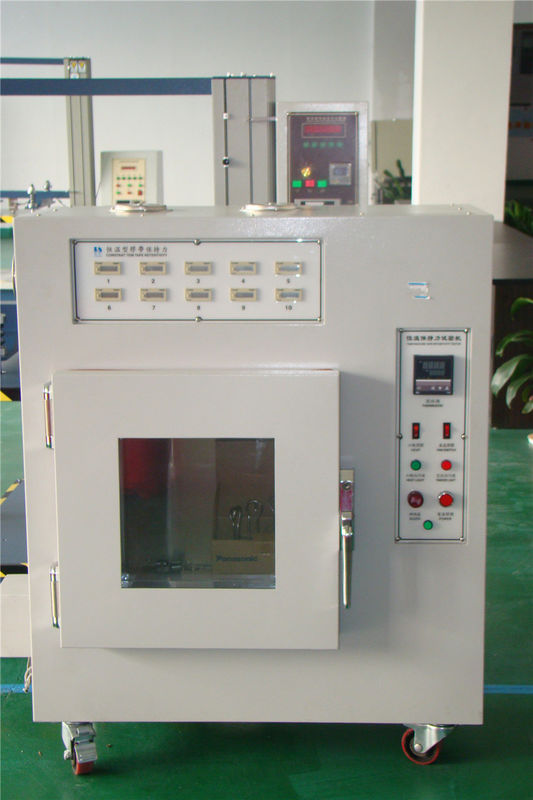

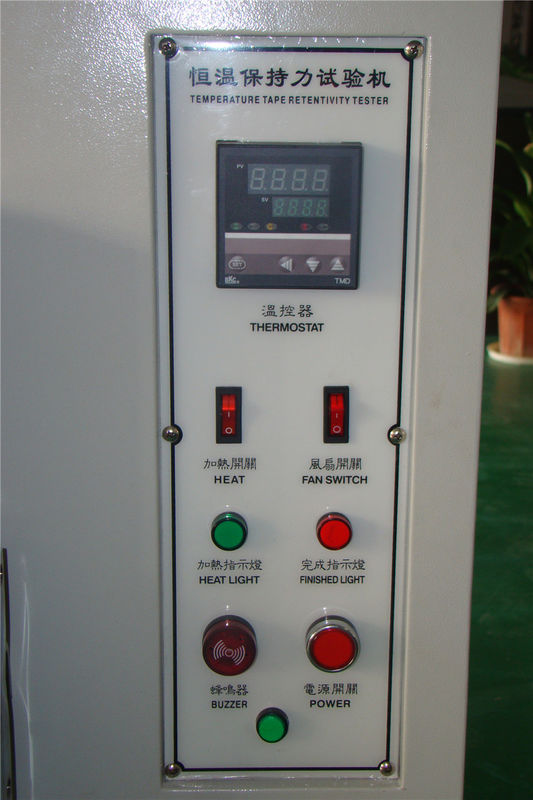

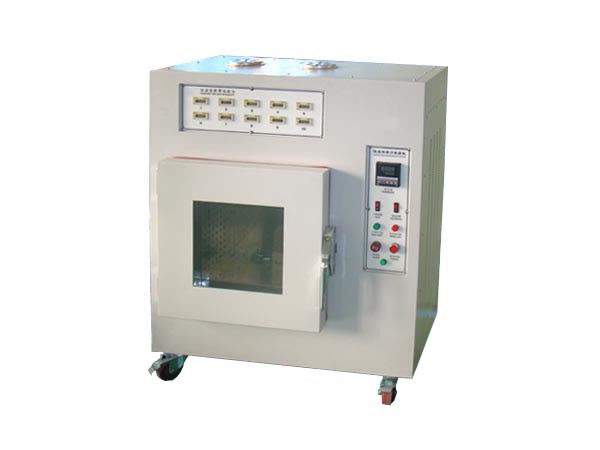

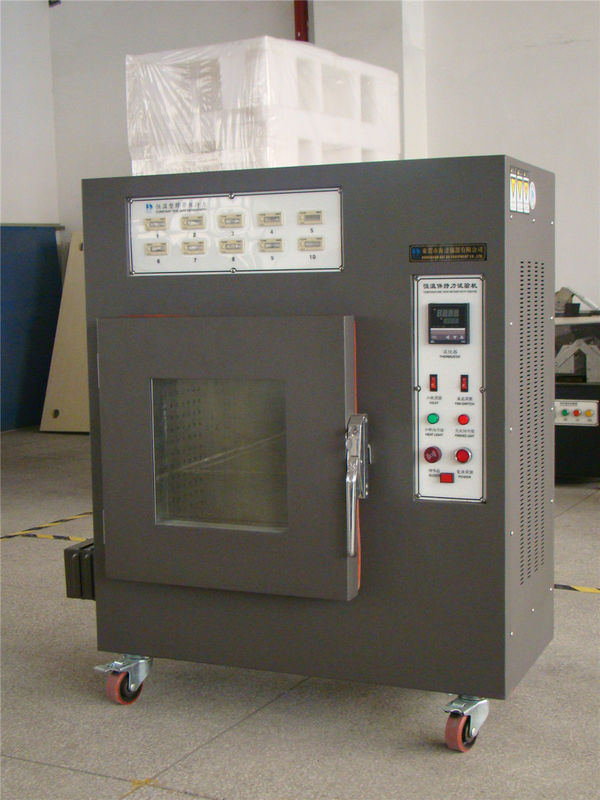

PID Control Rubber Testing Machine , Adhesive Tape Shear Adhesion Testing Equipment

Large Image :  PID Control Rubber Testing Machine , Adhesive Tape Shear Adhesion Testing Equipment

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-C527-1

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Port: ShenZhen Power: Electric
Warranty: 12 Months Power Supply: 1phase, AC220V, 15A
Weight: 105kg
High Light:

rubber hardness tester

,

rubber testing equipments



PID Control Rubber Testing Machine , Adhesive Tape Shear Adhesion Testing Equipment



Specifications

Adhesive tape shear adhesion testing machine
1.Temperature Controller:PID control
2.Safety Device:Overheating or power overload protection



1. Product description

Adhesive tape shear adhesion testing machine simulates the adhensive tape in hot temperature environment, and the auto-timer records the holding time of adhensive tape with specific load to confirm the effective time of adhension. The timer shall retain the tseting time automatically to assess the durability of adhensive tape in hot temperature enviroment when the tape falling down from the plate.



2. Specifications:



Adhesive tape shear adhesion testing machine

Model

HD-C527-1

Test Fixture

10 groups (Timing independently)

Load

1 Kg  or designated

Timer

10 sets, 9999.9 hours

Temperature Controller

Normal Temp.~200 °c, PID control

Accuracy

0.1 °c

Heating System

Hot Air Circulation

Safety Device

Overheating or electric power overload protection automatically

Material

Inside: Stainless Steel;
Outside: Advanced steel plate (paint handling)

Inside Dimension (L×W×H)

45×50×45 cm

Outside Dimension (L×W×H)

97×65×110 cm

Weight

105 Kg

Power

1phase, AC220V, 15A

Design Criteria

CNS-11887/11888; PSTC-7; GB/T 4851



 3. Maintenance of Adhesive tape shear adhesion testing machine



3.1, Clean: keep the instrument clean at any time and wipe it by cotton cloth before and after use.

3.2, Anti- rust: spray antirust oil one time on the metal part in the surface of the instrument(wipe it out after spray 2h) .

3.3,Lubrication oil: refuel lubrication oil on the instrument driving components(screw stem) at fixed time(common

 lubrication oil is ok).



4. Specimen preparation of Adhesive tape shear adhesion testing machine

After remove 3-5 rounds tape of the outmost lay of a roll of tape sample, unfasten the roll of sample with 300mm/min velocity (uncover isolated layer with same velocity if the specimen is sheet tape). Get the specimenwith width 25mm and length 100mm from central part of the tape in every 200mm distance. Unless otherwise specified, each group has more than 3 specimens. After unfasten the roll of the sample, Adhesive tape shear adhesion testing machine permits less than 3min to put if tensile deformation is large. In general, test the specimen at once after get it. Sticky part of the specimen can not be touched by hand and other things.
