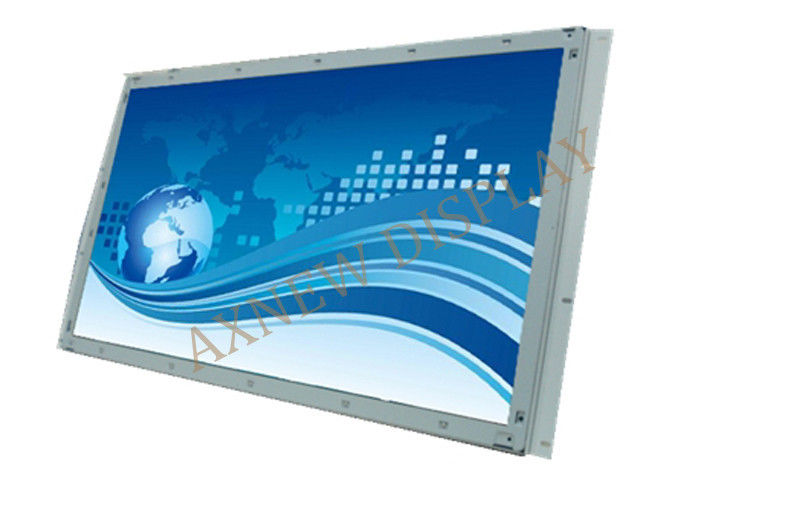

16:9 Wide Screen Advertising LCD Screens , Thin Film Transistor Monitor
Wide screen 27 inch 3000:1 high performance LCD open frame monitor with VGA DVI input slim and thin design with vesa mounting easily used for Gaming , Automatic equipments, Advertising , vending embedded system,Kiosks application etc.
Quick Details:
|
Model: AXD-27OPN1P1-V1 |
Screen Size:27’’ |
|
Screen format: 16:9 |
Display Resolution(pixel):1920x1080 |
|
Contrast Ratio:1000:1 |
Brightness:300cd/m^2 |
|
Storage temperature : -20℃~60℃ |
Input signal: VGA DVI |
|
Power Input: DC 12V |
Product status: Stock |
|
Features and Advantages |
|
High Resolution with high contract LCD in stable supply Slim and simple open frame to mount all the LCD kits in one , which is easily installed |
|
3. industrial control board supports the displays working 24 hours |
|
4. 178/178 wide viewing angle with high performance |
|
5. VGA DVI interfaces ; touch screen options if requested |
|
6. 27 inch open frame monitor for application control , advertising player ,campus and industrial terminals etc |
|
LCD monitor information |
|
|
Model Number |
AXD-27OPN1P1 |
|
27’’ open frame LED Monitor |
|
|
Type |
27’’TFT Active Matrix LCD with LED Backlight |
|
Active Display Area(mm) |
597.6 (H) x336.15(V) |
|
Pixel Pitch(mm) |
0.31125(H) x 0.31125(V) |
|
Number of pixels |
1920X1080 |
|
Contrast Ratio |
3000:1 (typ.) |
|
Display Color |
16.7M |
|
Brightness |
300(Typ) |
|
Viewing Angles |
178(H);178(V) |
|
Response Time |
18ms/7ms |
|
Environmental Temperature |
|
|
Operating Temperature |
0℃～50℃ |
|
Storage Temperature |
-20℃～60℃ |
|
Signal Input |
|
|
PC |
RGB analog(VGA,DVI-D) |
|
RGB Frequency |
H:31.5~38kHz, V:50~60Hz |
|
Power Specification |
|
|
Voltage Consumption |
AC 100~240V,Universal,±10% ; AC/DC 12V4A |
|
33W typical, normal operation |
|
|
Operating System |
DOS,WINDOWS9X/ME/2000/XP/2003/VISTA,LINUX |
|
DIMENSIONS |
|
|
Holes fixings |
Vesa mounting 100x100/ fixing holes on the right/left |
|
Mechanical dimensions |
686mmx388mmx36mm ( updated by customization) |
