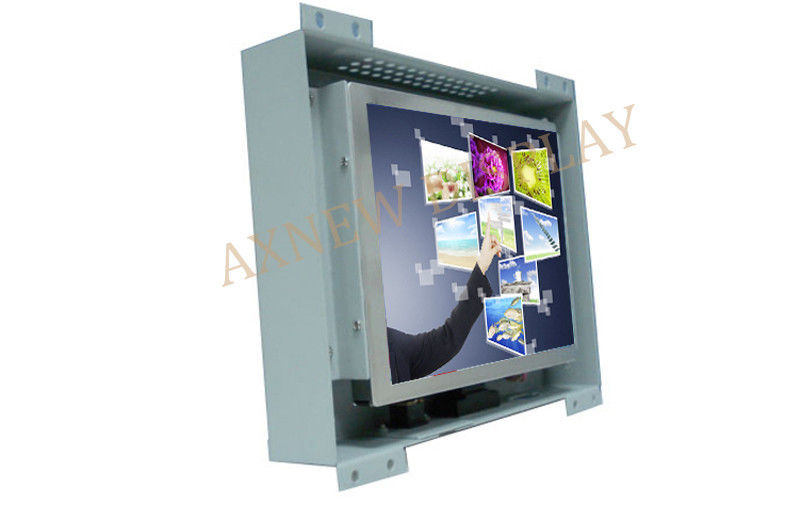

High Brightness 6.5" Sunlight Readable LCD Touch Screen Monitor
6.5 inch high brightness industrial LCD touch screen monitor with VGA input ( No touch) open frame with rugged mount design. 4 wire resistive touch screen lcd Sunlight readable 800nits for outdoors application, such as Automatic equipments, Gas station, advertising embedded system etc.
Quick Details:
|
Model: AXD-06OPN1P1-T1 |
Screen Size:6.5’’ |
|
Screen format: 4:3 |
Display Resolution(pixel):640x480 |
|
Contrast Ratio:500:1 |
Brightness:800cd/m^2 |
|
Storage temperature : -20℃~70℃ |
Input signal: VGA |
|
Power Input: DC 12V Touch Type: Resistive touch |
Product status: Stock |
|
Features and Advantages |
|
1.New and Industrial A grade perfect panels with stable supply |
|
2. industrial control board supports the displays working 24 hours |
|
3. Professional and industrial hardware and parts to guarantee its working normally in rough environment |
|
4. Industrial design to protect the LCD screen, mounting on the outdoor application |
|
5. VGA interfaces ;USB touch screen |
|
6. 6.5 inch Industrial touch LCD monitor for Gas application control and industrial terminals etc 7. Low consumption with high brightness 800nits. |
|
Display Specifications |
|
|
Display |
6.5" Color TFT Open Frame with touch screen |
|
Model Name |
AXD-06OPN1P1-T1 |
|
Active Display Area (mm) |
132.48 (H)x99.36(V) |
|
Pixel Pitch (mm) |
0.207(H)x0.207(V) |
|
Resolution (Pixel) |
VGA (640X480);16.2M colors |
|
Brightness (CD/m^2) |
800/m^2 |
|
Contrast Ratio |
500:1 |
|
Viewing Angle (CR >=10) |
140/120 |
|
Power consumption |
6.32 W typical, normal operation |
|
Touch Screen |
Resistive touch screen |
|
OSD Control |
On the back side |
|
I/O Connectors |
1x12v,1XVGA |
|
Power Input |
DC 12V,4A 48W |
|
Mechanical Specifications |
|
|
Construction |
steel chassis & Galvanized Color |
|
Dimensions |
199.5x 150.0x 33.5 (mm) |
|
Mounting |
Edge fixing installation |
|
Power source |
AC 100~240V/ 12V DC-4A |
|
Environment Specifications |
|
|
Operating Temperature |
-10~60℃ |
|
Storage Temperature |
-20~70℃ |
|
Rating |
Facilitate installation of the demolition, solid portfolio |
|
Ordering Information |
6.5” LCD with touch Monitor VGA input and power adapter |
