4:3 IR Multi-touch LCD Monitor

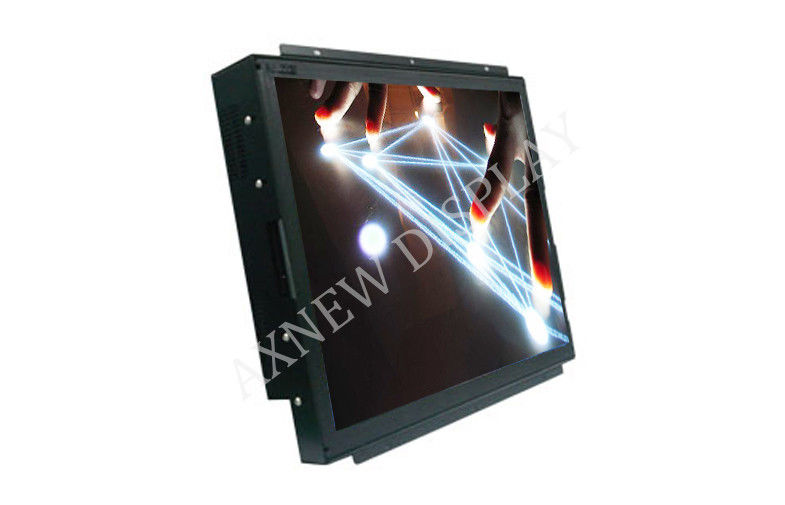

Large Image :  4:3 IR Multi-touch LCD Monitor

Product Details:

Place of Origin: China
Brand Name: HDT
Certification: ISO
Model Number: AXD-17OPEXT2-PRO(VGA/DVI)
Feature: slim|thin|mini
Installation: Rack Mount|Wall Mounting
Monitor type: Capacitive
Power Input: 12V
Product name: Multi-touch LCD Monitor
Brightness: 300cd/m^2
Contrast Ratio: 800:1
Pixel: 1280x1024
Screen format: 4:3
Screen Size: 17 inch

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: standard Packagingor customer's requirement
Delivery Time: 20 days
Payment Terms: T/T,L/C,Paypal
Detailed Product Description
High Light:

Outdoor LCD Monitor

,

Dual Touch Display



12V 4:3 IR Multi-touch LCD Monitor , 800:1 POS Touch Wide Screen





17’’ Projected capacitive touch screen  LCD open frame monitor with VGA DVI input. Anti-vandal with high and exact control for high requested working environment.

Projected capacitive touch with dual touch is new and popular touch technology for Medical industry , Automatic equipments, Advertising , vending embedded system, ATM application etc.



Quick Details:



Model: AXD-17OPEXT2-PRO
Screen Size:17’’
Screen format: 4:3
Display Resolution(pixel):1280x1024
Contrast Ratio:800:1
Brightness:300cd/m^2
Storage temperature : -20℃~70℃
Input signal: VGA DVI
Power Input: DC 12V
Touch Type: Projected capacitive touch
Product status: Stock



Features and Advantages




1. New and Industrial A grade perfect panels with stable supply
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI interfaces ; touch screen options
6. 17 inch open frame Projected capacitive touch is new and popular touch technology for Medical industry , Automatic equipments etc

Display Specifications



Display

17" Color TFT Projected Capacitive touch Monitor

Model Name

AXD-17OPEXT2-PRO

Active Display Area (mm)

337.920(H)x270.336(V)

Pixel Pitch (mm)

0.264(H)x0.264(V)

Resolution (Pixel)

XVGA (1280x1024) 16.7M

Brightness (CD/m^2)

300 nits

Contrast Ratio

800:1

Viewing Angle (CR >=10)

170/160

Power consumption

18.6 W typical, normal operation

Touch Screen

Projected Capacitive touch panel( USB Controller)

OSD Control

On the back side

I/O Connectors

1x12v,1XVGA,DVI-D(Optional)

Power Input

DC 12V,4A 48W

Mechanical Specifications



Construction

Steel housing & black  Color, anti-vandal

Dimensions

378.5 x 337.0x 50.0 (mm)

Mounting

Embedded ,up and down; left-right fixing holes, vesa75x75;100x100 Wall Mounting Optional

Power source

AC 100~240V/ 12V DC

Environment Specifications



Operating Temperature

0~50℃

Storage Temperature

-20~60℃

Rating

Facilitate installation of the demolition,solid portfolio

Ordering Information

17” projected capacitive touch monitor with VGA Input and power adapter
