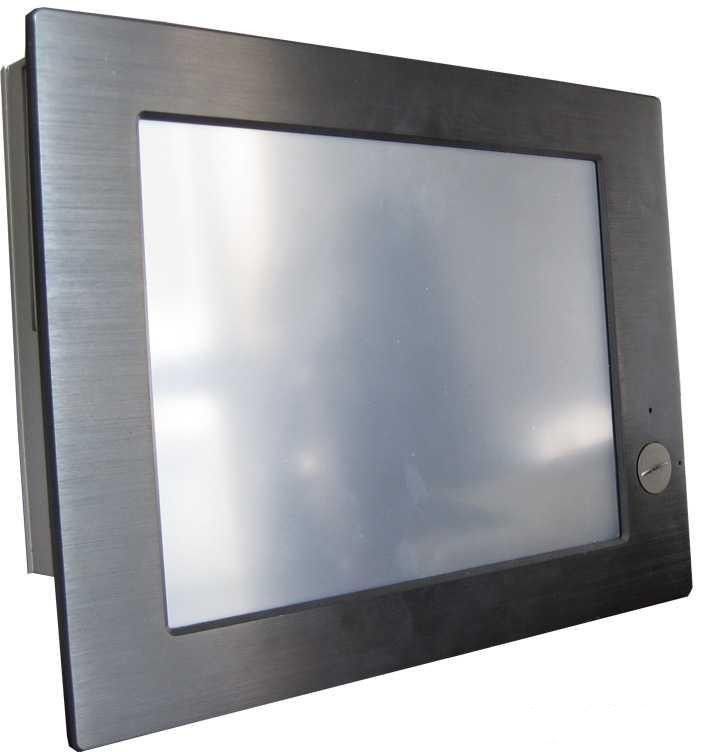

12V DC 10.4 Inch Diagonal OSD LED Backlight Screen Rotation Industrial LCD Display MID1004
Description:
Key Features
Various LCD sizes
Supports MIPS-based CPUs with 70~200MHz and 256~2G Byte flash memory size
Supports RTC, battery backup RAM, and Ethernet-based operator panels
Supports runtime data downloads through Serial, Ethernet, USB
Supports adjustable brightness controls via touch panel
Reliable firmware for industrial standard
Supports Windows XP/ Vista-based User/control interface Designer PC development tool, easy to study.
Easy to switch one application to different LCD sizes in seconds
Supports vertical and horizontal application screen rotation
Panel mounting for machinery.
Certifications CE, BSMI, CCC, UL, FCC Class A
General specifications:
4-wire resistive touch screen: USB interface (optional)
Supports high resolution up to 1,920 x 1,440 pixels (H x V) format
Automatic display adjustment
High-brightness LED backlight, minimal lifespan 20,000 hours
Loudspeakers: built-in
Full-function IR remote control
Multilingual OSD menu
Power consumption: ≤6W
Power input: 12V DC
Dimension: 280 x 210 x 60mm
Operating temperature: -15 to 65°C
Storage temperatures: -30 to 80°C
Weight: 0.42kg
LCD parameters:
10.4-inch diagonal TFT-LCD (new digital panel)
Backlight: LED
Resolution: 800 (H) x (RGB) x 600 (V) = 1,152,000 dots
Aspect ratio: 16:9
Contrast: 500:1
LCD brightness: 300cd/m2 (400cd/m2 optional)
Viewing angle: 70/70 (L/R), 50/70° (U/D)
Backlight Life: 50000 Hours
Touch screen:
Life span 1 million touches at single point
Light Transmission Above 75%
Resolution Linearity
Type 4-wire, analog resistive
Touch Panel Environment:
Humidity 10 ~ 95% RH @ 40° C, non-condensing
Ingress Protection Front panel: NEMA4, IP65
Operating Temperature 0 ~ 45° C (32 ~ 113° F)
Storage Temperature -20 ~ 60° C (-4 ~ 140° F)
Vibration Protection With HDD: 1Grms (5 ~ 500 Hz)
(Operating, random vibration)
I/O
RS-232 x 2
USB 2.0 x 1 (Host)
Line-out x 1
SD card x1
Micro-SD/TF cardx1
Accessories:
1x remote controller
1x touch pen
1x driver disc
1x instruction manual
Applications:
Automotive applications, Industrial running status and events displaying.
Low cost Industrial controllers
Low cost Human-machine-interfaces
Point-of-sales/vending machines/advertising machine
Specifications:
4-wire resistive touch screen: USB interface (optional)
Supports high resolution up to 1,920 x 1,440 pixels (H x V) format
Automatic display adjustment
High-brightness LED backlight, minimal lifespan 20,000 hours
Loudspeakers: built-in
Full-function IR remote control
Multilingual OSD menu
Power consumption: ≤6W
Power input: 12V DC
Dimension: 280 x 210 x 60mm
Operating temperature: -15 to 65°C
Storage temperatures: -30 to 80°C
Weight: 0.42kg
LCD parameters:
10.4-inch diagonal TFT-LCD (new digital panel)
Backlight: LED
Resolution: 800 (H) x (RGB) x 600 (V) = 1,152,000 dots
Aspect ratio: 16:9
Contrast: 500:1
LCD brightness: 300cd/m2 (400cd/m2 optional)
Viewing angle: 70/70 (L/R), 50/70° (U/D)
Back Light Life: 50000 Hours
Touch screen:
Life span 1 million touches at single point
Light Transmission Above 75%
Resolution Linearity
Type 4-wire, analog resistive
Touch Panel Environment:
Humidity 10 ~ 95% RH @ 40° C, non-condensing
Ingress Protection Front panel: NEMA4, IP65
Operating Temperature 0 ~ 45° C (32 ~ 113° F)
Storage Temperature -20 ~ 60° C (-4 ~ 140° F)
Vibration Protection With HDD: 1Grms (5 ~ 500 Hz)
(Operating, random vibration
