Product Details:
Payment & Shipping Terms:
|
| Screen Size: | 17 Inch | Pixel: | 1280X1024 |
|---|---|---|---|
| Contrast Ratio: | 1000:1 | Brightness: | 250nits/350nits |
| Input Signal: | VGA/DVI | Viewing Angles: | 170(H)/160(V) |
| Monitor Type: | Built-in Industrial LCD Monitor | Application: | Automation|Kiosk|Gaming|Medical |
| Feature: | Rugged Housing/ Aluminum Front Bezel/ A Grade Industrial Panels | ||
| High Light: | advertising lcd monitor,Industrial Tablet PC |
||

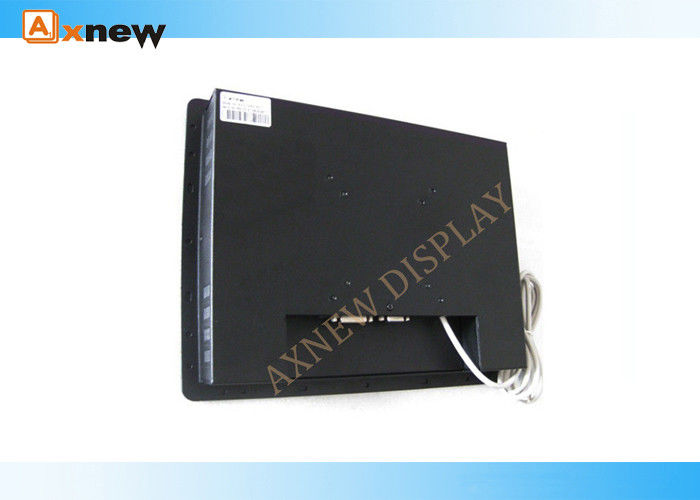

17" 1280x1024 Rack Mount Slim Industrial LCD Display 4:3 IR water proof IP65 Touch Screen
17 inch 4:3 format industrial LCD monitor with VGA input Aluminum front bezel with rugged frame design, which is highly appreciated used in the Shopping Mall, senior Club Automatic equipments, Gas station, advertising embedded system etc.
IR Touch with IP65 anti-vandal mounts on the front panel for options.
Quick Details:
Model: AXD-17OPIPN1P1-T4
Screen Size:17’’
Screen format: 4:3
Display Resolution(pixel):1280X1024
Contrast Ratio:800:1
Brightness:300cd/m^2
Storage temperature : -10℃~70℃
Input signal: VGA DVI
Power Input: AC100~240 V/DC 12V
Touch Type: IR Touch options
Features and Advantages
1. New and Industrial A grade perfect panels with stable supply
2. industrial control board supports the displays working 24 hours
3. Professional and industrial hardware and parts to guarantee its working normally in rough environment, Aluminum Front Bezel with rugged housing
4. Industrial design to protect the LCD screen, mounting on the outdoor application
5. VGA DVI interfaces , IR Touch anti-vandal to protect the LCD
|
Display |
17" Color Industrial Monitor with IR touch (Anti-vandal) |
|
Model Name |
AXD-17OPIPN1P1-IR |
|
Active Display Area (mm) |
337.92(H)x270.33(V) |
|
Pixel Pitch (mm) |
0.264(H)x0.264(V) |
|
Resolution (Pixel) |
VGA (1280X1024) 262K/16.2M Color |
|
Brightness (CD/m^2) |
300cd/m^2 |
|
Contrast Ratio |
800:1 |
|
Viewing Angle (CR >=10) |
160/160 |
|
Power consumption |
25.8W typical, normal operation |
|
Touch Screen |
IR Touch ;RS232/USB(Optional) |
|
OSD Control |
On the back side |
|
I/O Connectors |
1x12v,1XVGA,DVI-D(Optional) |
|
Power Input |
DC 12V,4A 48W |
|
Mechanical Specifications |
|
|
Construction |
Aluminum front bezel &Black Color |
|
Dimensions |
440.50 x 354.60x 56.80 (mm) |
|
Mounting |
Embedded ,VESA Mounting Optional |
|
Power source |
AC 100~240V/ 12V DC |
|
Environment Specifications |
|
|
Operating Temperature |
-20~80℃ |
|
Storage Temperature |
-30~80℃ |
|
Rating |
Facilitate installation of the demolition,solid portfolio |
|
Ordering Information |
17” IP Monitor with VGA input and power adapter |
Packaging & Delivery
|
Packing details |
1x 17 inch Industrial LCD display; Packed in2 pieces/carton with protection foam Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter |
|
Delivery terms |
7- working days for stock products after receiving payments; 15 working days for order production |
