| Screen Size: | 17 Inch | Pixel: | 1280X1024 |
|---|---|---|---|
| Contrast Ratio: | 1000:1 | Brightness: | 300nits |
| Input Signal: | VGA/DVI | Viewing Angles: | 170(H)/160(V) |
| Monitor Type: | 17 Inch Industrial LCD Monitor | Application: | Kiosk|Gaming|Medical |
| Feature: | Panelmount Up To IP65, Protective Glass 2mm Options | ||
| Highlight: | advertising lcd monitor,Industrial Tablet PC |
||

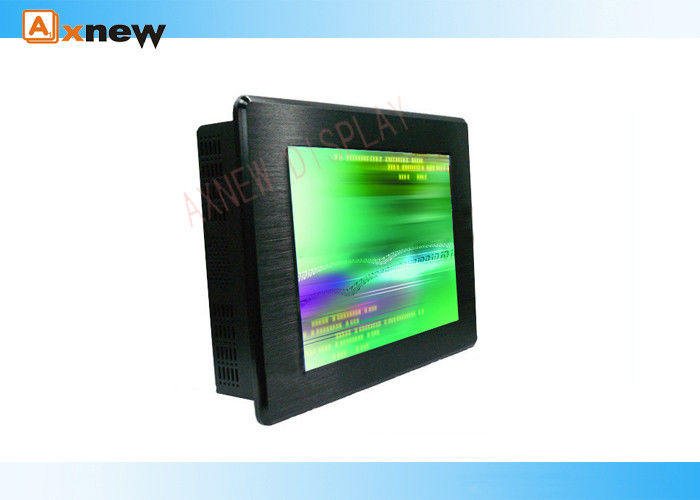

17 Inch Industrial LCD Display 4:3 1280x1024 DDC2B 43.2 cm Monitor
17 inch 4:3 format industrial LCD monitor with VGA input Aluminum front bezel with rugged frame design, which is highly appreciated used in the Shopping Mall, senior Club Automatic equipments, Gas station, advertising embedded system etc.
Quick Details:
Model: AXD-17OPIPN1P1-V4
Screen Size:17’’
Screen format: 4:3
Display Resolution(pixel):1280X1024
Contrast Ratio:1000:1
Brightness:300cd/m^2
Storage temperature : -10℃~70℃
Input signal: VGA DVI
Power Input: AC100~240 V/DC 12V
Touch Type: IR Touch /Protective glass
Product status: In production
Features and Advantages
1. New and Industrial A grade perfect panels with stable supply
2. industrial control board supports the displays working 24 hours
3. Professional and industrial hardware and parts to guarantee its working normally in rough environment, Aluminum Front Bezel with rugged housing
4. Industrial design to protect the LCD screen, mounting on the outdoor application
5. VGA DVI interfaces , If needed, IR Touch anti-vandal to protect the LCD
|
Display |
17" Color Industrial Monitor |
|
Model Name |
AXD-17OPIPN1P1-V4 |
|
Active Display Area (mm) |
337.92(H)x270.33(V) |
|
Pixel Pitch (mm) |
0.264(H)x0.264(V) |
|
Resolution (Pixel) |
VGA (1280X1024) 262K/16.2M Color |
|
Brightness (CD/m^2) |
300cd/m^2 |
|
Contrast Ratio |
1000:1 |
|
Viewing Angle (CR >=10) |
170/160 |
|
Power consumption |
25.8W typical, normal operation |
|
Touch Screen |
IR Touch ;RS232/USB(Optional) |
|
OSD Control |
On the back side |
|
I/O Connectors |
1x12v,1XVGA,DVI-D(Optional) |
|
Power Input |
DC 12V,4A 48W |
|
Mechanical Specifications |
|
|
Construction |
Aluminum front bezel &Black Color |
|
Dimensions |
440.50 x 354.60x 56.80 (mm) |
|
Mounting |
Embedded ,VESA Mounting Optional |
|
Power source |
AC 100~240V/ 12V DC |
|
Environment Specifications |
|
|
Operating Temperature |
-10~70℃ |
|
Storage Temperature |
-10~70℃ |
|
Rating |
Facilitate installation of the demolition,solid portfolio |
|
Ordering Information |
17” IP Monitor with VGA input and power adapter |
Packaging & Delivery
|
Packing details |
1x 17 inch Industrial LCD display; |
|
Delivery terms |
7- working days for stock products after receiving payments; 15 working days for order production |
