Product Details:
Payment & Shipping Terms:
|
| Screen Size: | 12.1 Inch | Pixel: | 800X600 |
|---|---|---|---|
| Contrast Ratio: | 700:1 | Brightness: | 450nits |
| Input Signal: | VGA/DVI | Viewing Angles: | 160(H)/140(V) |
| Monitor Type: | 12.1 Inch Industrial Monitor | ||
| High Light: | Industrial Tablet PC,Wall Mounting Monitor |
||

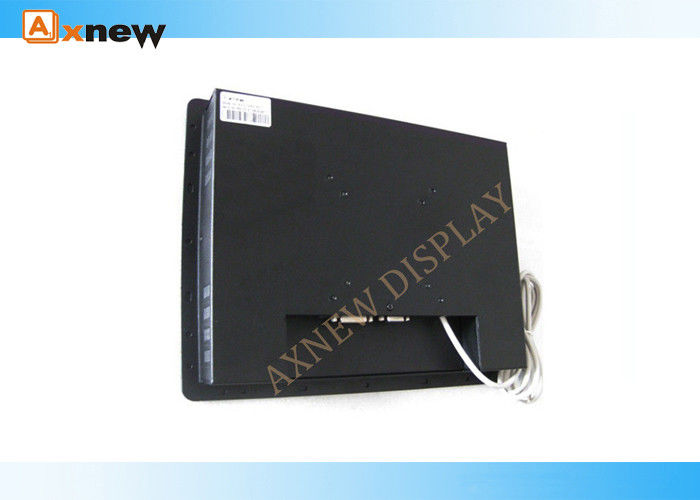

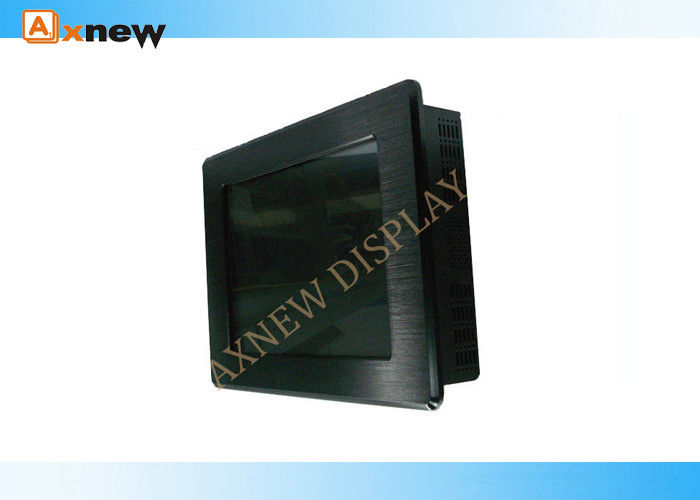

12.1" Color TFT Screen 4:3 Industrial LCD Display RGB Monitor For Vesa Mounting
12.1 inch 4:3 format industrial LCD monitor with VGA input Aluminum front bezel with rugged frame design. such as Automatic equipments, Gas station, advertising embedded system etc.
Quick Details:
Model: AXD-12OPIPN1P2
Screen Size:12’’
Screen format: 4:3
Display Resolution(pixel):800X600
Contrast Ratio:700:1
Brightness:450cd/m^2
Storage temperature : -30℃~85℃
Input signal: VGA DVI
Power Input: AC100~240 V/DC 12V
Product status:In production
Features and Advantages
1.New and Industrial A grade perfect panels with stable supply
2. industrial control board supports the displays working 24 hours
3. Professional and industrial hardware and parts to guarantee its working normally in rough environment, Aluminum Front Bezel with rugged housing
4. Industrial design to protect the LCD screen, mounting on the outdoor application
5. VGA DVI interfaces
|
Display Specifications |
|
|
Display |
12.1" Color TFT Industrial Monitor |
|
Model Name |
AXD-12OPIPN1P2 |
|
Active Display Area (mm) |
246 (H)x184.5(V) |
|
Pixel Pitch (mm) |
0.3075(H)x0.3075(V) |
|
Resolution (Pixel) |
SVGA (800X600) 262K/16.2M Color |
|
Brightness (CD/m^2) |
450cd/m^2 |
|
Contrast Ratio |
700:1 |
|
Viewing Angle (CR >=10) |
160/140 |
|
Power consumption |
15W typical, normal operation |
|
Touch Screen |
Resistive ;IR Touch ;RS232/USB(Optional) |
|
OSD Control |
On the back side |
|
I/O Connectors |
1x12v,1XVGA,DVI-D(Optional) |
|
Power Input |
DC 12V,4A 48W |
|
Mechanical Specifications |
|
|
Construction |
Aluminum front bezel &Black Color |
|
Dimensions |
351.0 x 265.0x 56.0(mm) |
|
Mounting |
Embedded ,Wall Mounting Optional |
|
Power source |
AC 100~240V/ 12V DC |
|
Environment Specifications |
|
|
Operating Temperature |
-20~80℃ |
|
Storage Temperature |
-30~85℃ |
|
Rating |
Facilitate installation of the demolition,solid portfolio |
|
Ordering Information |
12.1” IP Monitor with VGA input and power adapter |
Packaging & Delivery
|
Packing details |
1x 12.1 inch Industrial LCD display; |
|
Delivery terms |
7- working days for stock products after receiving payments; 15 working days for order production |
