Digital graphic LCD display

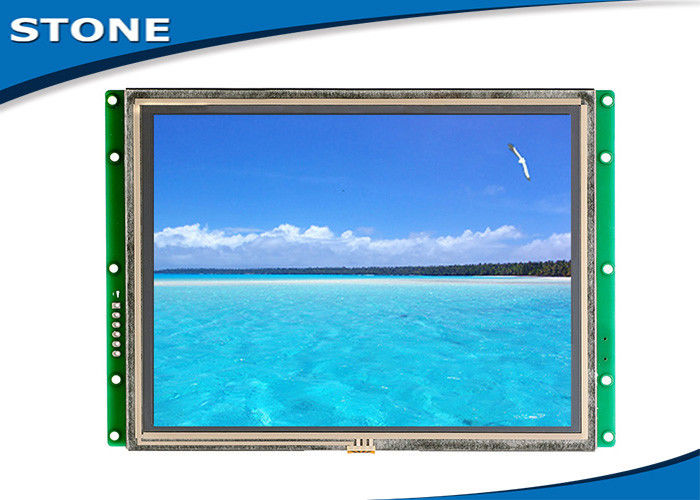

Large Image :  Digital graphic LCD display

Product Details:

Place of Origin: China
Brand Name: STONE
Certification: FCC, CE, RoHS, ISO9001:2008
Model Number: STI080WT-01

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: Box carton
Payment Terms: T/T, Western Union, Paypal
Detailed Product Description
Size: 8.0" Color: 65 K
Resolution: 800*600 Display Scale: 4:3
Backlight: LED Interface: RS232/RS485/CMOS/USB
CPU: Cortex LCD Class: A
High Light:

replacement lcd screen

,

tft lcd modules

8" digital graphic LCD display with 65K colors touch screen controlled by any MCU

Product Description
1. Controlled by Any MCU via simple "Command Sets"
2.Used as Touch-screeen controller & TFT-LCD display system
3. Low cost and good quality.

Working Principle
The TFT-LCD Module communicates with the main controller via the command, then the main controller would control the machine to work after receiving the commands.
Please note: The Main controller can be designed by engineer with Any MCU.

Product Parameter
Model: STI080WT-01 (Industrial Type)

Physical Parameter

 Model

 STI080WT-01

 Size (Inch)

 8.0"

 Resolution

 800×RGB×600

 Pixel Spacing

 0.1905 mm × 0.0635 mm (H×V)

 Color

 65536 colors (16 bit)

 Viewing Area

 162.0 mm × 121.5mm

 Display Dimension

 164.0 mm × 123.5mm

 Overall Dimension

 204.8mm × 142.4mm × 20 mm(N)/ 22 mm(T)

 Net Weight

 435g(N)/ 550g(T)

 TFT Panel

 A Level Industry Panel

 Touch Screen

 Industry Level 4 wire resistance
 Or without touch screen is optional.

Backlight Parameter

 Backlight Type

 LED

 Brightness

 300 cd/m2
 (Brightness can be adjustable in 100 levels.)

 Contrast

 500:1

 Backlight life

 30,000 hours

 Viewing Angle

 70°/ 70°/ 50°/ 70° (L/R/U/D)

 Working Temperature

 -20°C ~ +70°C

 Working Humidity

 60°C, 90%

 Storage Temperature

 -30°C ~ +85°C

 Screen Mode

 Digital

Performance Parameter

 CPU

 CortexM3 STM32F103

 LCD Controller

 CPLD EPM240

 Refresh Rate

 60Hz

 Picture Switching Speed

 47 ms/picture (21 pictures/s)

 Flash Memory

 Standard 2GB, Extension 4GB

 Memory Amount for picture

 236 images

 Interface

 RS232/ TTL UART Interface
 (Extend to RS485 so on.)

 Pictures downloading

 MiniUSB2.0 (12Mbps) & SD card

 Voltage Range

 DC4.5V ~ 20V (typical value: 12V)

 Power

 4W

Test Report

 MTBF

 4,250,000H

 Working Temperature

 -30°C ~ +85°C

 Air Humidity

 60°C, 90%

 Continuous Vibration Testing

 10-55Hz, 1.5mm, 10G

 Impact Acceleration Testing

 6ms, 100G

 ESD Testing

 10KV

 Radiation Reliability Testing

 44W


Advantages

 With CPU & Driving Device

 Controlled by Any MCU

 Display Picture/ Text/ Curve via Commands

 65536 colour TFT display

 Touch Screen

 RS232/ RS485/ TTL UART Interface & USB port

 Wide voltage range

 Widely Used in many various Industrial Field

 Easy to Use! Powerful Function! Saving Cost and Time!

 Used as Touch-controller, TFT-LCD display system, etc.



 Software Description
We offer you 3 simple softwares to work with TFT-LCD Module.
1. Assistant software: To upload pictures and files into TFT-LCD Module, and demonstrate the commands.
2. Touch Control software: To create the control file.
3. Font software: To create the font file.
