Product Details:
Payment & Shipping Terms:
|
| Model: | STA084WT-01 | Size (Inch): | 8.4’’ |
|---|---|---|---|
| Resolution: | 800×RGB×600 | Pixel Spacing: | 0.1905mm×0.0635mm （H×V） |
| Color: | 65536 Colors （16 Bit） | Viewing Area: | 165.0mm×124.5mm |
| High Light: | serial lcd display module,tft lcd modules |
||
Advantages
|
With CPU & Driving Device |
|
Controlled by Any MCU |
|
Display Picture/ Text/ Curve via Commands |
|
65536 colour TFT display |
|
Touch Screen |
|
RS232/ RS485/ TTL UART Interface & USB port |
|
Wide voltage range |
|
Widely Used in many various Industrial Field |
|
Easy to Use! Powerful Function! Saving Cost and Time! |
|
Used as Touch-controller, TFT-LCD display system, etc. |
All Models
|
Main Size of TFT LCD Module |
|
|
Size |
Resolution |
|
3.5” |
320×RGB×240 |
|
4.3’’ |
480×RGB×272 |
|
5.0” |
640×RGB×480 |
|
5.6’’ |
640×RGB×480 |
|
5.7” |
640×RGB×480 |
|
6.5’’ |
640×RGB×480 |
|
7.0’’ |
800×RGB×480 |
|
8.0’’ |
800×RGB×600 |
|
8.4’’ |
800×RGB×600 |
|
10.2’’ |
1024×RGB×600 |
|
10.4’’ |
800×RGB×600 |
|
12.1’’ |
1024×RGB×768 |
|
15.0’’ |
1024×RGB×768 |
|
15.6’’ |
1366×RGB×768 |
|
18.5” |
1366×RGB×768 |
Product Description
1. Used as Touch-controller & TFT-LCD display system
2. Controlled by Any MCU via simple "Command Sets"
3. Low Cost HMI device
Operation
1. Design a group of "Graphical User Interface" that you need.
2. Connect your equipment with our TFT-LCD Module by RS232, RS485 port or TTL Logic directly.(Don't need any driver program)
3. Write a control program for any MCU to work the TFT-LCD Module via "Command Sets".
Software Description
We offer you 3 simple softwares to work with TFT-LCD Module.
1. Assistant software: To upload pictures and files into TFT-LCD Module, and demonstrate the commands.
2. Touch Control software: To create the control file.
3. Font software: To create the font file.
Technical Data
|
Physical Parameter |
Model: |
STA084WT-01 |
|
Size (Inch): |
8.4’’ |
|
|
Resolution: |
800×RGB×600 |
|
|
Pixel Spacing: |
0.1905mm×0.0635mm (H×V) |
|
|
Color: |
65536 colors (16 bit) |
|
|
Viewing Area: |
165.0mm×124.5mm |
|
|
Overall Dimension: |
190mm×112.0mm×16.5mm(N)/18.5mm(T) |
|
|
Net Weight: |
435g(N)/515g(T) |
|
|
TFT Panel: |
A+ Level Industry Panel |
|
|
Touch Screen: |
Industry Level 4 wire resistance Or without touch screen is optional. |
|
|
|
||
|
Backlight Parameter |
Backlight Type: |
LED |
|
Brightness: |
600cd/m2 (Brightness can be adjustable in 100 levels.) |
|
|
Contrast: |
500:1 |
|
|
Backlight life: |
100000 hours |
|
|
Viewing Angle: |
70°/70°/50°/70°(L/R/U/D) |
|
|
Working Temperature: |
-30℃ ～ +85℃ |
|
|
Working Humidity: |
60℃,90% |
|
|
Storage Temperature: |
-30℃ ～ +85℃ |
|
|
Screen Mode: |
Digital |
|
|
|
||
|
Performance Parameter |
CPU: |
CortexM3 STM32F103 200MHz |
|
LCD Controller: |
CPLD EPM240 |
|
|
Refresh Rate: |
60Hz |
|
|
Picture Switching Speed: |
46 ms/picture (22 pictures/s) |
|
|
Flash Memory: |
Standard 2GB,Extension 4GB |
|
|
Memory Amount for picture: |
236 images |
|
|
Interface: |
RS232 /TTL UART Interface (Extend to RS485 so on.) |
|
|
Pictures downloading: |
MiniUSB2.0 (12Mbps) |
|
|
Voltage Range: |
DC4.5V ～ 35V (Typical value: 12V) |
|
|
Power: |
4.0W |
|
|
Test Report |
|
|
MTBF: |
4,250,000 H |
|
Working Temperature: |
-30℃ ～ +85℃ |
|
Air Humidity: |
60℃,90% |
|
Continuous Vibration Testing: |
10-55Hz,1.5mm,10G |
|
Impact Acceleration Testing: |
6ms,100G |
|
ESD Testing: |
10KV |
|
Radiation Reliability Testing |
44W |

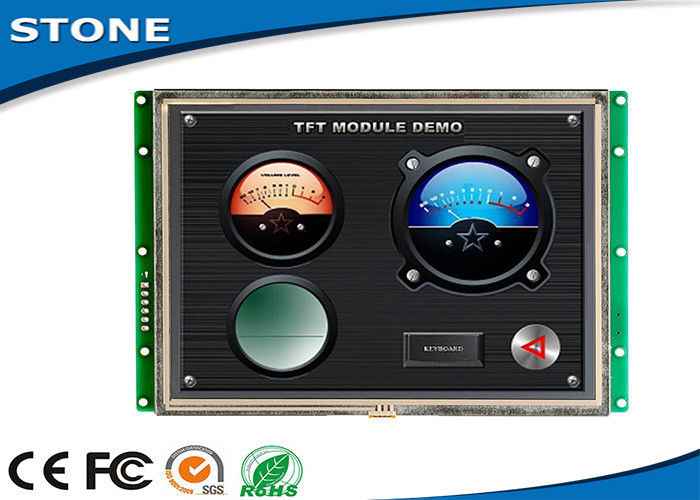

Product pictures
