4.3 inch touch screen TFT industrial LCD display led backlight module

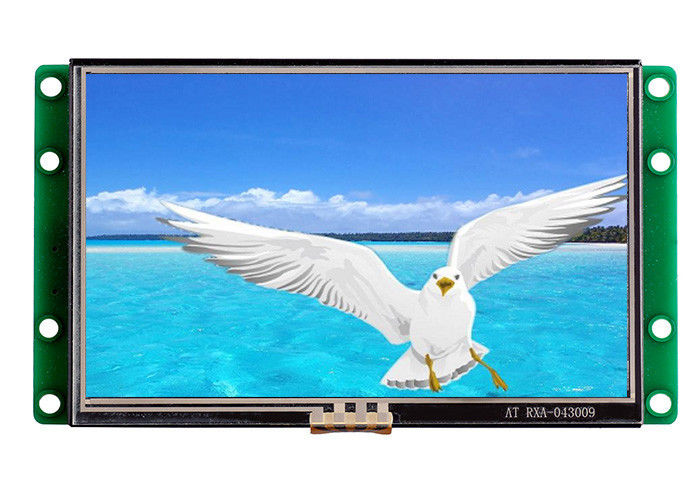

Large Image :  4.3 inch touch screen TFT industrial LCD display led backlight module

Product Details:

Place of Origin: China
Brand Name: STONE
Certification: FCC, CE, RoHS, ISO9001:2008
Model Number: STI043WT-01

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: Box carton
Payment Terms: T/T, Western Union, Paypal
Detailed Product Description
Size: 4.3" Color: 65 K
Resolution: 480*272 Display Scale: 16:9
Backlight: LED Interface: RS232/RS485/CMOS/USB
CPU: Cortex LCD Class: A
High Light:

replacement lcd screen

,

serial lcd display module

4.3 inch touch screen Industrial LCD Display , TFT led backlight module


Product Description
1. Controlled by Any MCU via simple "Command Sets"
2. Used as Touch-screeen controller & TFT-LCD display system
3. Low Cost and good quality.
4. We offer you 3 easy software to run our products.

Software Description
We offer you 3 simple softwares to work with TFT-LCD Module.
1. Assistant software: To upload pictures and files into TFT-LCD Module, and demonstrate the commands.
2. Touch Control software: To create the control file.
3. Font software: To create the font file.

Product Parameter
Model: STI043WT-01 (Industrial Type)

Physical Parameter

 Model

 STI043WT-01

 Size (Inch)

 4.3"

 Resolution

 480×RGB×272

 Pixel Spacing

 0.1905 mm × 0.0635 mm (H×V)

 Color

 65536 colors (16 bit)

 Viewing Area

 95.04 mm × 53.86mm

 Display Dimension

 97.1 mm × 56mm

 Overall Dimension

 120.4 mm × 68.6 mm × 15.5 mm(N)/ 18 mm(T)

 Net Weight

 115g(N)/ 155g(T)

 TFT Panel

 A Level Industry Panel

 Touch Screen

 Industry Level 4 wire resistance
 Or without touch screen is optional.

Backlight Parameter

 Backlight Type

 LED

 Brightness

 300 cd/m2
 (Brightness can be adjustable in 100 levels.)

 Contrast

 500:1

 Backlight life

 30,000 hours

 Viewing Angle

 75°/ 75°/ 60°/ 70° (L/R/U/D)

 Working Temperature

 -20°C ~ +70°C

 Working Humidity

 60°C, 90%

 Storage Temperature

 -20°C ~ +70°C

 Screen Mode

 Digital

Performance Parameter

 CPU

 CortexM3 STM32F103

 LCD Controller

 CPLD EPM240

 Refresh Rate

 60Hz

 Picture Switching Speed

 19 ms/picture (53 pictures/s)

 Flash Memory

 Standard 1GB, Extension 2GB

 Memory Amount for picture

 456 images

 Interface

 RS232/ TTL UART Interface
 (Extend to RS485 so on.)

 Pictures downloading

 MiniUSB2.0 (12Mbps)

 Voltage Range

 DC4.5V ~ 20V (typical value: 12V)

 Power

 1.5W

Test Report

 MTBF

 4,250,000H

 Working Temperature

 -30°C ~ +85°C

 Air Humidity

 60°C, 90%

 Continuous Vibration Testing

 10-55Hz, 1.5mm, 10G

 Impact Acceleration Testing

 6ms, 100G

 ESD Testing

 10KV

 Radiation Reliability Testing

 44W

 Advantages

 With CPU & Driving Device

 Controlled by Any MCU

 Display Picture/ Text/ Curve via Commands

 65536 colour TFT display

 Touch Screen

 RS232/ RS485/ TTL UART Interface & USB port

 Wide voltage range

 Widely Used in many various Industrial Field

 Easy to Use! Powerful Function! Saving Cost and Time!

 Used as Touch-controller, TFT-LCD display system, etc.


Other Models

Main Size of TFT LCD Module

 Size

 Resolution

 3.5"

 320*240

 4.3"

 480*272

 5"

 640*480; 480*272; 800*480

 5.6"

 640*480

 7"

 800*480; 800*600; 1024*600

 8"

 800*600; 800*480; 1024*768

 9"

 800*480

 10.4"

 800*600

 12.1"

 800*600

 15.1"

 1024*768


Working Principle
The TFT-LCD Module communicates with the main controller via the command, then the main controller would control the machine to work after receiving the commands.
Please note: The Main controller can be designed by engineer with Any MCU.
