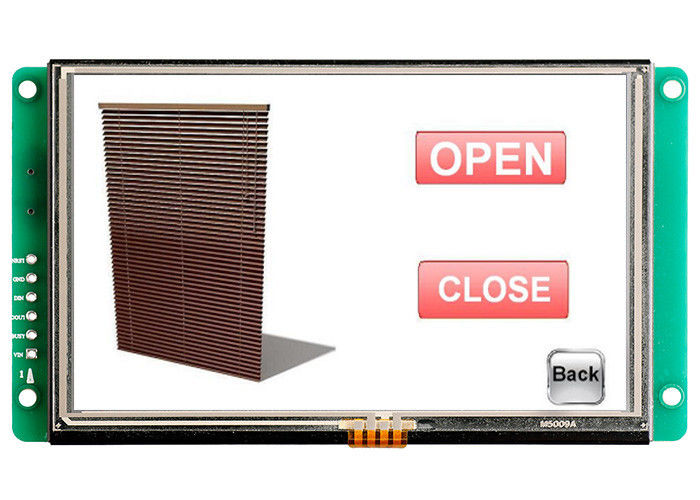

Rs232 Industrial Replacement LCD Screen CPU For Water Treatment Equipment
Product Description
1. Controlled by Any MCU via simple "Command Sets"
2. Used as Touch-screeen controller & TFT-LCD display system
3. 3 easy software to help you run our product.
Working Principle
The TFT-LCD Module communicates with the main controller via the command, then the main controller would control the machine to work after receiving the commands.
Please note: The Main controller can be designed by engineer with Any MCU.
Software Description
We offer you 3 simple softwares to work with TFT-LCD Module.
1. Assistant software: To upload pictures and files into TFT-LCD Module, and demonstrate the commands.
2. Touch Control software: To create the control file.
3. Font software: To create the font file.
Product Parameter
Model: STI050WT-01 (Industrial Type)
|
Physical Parameter |
|
|
Model |
STI050WT-01 |
|
Size (Inch) |
5.0" |
|
Resolution |
640×RGB×480 |
|
Pixel Spacing |
0.1905 mm × 0.0635 mm (H×V) |
|
Color |
65536 colors (16 bit) |
|
Viewing Area |
101.57 mm × 76.18mm |
|
Display Dimension |
104 mm × 78.6mm |
|
Overall Dimension |
131 mm × 101 mm × 15.6 mm(N)/ 16.5 mm(T) |
|
Net Weight |
195g(N)/ 200g(T) |
|
TFT Panel |
A Level Industry Panel |
|
Touch Screen |
Industry Level 4 wire resistance Or without touch screen is optional. |
|
Backlight Parameter |
|
|
Backlight Type |
LED |
|
Brightness |
250 cd/m2 (Brightness can be adjustable in 100 levels.) |
|
Contrast |
500:1 |
|
Backlight life |
30,000 hours |
|
Viewing Angle |
70°/ 70°/ 50°/ 70° (L/R/U/D) |
|
Working Temperature |
-20°C ~ +70°C |
|
Working Humidity |
60°C, 90% |
|
Storage Temperature |
-30°C ~ +85°C |
|
Screen Mode |
Digital |
|
Performance Parameter |
|
|
CPU |
CortexM3 STM32F103 |
|
LCD Controller |
CPLD EPM240 |
|
Refresh Rate |
60Hz |
|
Picture Switching Speed |
30 ms/picture (33pictures/s) |
|
Flash Memory |
Standard 2GB, Extension 4GB |
|
Memory Amount for picture |
314 images |
|
Interface |
RS232/ TTL UART Interface (Extend to RS485 so on.) |
|
Pictures downloading |
MiniUSB2.0 (12Mbps) |
|
Voltage Range |
DC5.0V ~ 20V (typical value: 12V) |
|
Power |
3.0W |
|
Test Report |
|
|
MTBF |
4,250,000H |
|
Working Temperature |
-30°C ~ +85°C |
|
Air Humidity |
60°C, 90% |
|
Continuous Vibration Testing |
10-55Hz, 1.5mm, 10G |
|
Impact Acceleration Testing |
6ms, 100G |
|
ESD Testing |
10KV |
|
Radiation Reliability Testing |
44W |
Advantages
|
With CPU & Driving Device |
|
Controlled by Any MCU |
|
Display Picture/ Text/ Curve via Commands |
|
65536 colour TFT display |
|
Touch Screen |
|
RS232/ RS485/ TTL UART Interface & USB port |
|
Wide voltage range |
|
Widely Used in many various Industrial Field |
|
Easy to Use! Powerful Function! Saving Cost and Time! |
|
Used as Touch-controller, TFT-LCD display system, etc. |
Other Models
|
Main Size of TFT LCD Module |
|
|
Size |
Resolution |
|
3.5" |
320*240 |
|
4.3" |
480*272 |
|
5" |
640*480; 480*272; 800*480 |
|
5.6" |
640*480 |
|
7" |
800*480; 800*600; 1024*600 |
|
8" |
800*600; 800*480; 1024*768 |
|
9" |
800*480 |
|
10.4" |
800*600 |
|
12.1" |
800*600 |
|
15.1" |
1024*768 |
