Portable 100 Channels LCD Display Ultrasonic Flaw Detector MFD650C

Portable 100 Channels LCD Display Ultrasonic Flaw Detector MFD650C

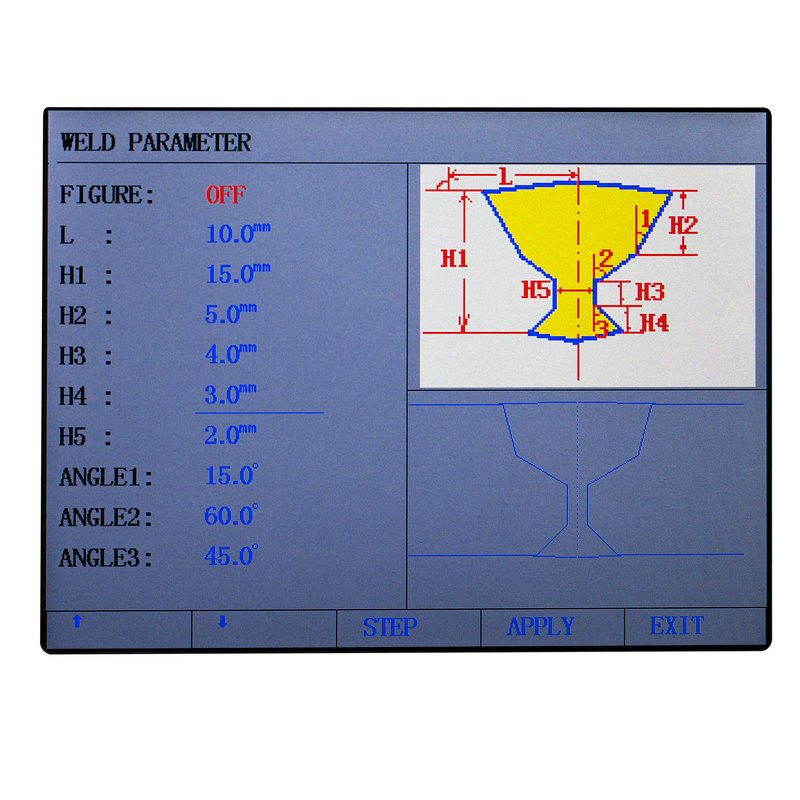

Ultrasonic Flaw Detector MFD650C AWS standard B scan

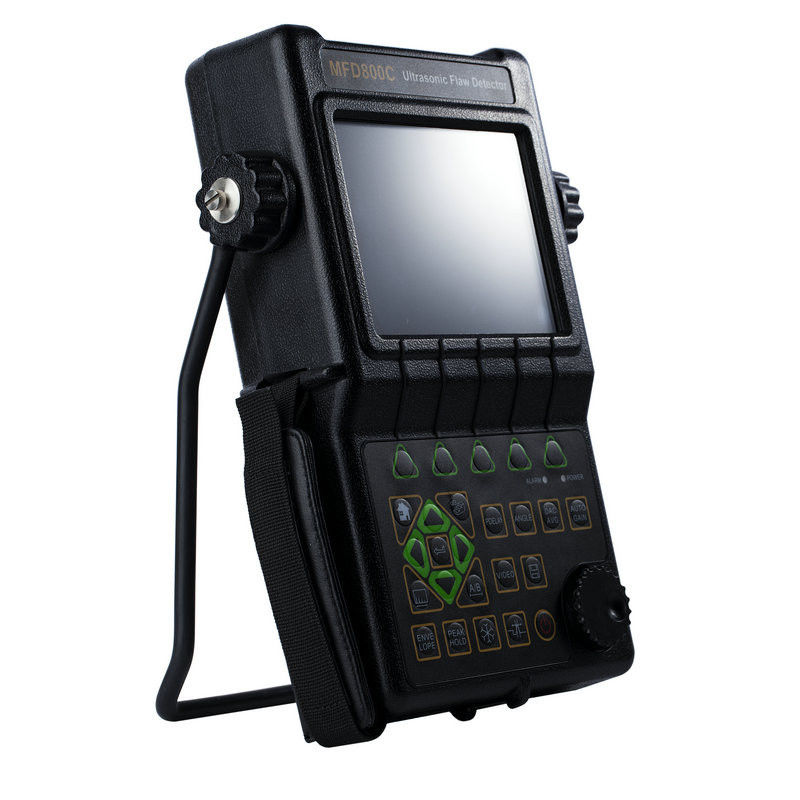

Description:

MFD650C Portable Ultrasonic Flaw Detector with hi-resolution color TFT LCD display.

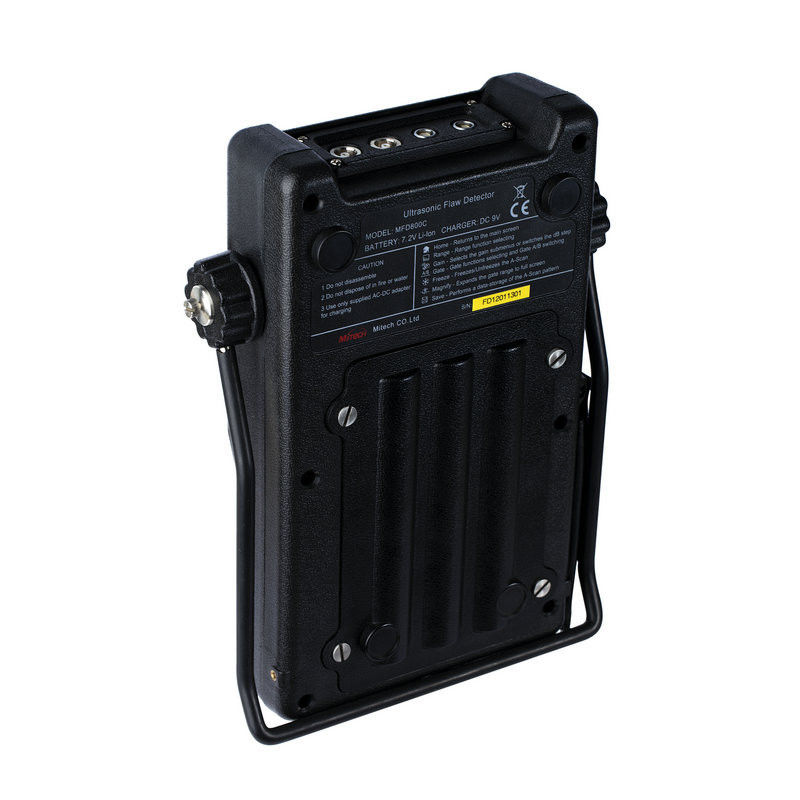

The background color and the wave color can be selectable according to the environment. LCD brightness can be manually set. Continue working over 8 hours with high performance lithium-ion battery module (with large capacity lithium-ion battery option), easy to be dismantled and the battery module can be charged independently offline. It is light and portable, easily to be taken by one hand; easy operation; superior reliability makes it long life.

Applications:

Peak Hold:

Automatically searching the peak wave inside the gate and hold it on the display.

Equivalent diameter calculation: find out the peak echo and calculate its equivalent diameter.

Continuous Record: Record the display continuously and save it to the memory inside the instrument.

Defect Localization: Localize the defect position, including the distance, the depth and its plane projection distance.

Defect Sizing: calculate the defect size

Defect Evaluation: Evaluate the defect by echo envelope.

DAC: Distance Amplitude Correction

AVG: Distance Gain Size curve function

Crack measure: Measure and calculate the crack depth

B-SCAN: Display the cross-section of the test block.

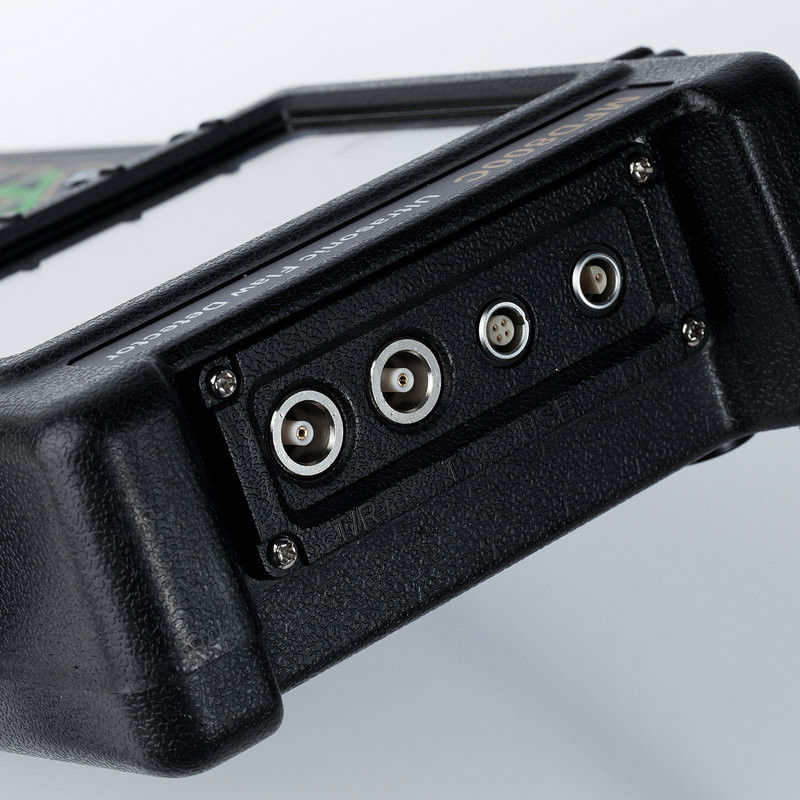

Specifications:

• Channels: 100 channels
• Range: (0 ~ 9999) mm
• Bandwidth: (0.5 ~ 15) MHz
• Material Velocity: (300 ~ 15000) m / s
• Dynamic Range: ≥ 36dB
• Vertical linear error: ≤ 2.5%
• Horizontal linear error: ≤ 0.1%
• Resolution:> 40dB (5P14)
• Sensitivity Leavings: 65dB (flat-bottomed deep hole 200mmФ2)
• Rejection: (0 to 80)% Linear
• Noise level: ≤ 8%
• Power supply: DC 9V; lithium batteries work for 8 hours or more
• Ambient temperature: (-20 ~ 50) ℃
• Relative Humidity: (20 ~ 95)% RH
• Overall dimensions: 263 × 170 × 61 (mm)

Competitive Advantage:

● With English display, master-slave menu, shortcut key and digital swiftly knob, it’s designed with leading technology and can be used very conveniently.

●  With digital color TFT LCD display, it can choose the background colour and wave color acoording to the environment. And the LCD brightness also can be set freely by yourself.

●  Designed with high performance security-guarantee battery module, it’s easy for disassembly and assembly. And it can charge independent with offline. And the large capacity and high performance Lithium-ion battery module make the instrument’ continously working time to above 8 hours,

●  With small size and light weight, the instrument can be hold by one hand. It’s durable in use and lead industry trend.
