PCB Routing

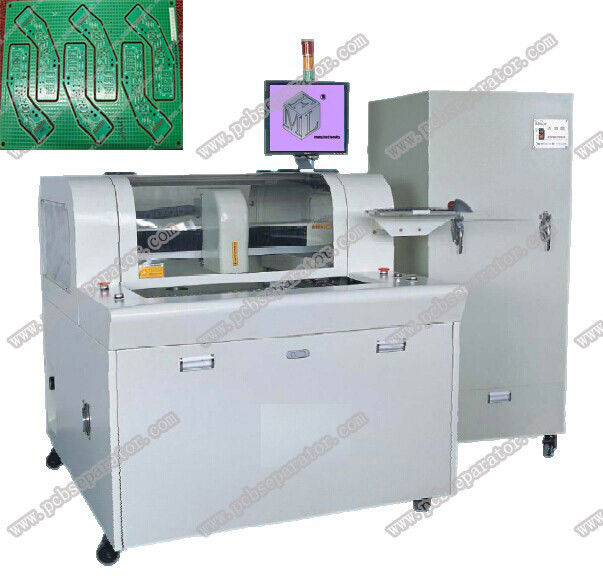

Large Image :  PCB Routing

Product Details:

Place of Origin: Dongguan City, Guangdong province,China
Brand Name: ChuangWei
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number: CW-F01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: seaworthy plywood case,safe, no need to fumigated
Delivery Time: within 7 days after payment receipt.
Payment Terms: T/T ,L/C, Paypal
Supply Ability: 30 sets/year
Detailed Product Description
Dimensions(W*D*H): 1220mm*1450mm*1420mm Weight: 550kgs
Height Offset: 60~110mm Positioning Repeatability: 0.001mm
Axis Working Area(max): 680mm*360mm*50mm Spindle: 50000rpm/min
Protect: Self/wind Cooling Change Cutter: Specialization
Precision Of Cutting: 0.01mm PCB Separator: PCB Separator
High Light:

PCB depaneling

,

PCB separators



PCB Router Equipment with Morning Star spindle and inverter



1. Machine Parts List

I. Hardware



SPINDLE

Morning Star spindle and inverter

CCD

Sony 520 line industrial cameras

LENS

Computar  EX2C

Screw

TBI Precision ground ball screw imports

Guide

HIWIN widening Imported linear guide rail

MOTOR

JiaBao LCF Series

I/O CONTRONL CARD

HFC  PCI-9074

DRIVER CONTRONL CARD

HFC  PCI-9074

I/O CARD

PCI-9074-64pcs/-38pcs

Static cleanup

STATIC-ST401A Series

Computer

RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G)

Machine interface

AOC LCD17",Logitech mouse

2. software



Control system

Windows XP Professional  (Service3,v.3244)

Operation GUI

Chinese Windows XP

Program edit

Inline

Vision system

CCD AOTU offset

Control system

F 1.0.2 version



2.Performance Parameters

Overall



Dimensions(W*D*H)

1220mm*1450mm*1420mm

Weight

550KG

Height offset

60~110mm

Manipulator



Motor type

JiaBao series

Positioning repeatability

0.001mm

Axis working area(max)

680mm*360mm*50mm

Work station



PCB fixation

standard,specialization

PCB loading/unloading

manual

PCB size (max)

322mm*322mm

PCB thick (max)

5mm

Fixturing



Rigidity fixturing

standard

Fixturing fixation

machinery

Spindle Motor



Power

400W

Spindle

50000rpm/min

Protect

                                 self/wind cooling

Change cutter

Specialization

Routing capability



Cutting speed(max.)

100mm/s

Driving speed(max.)

3000mm/s

Precision of cutting

0.01mm

Vacuum System



Vacuum power

2.2KW AC 380V

Vacuum

plumb

Utilities



Power

2.2KW AC380V

Air supply

2~5KG/cm2

Programming



Program edit

Inline

Function edit

Line,arc,circula,U-curve

Program storage

HDD

Vision system

SONE  colour CCD

milling cutter offset

AUTO

Vacuum setup

AUTO

Operation Monitors



Iindicator

Iindicator Machine state

tool check

Automatic detection tool life, the use of time testing

Motor protect

Have overheating, overload, low voltage protection function

motor over loading check

Have Overload, the line is normal, low voltage protection function

Tool usable time

Automatic detection tool life,

Data statistic

Separate board model, separating count, diverse counting methods

Error record

Software automatically records all alarms memory of machines

III. Accuracy



Axis precision

0.001mm

Cutting precision

0.1mm

IV. Safety



Working area protect

With four sealed protection

Door sensor

Front and rear safety door micro-switch sensor (optional)

Exigency stop button




 3.Function  Description

1) X10 zoom-in image makes programming easier&increase the accuracy of point setting

2) Two sliding table provides simultaneously in-and-out movement to reduce the tack time for better productivity.

3) AUTO MARK offset system.CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting

4) Routng bit automatically lift and shift to next programmed point then cutting to extend the life time of routing bit.

5) Safety door industry design

6) CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting



4. Application:
